Connector Location Index
DESCRIPTIONIf a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.
The abbreviation
T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.
The abbreviation
N/S means Not Shown in the illustrations.

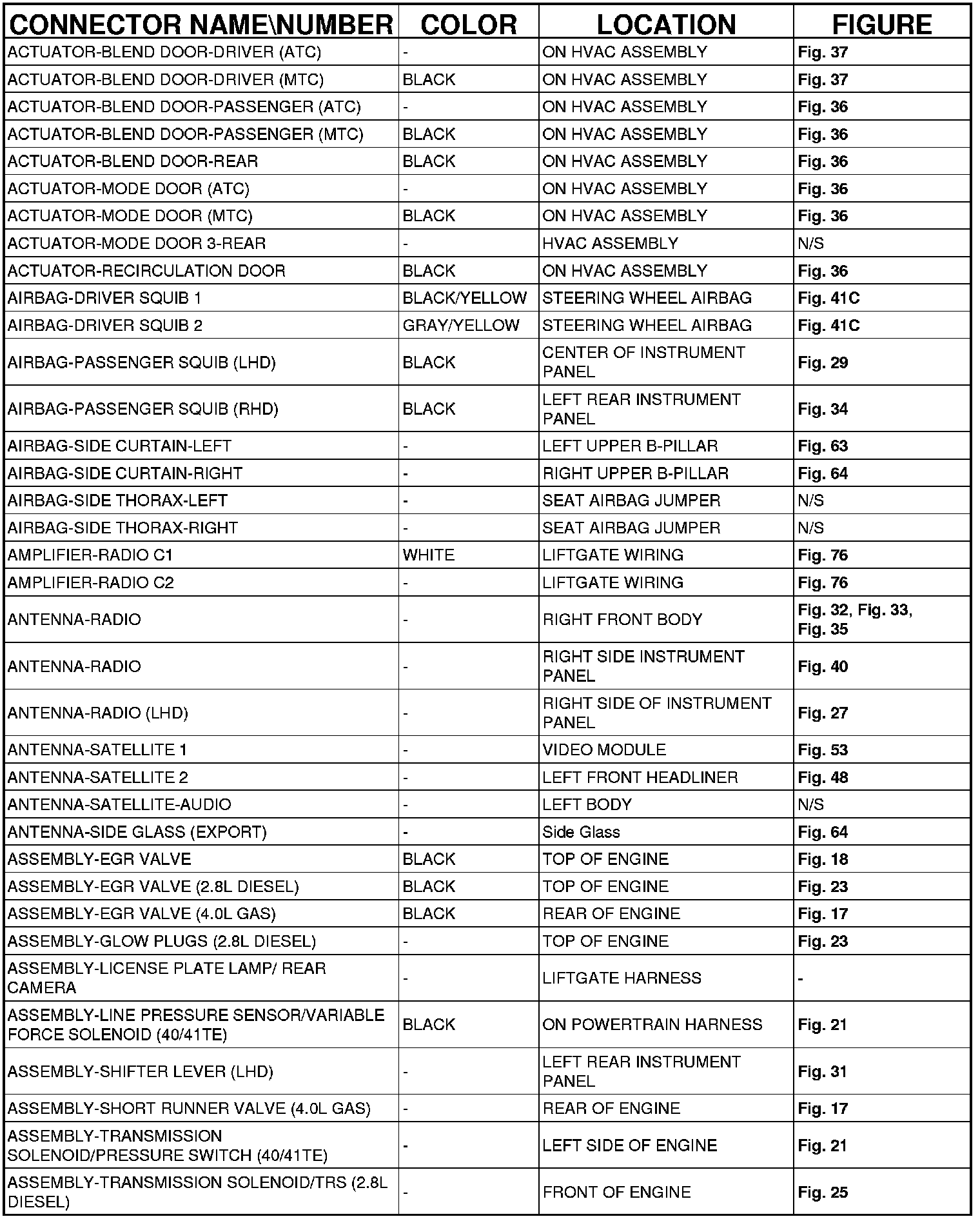

CONNECTORSAc-As:

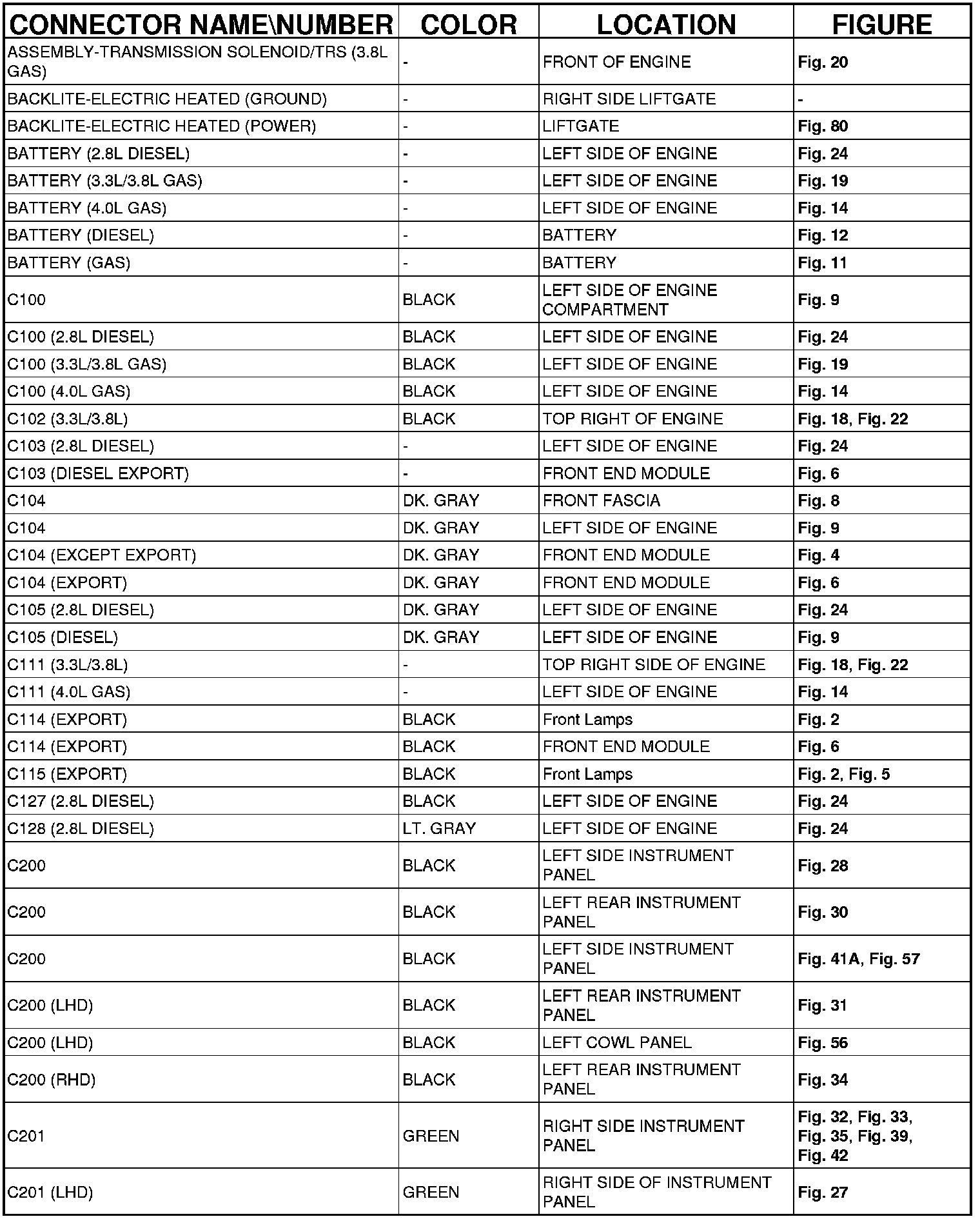

As-C201:

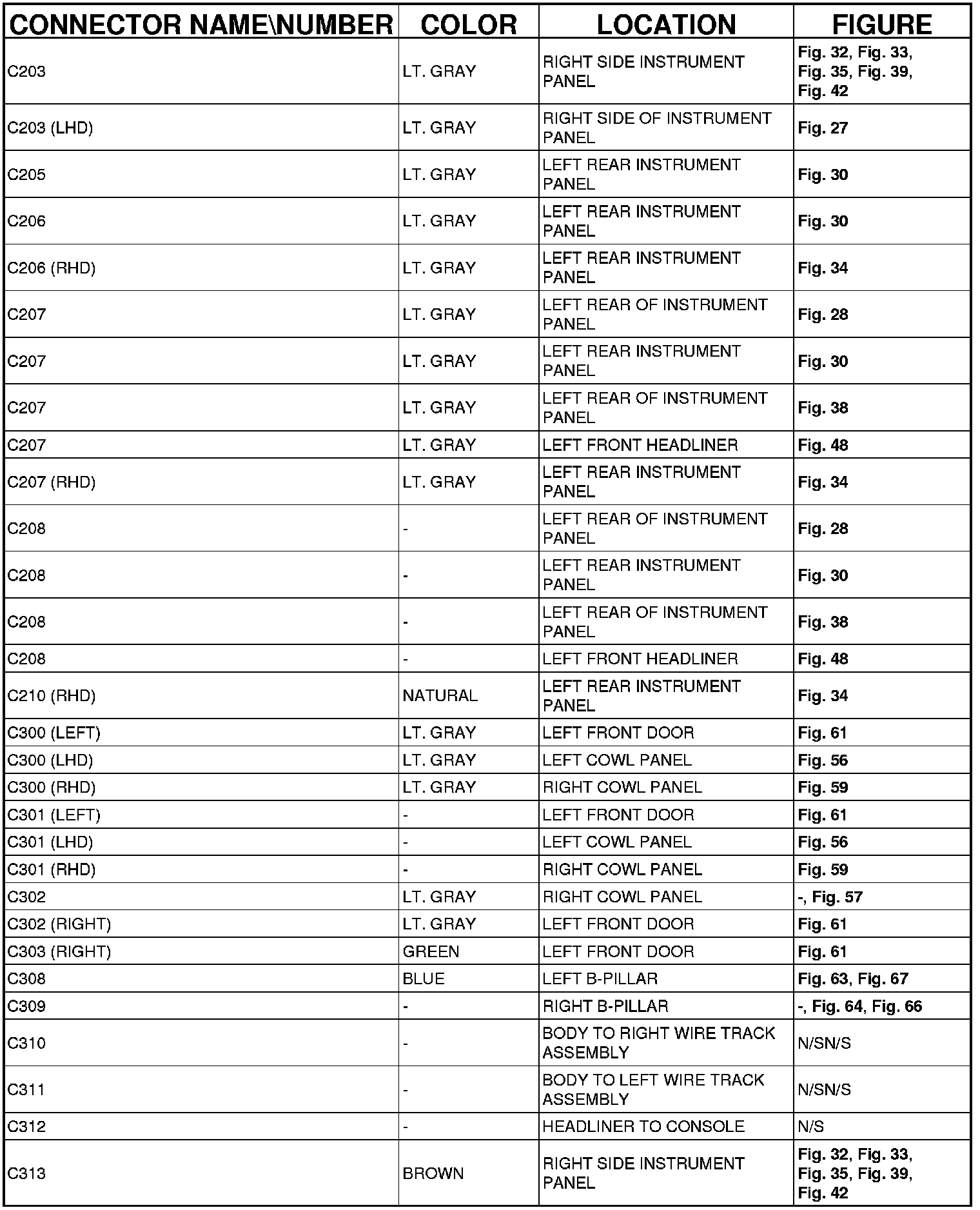

C203-C313:

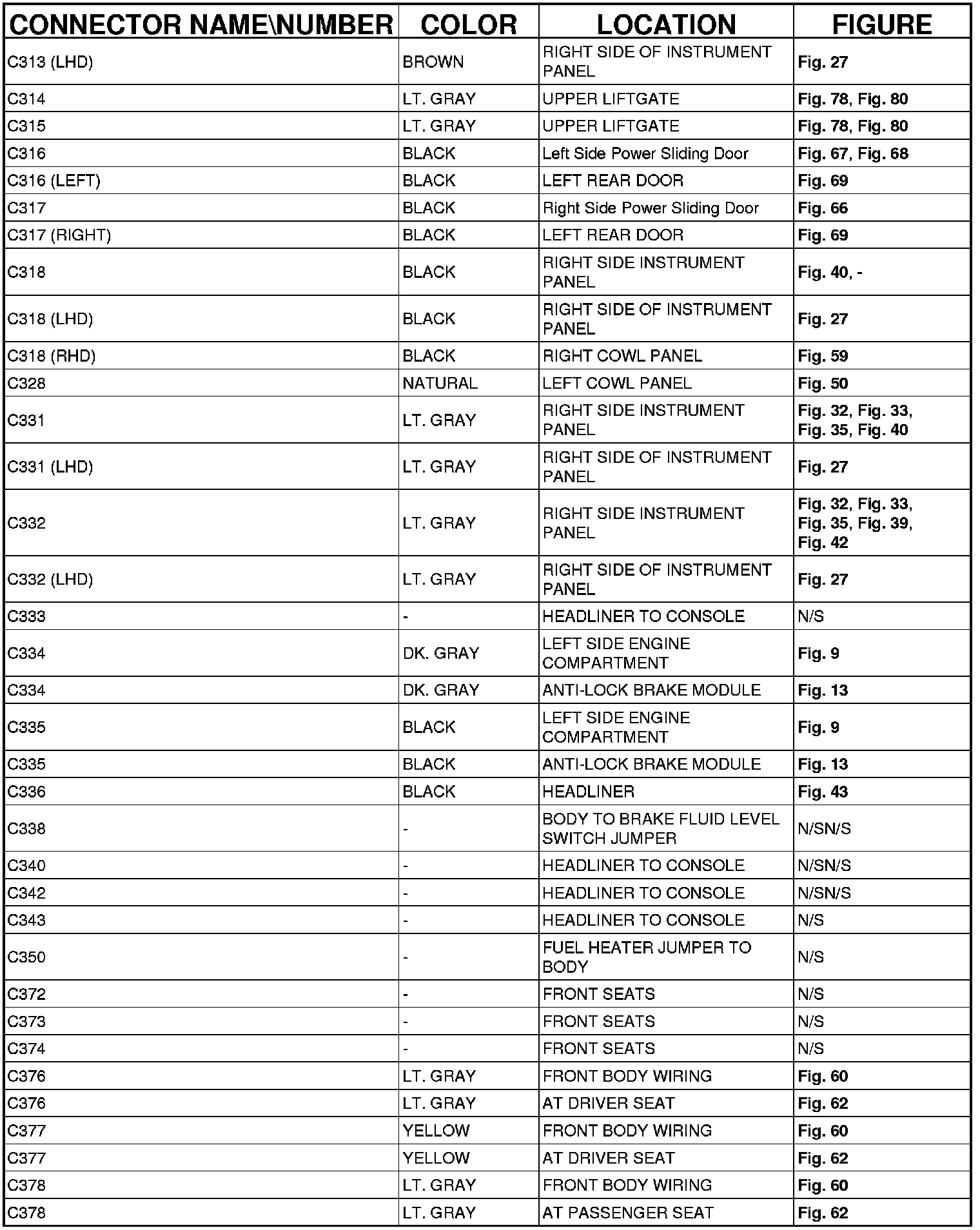

C313-C378:

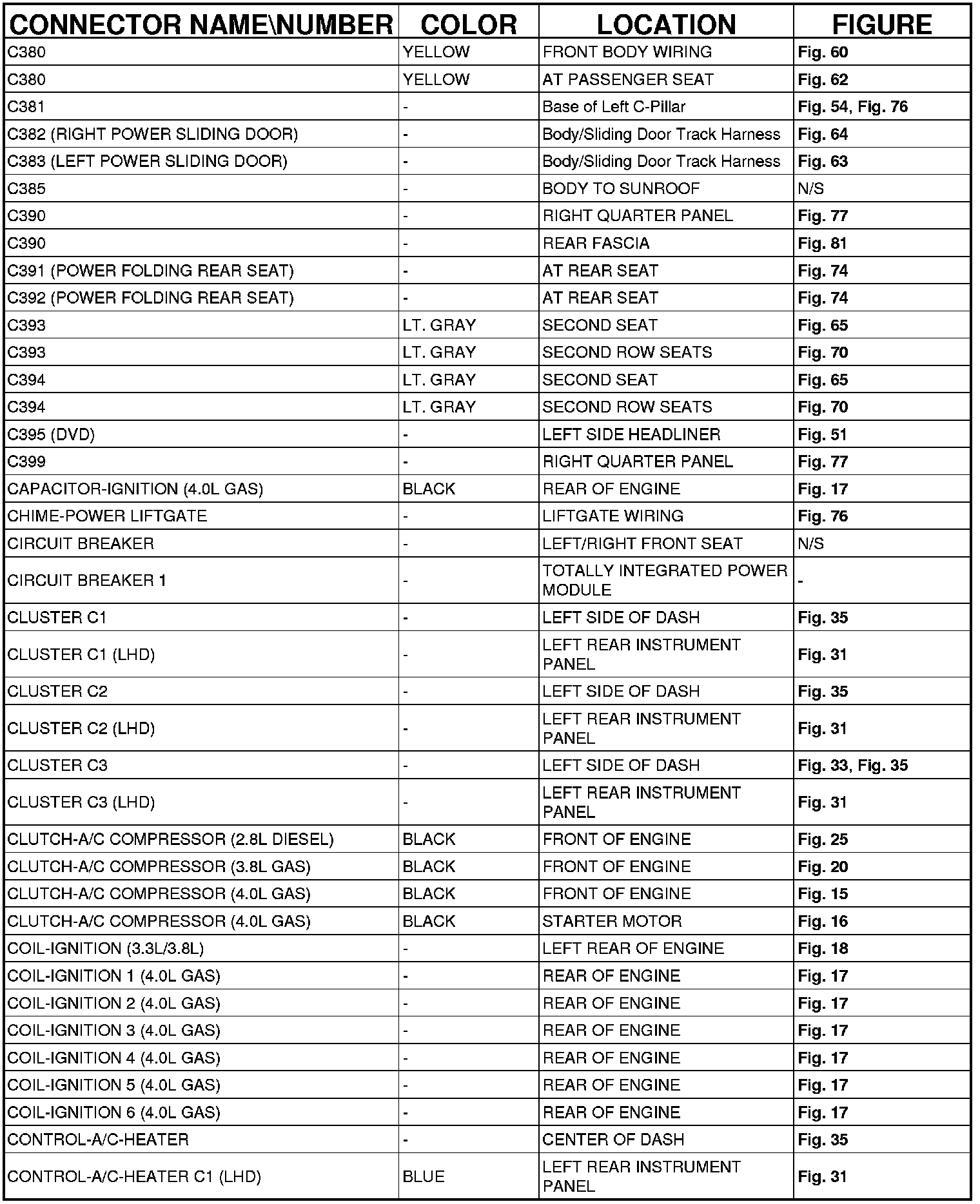

C380-Co:

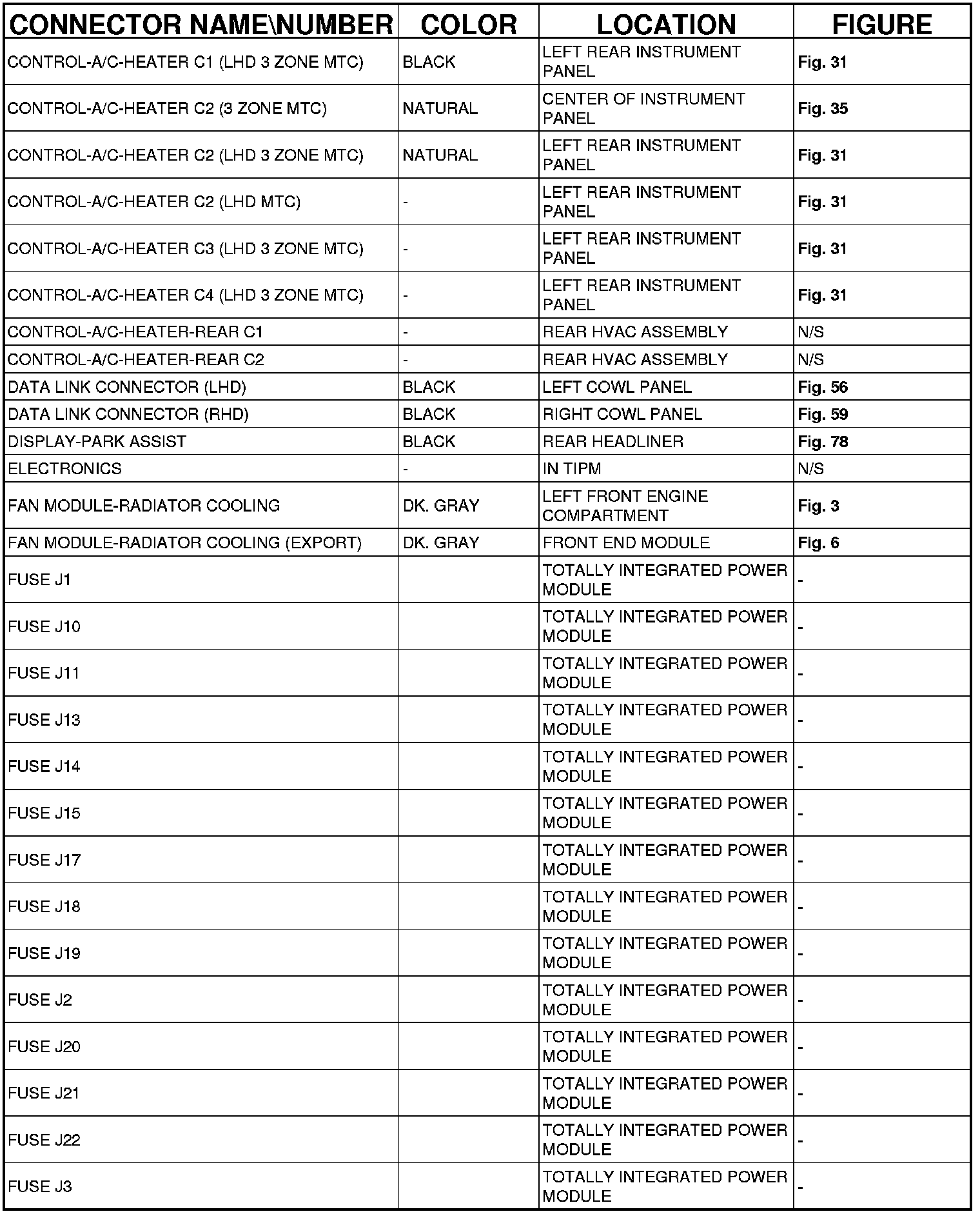

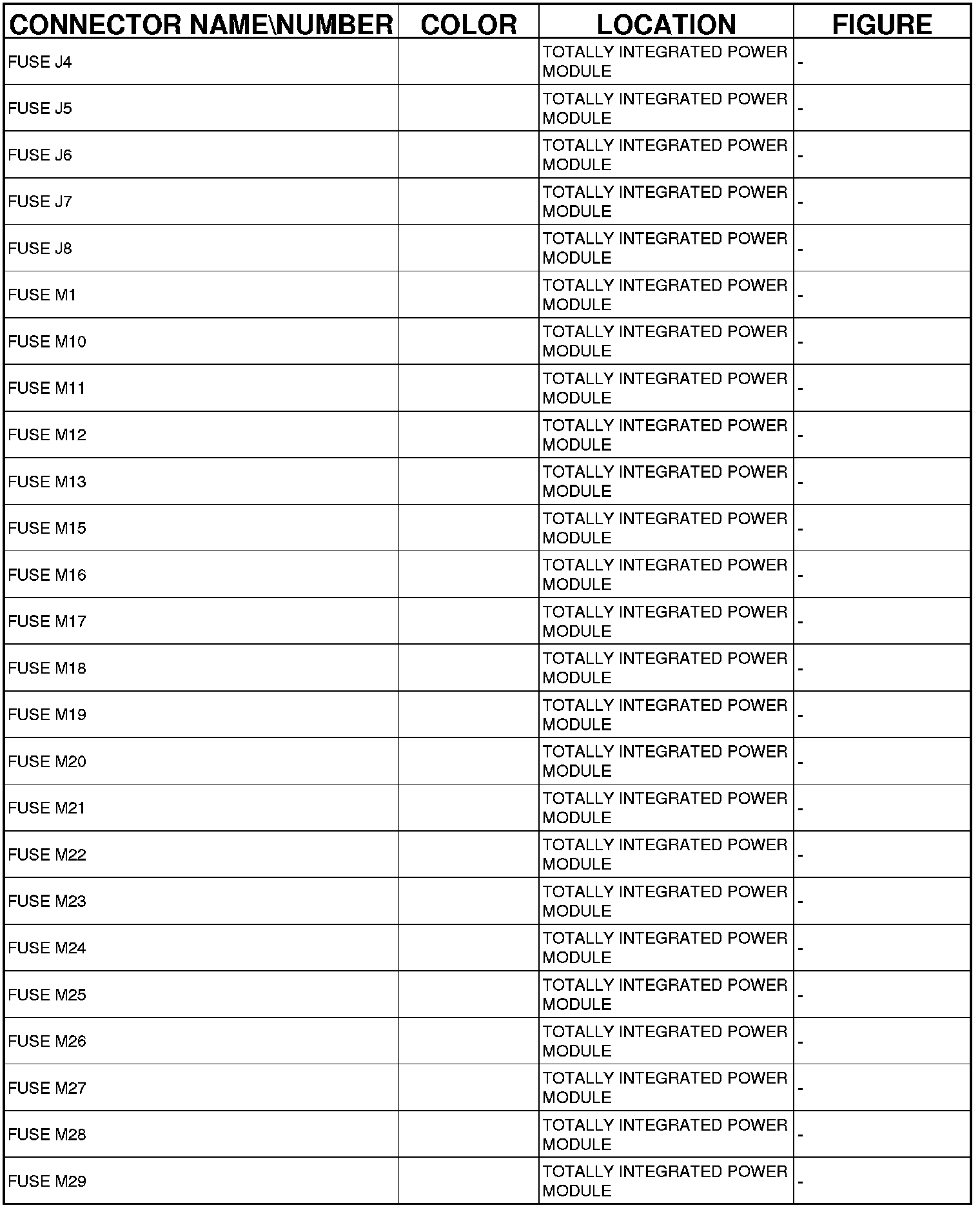

Co-Fu:

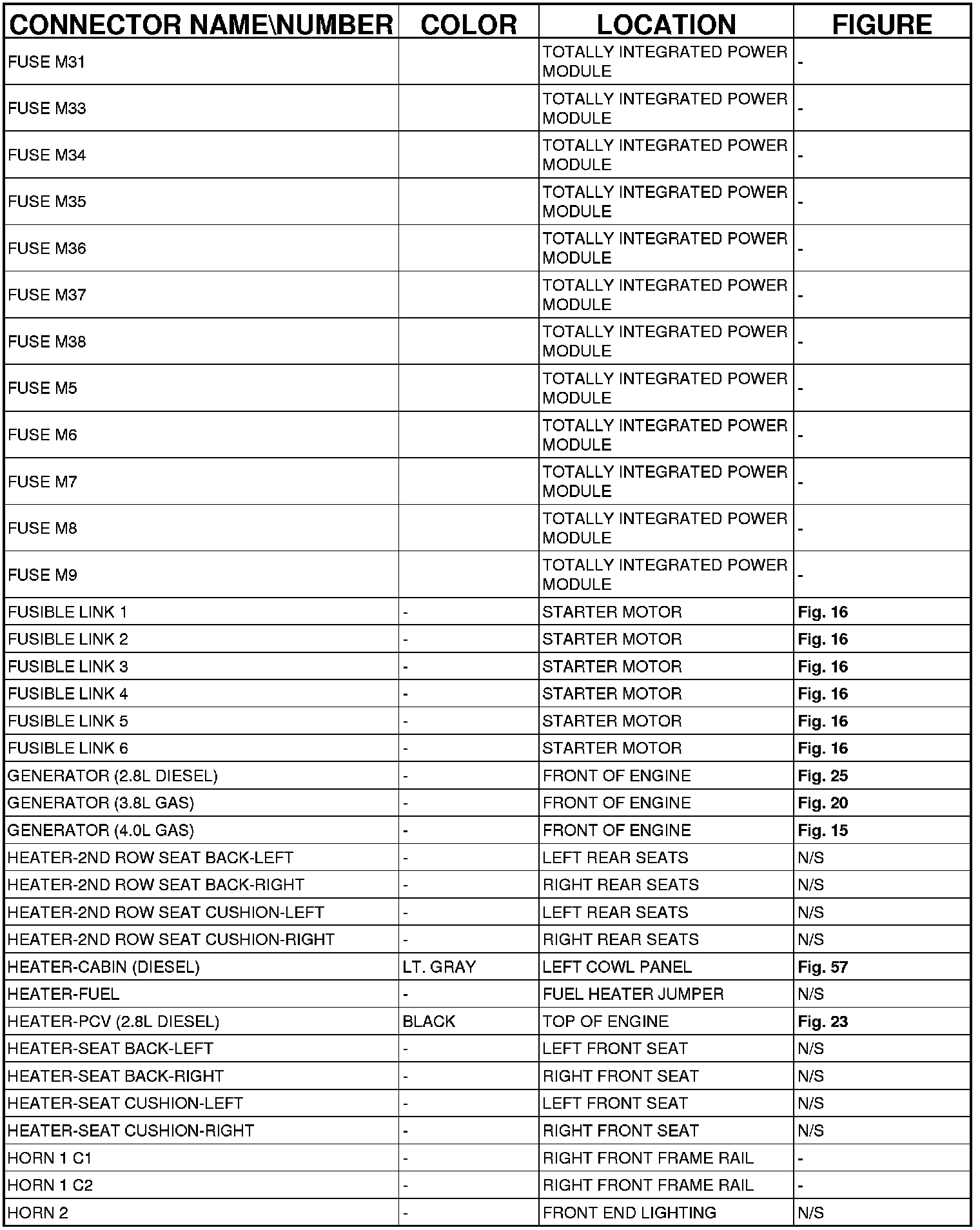

Fu-Fu:
Fu-Ho:

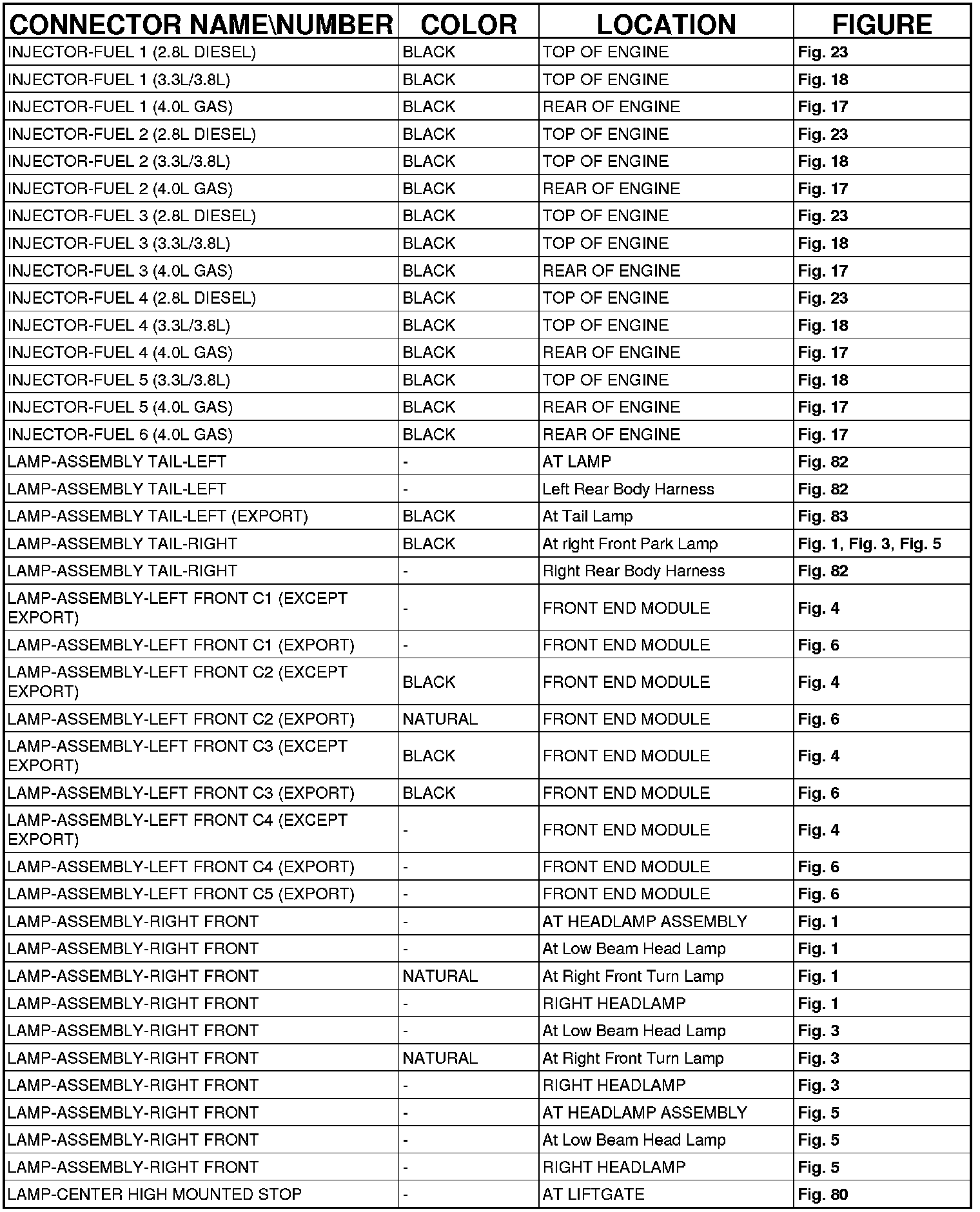

In-La:

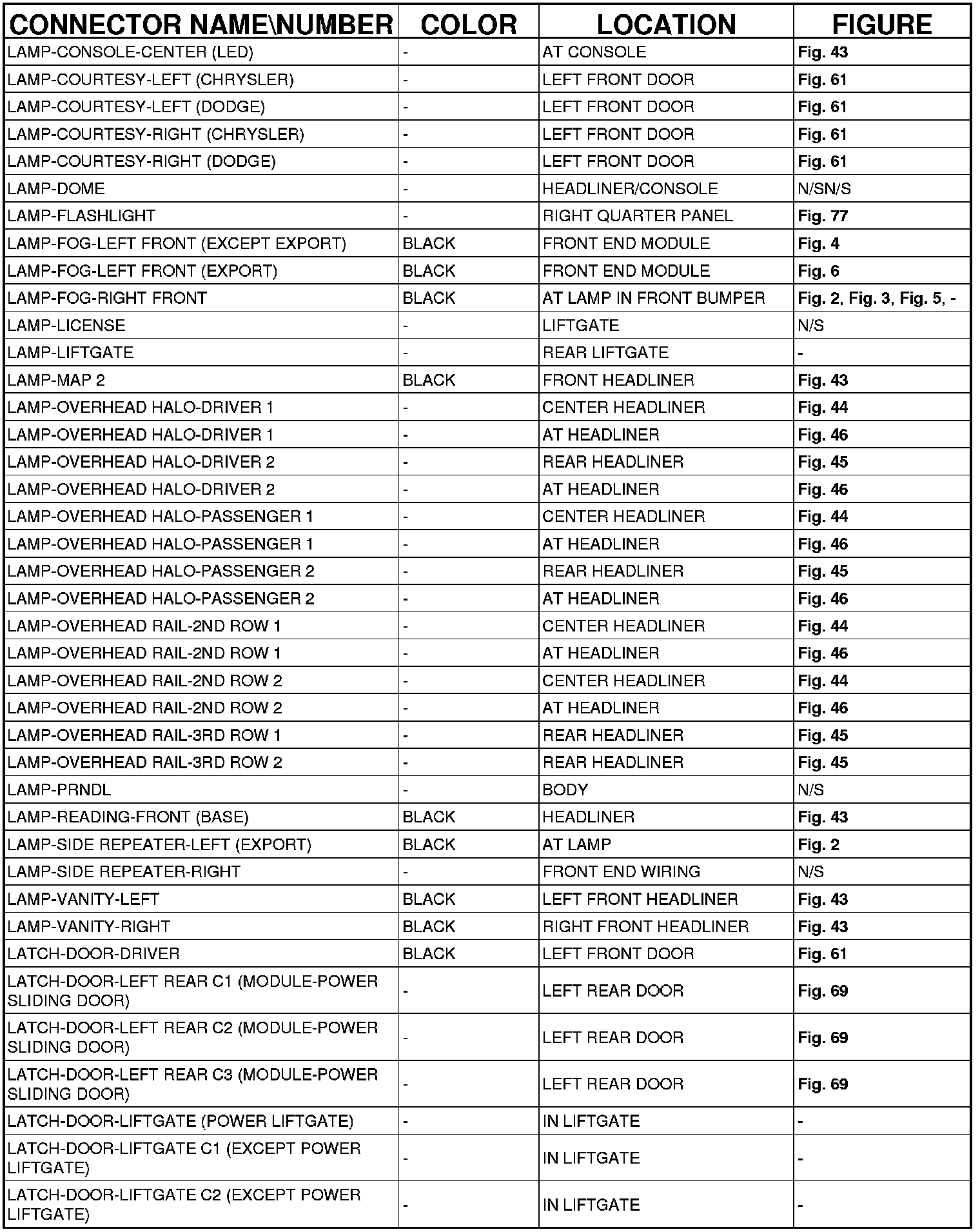

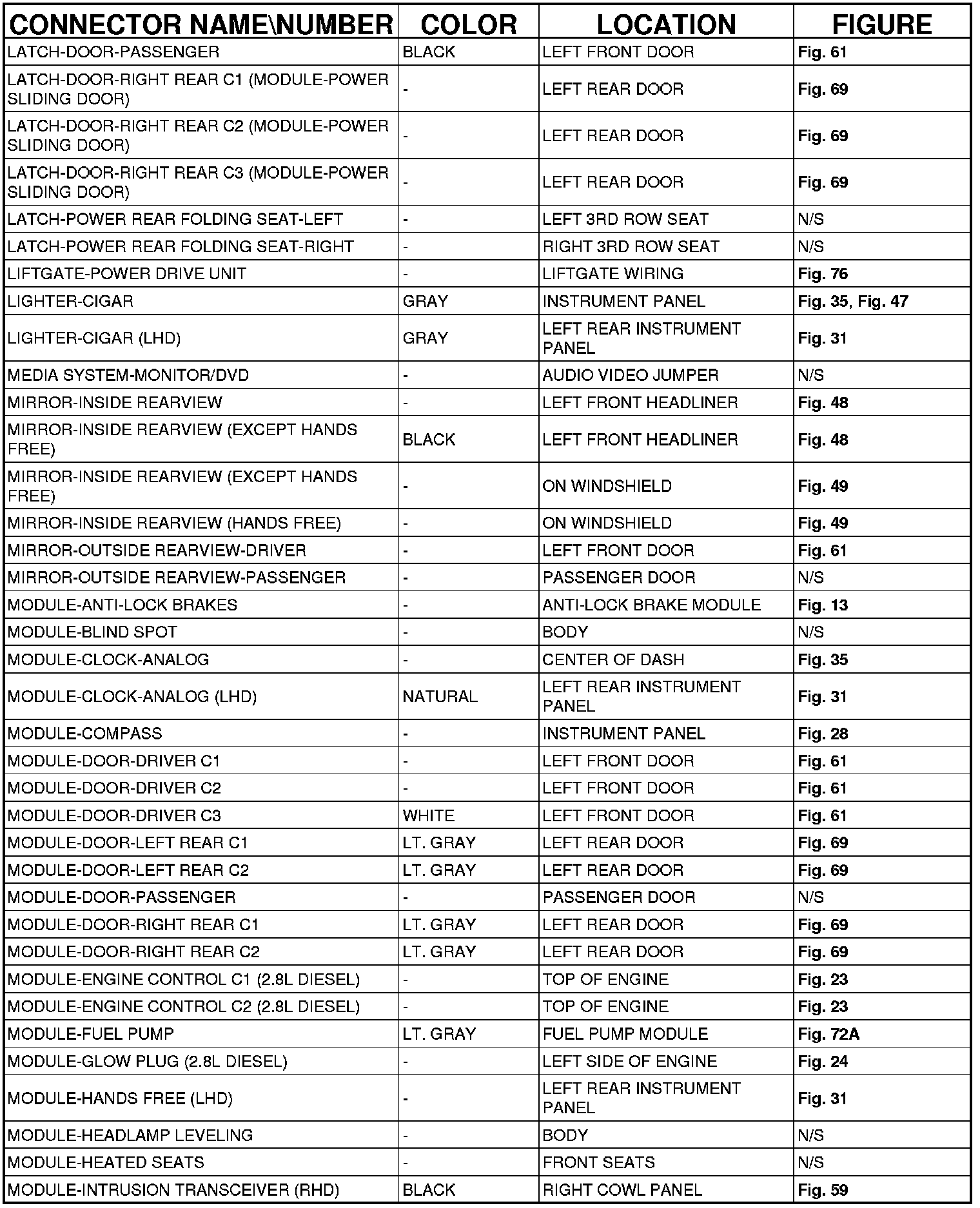

La-La:
La-Mo:

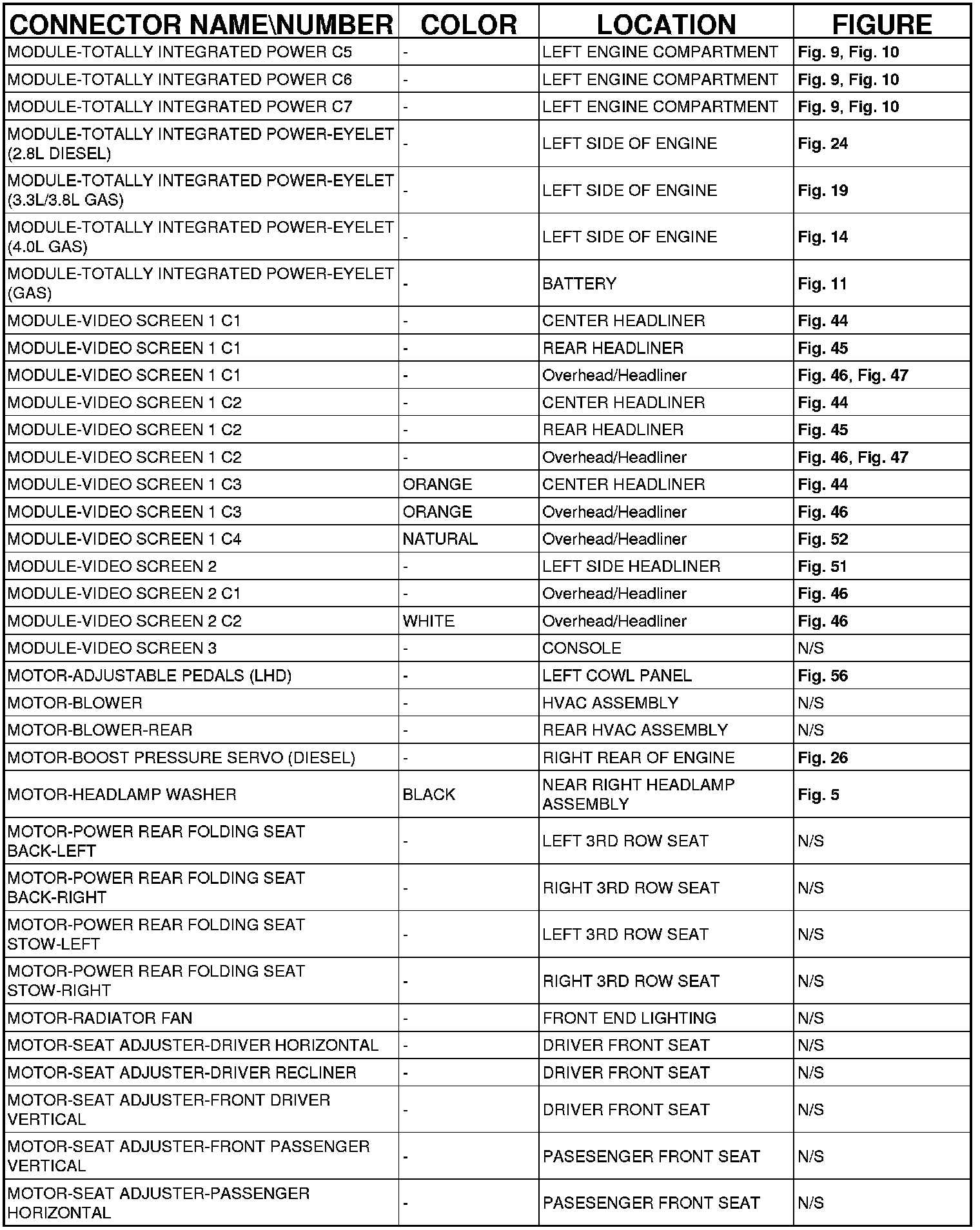

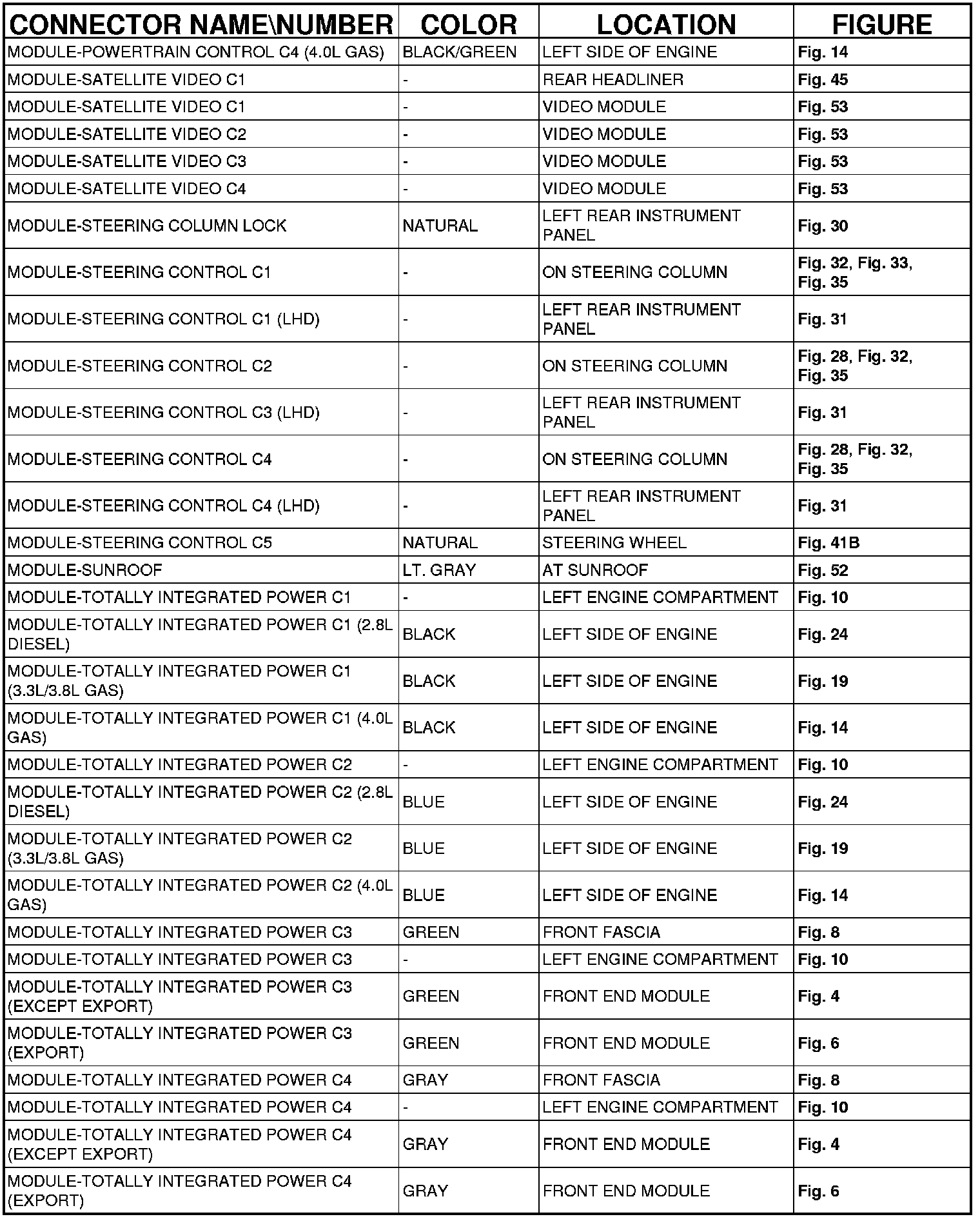

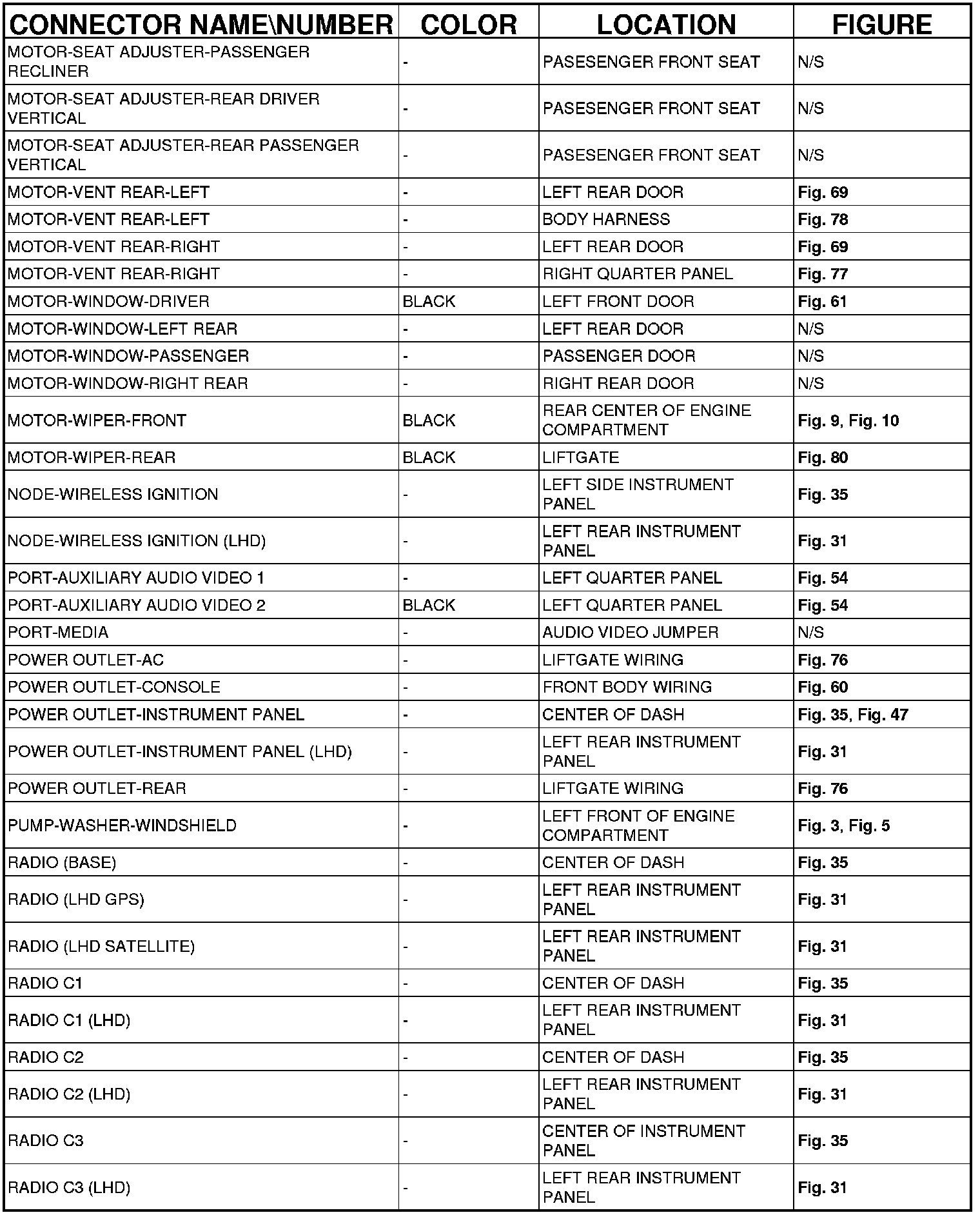

Mo-Mo:
Mo-Mo:

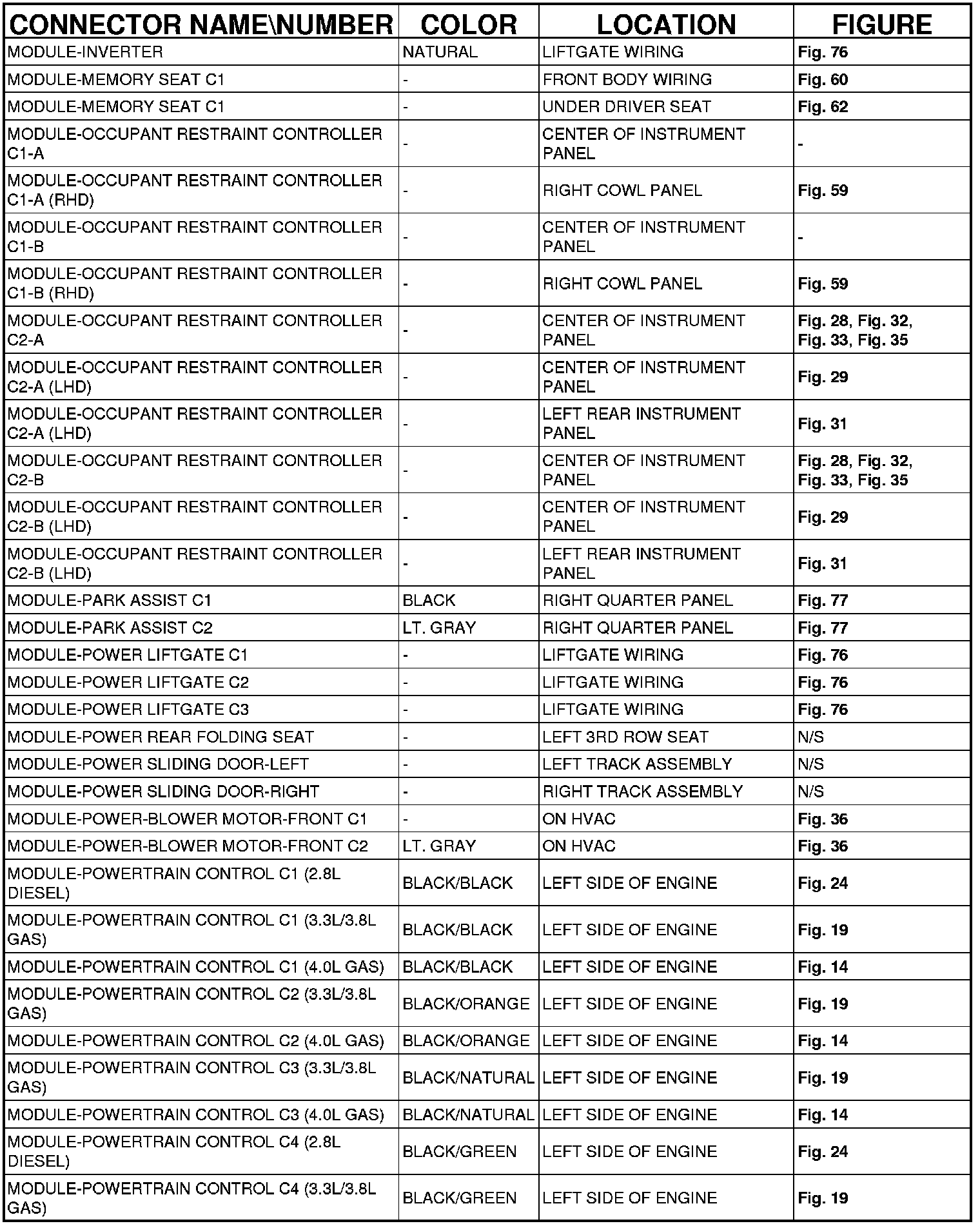

Mo-Mo:
Mo-Ra:

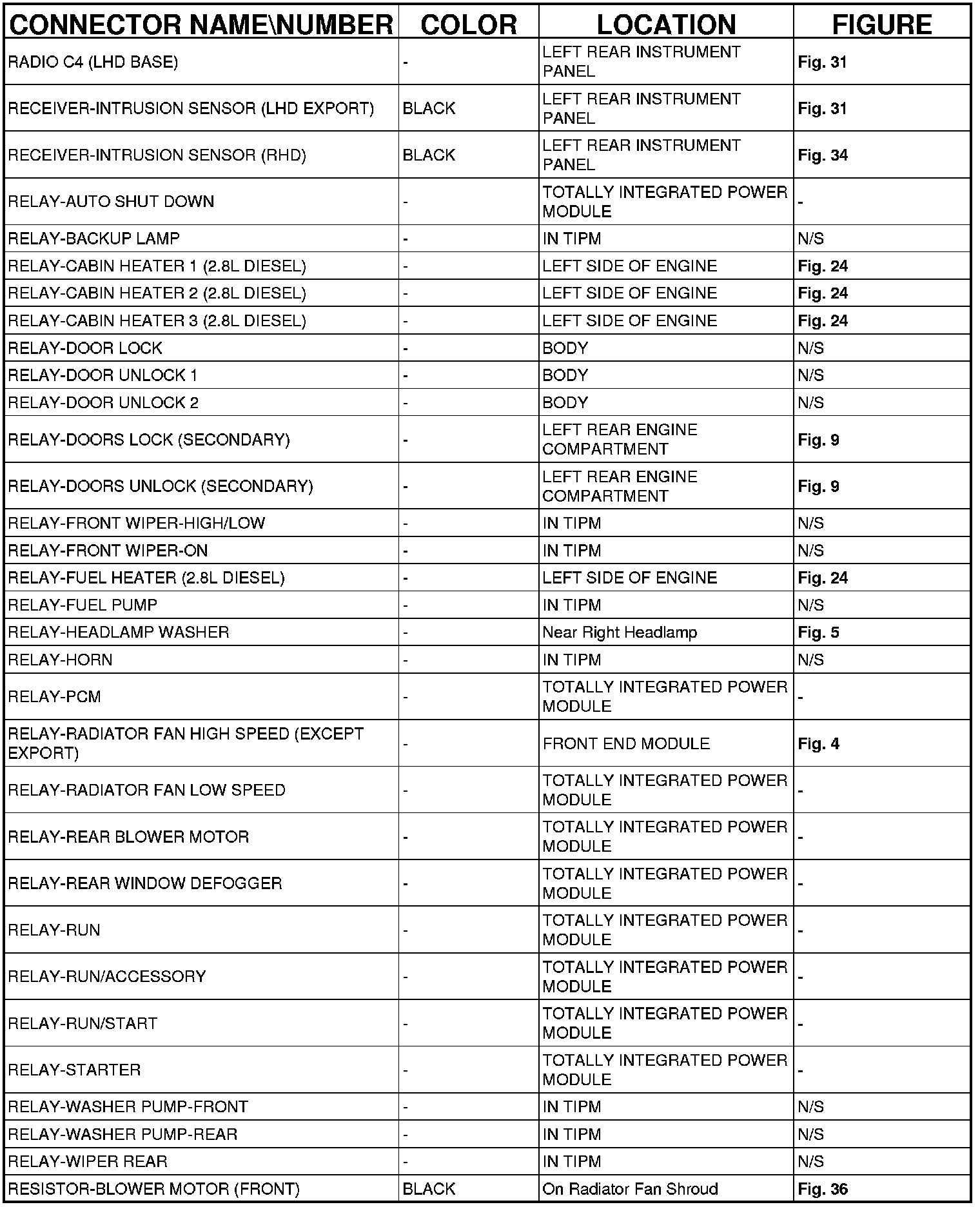

Ra-Re:

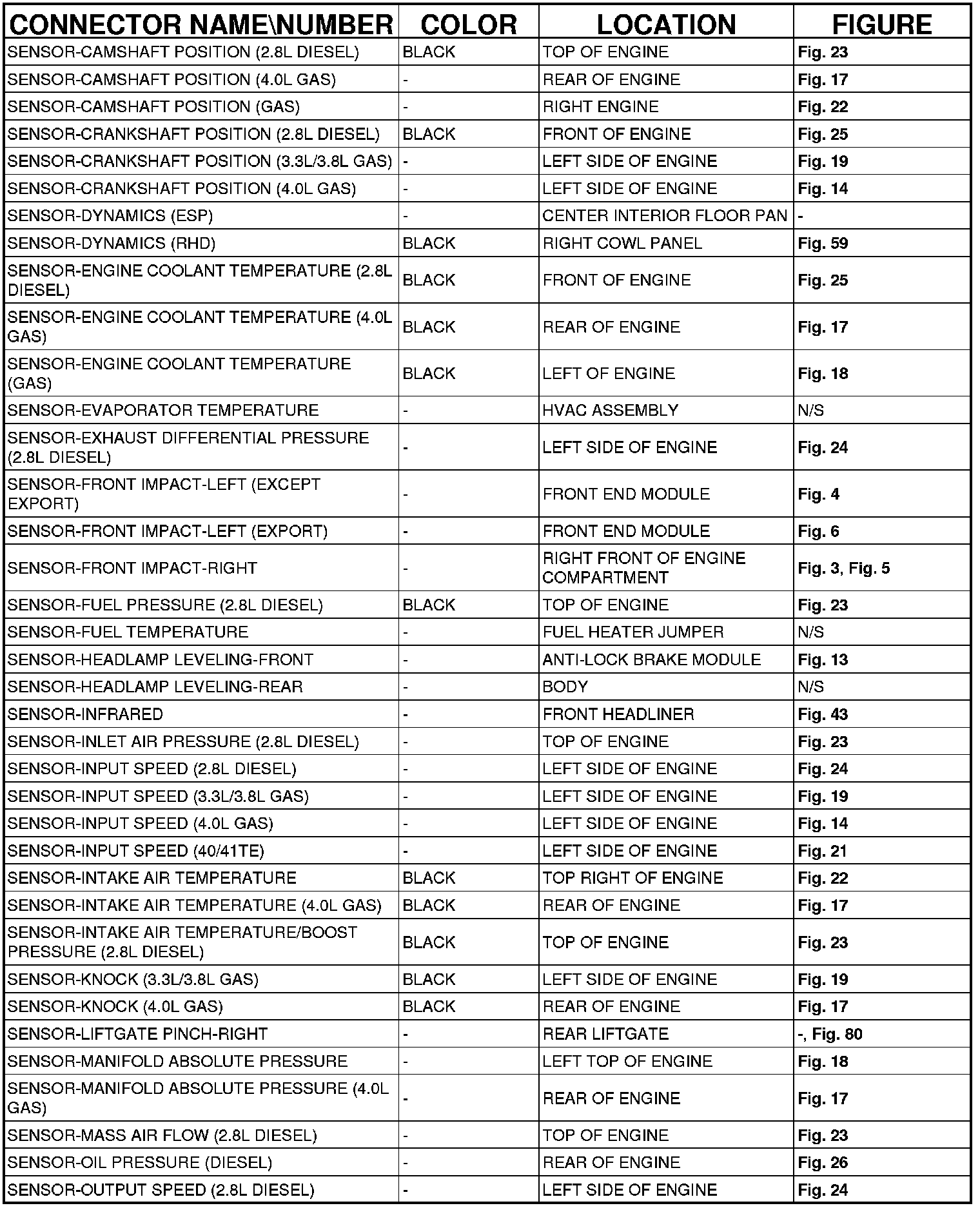

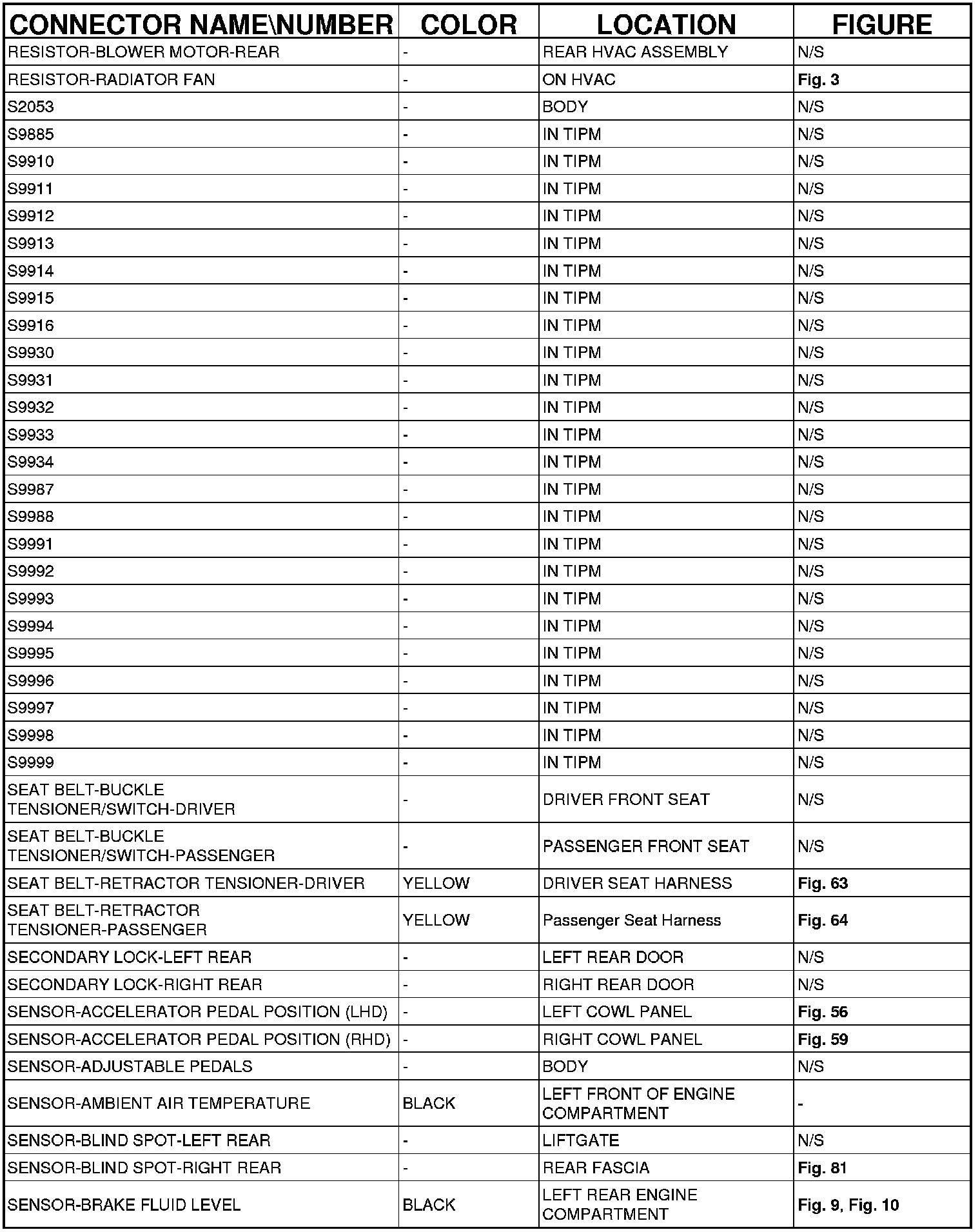

Re-Se:

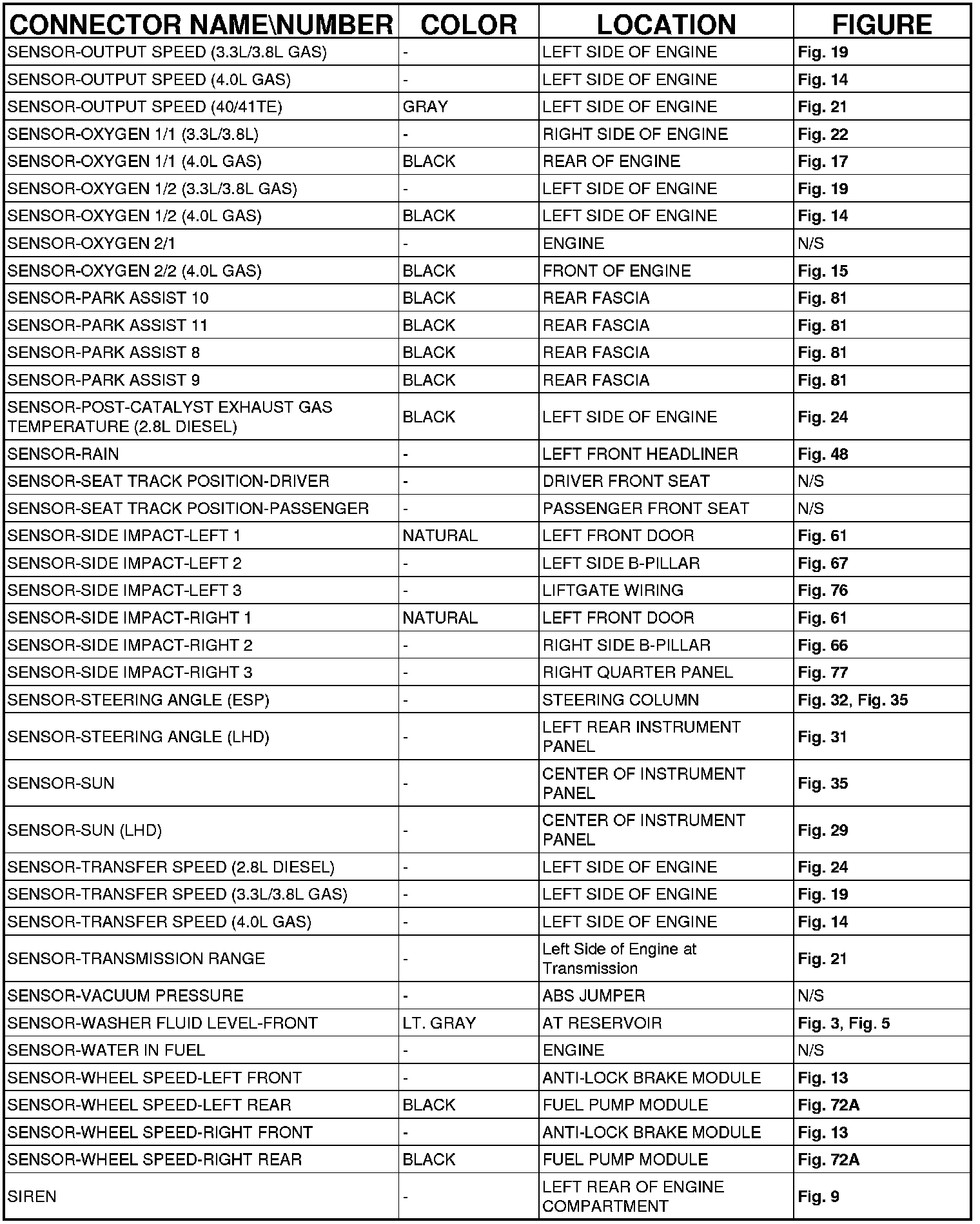

Se-Se:

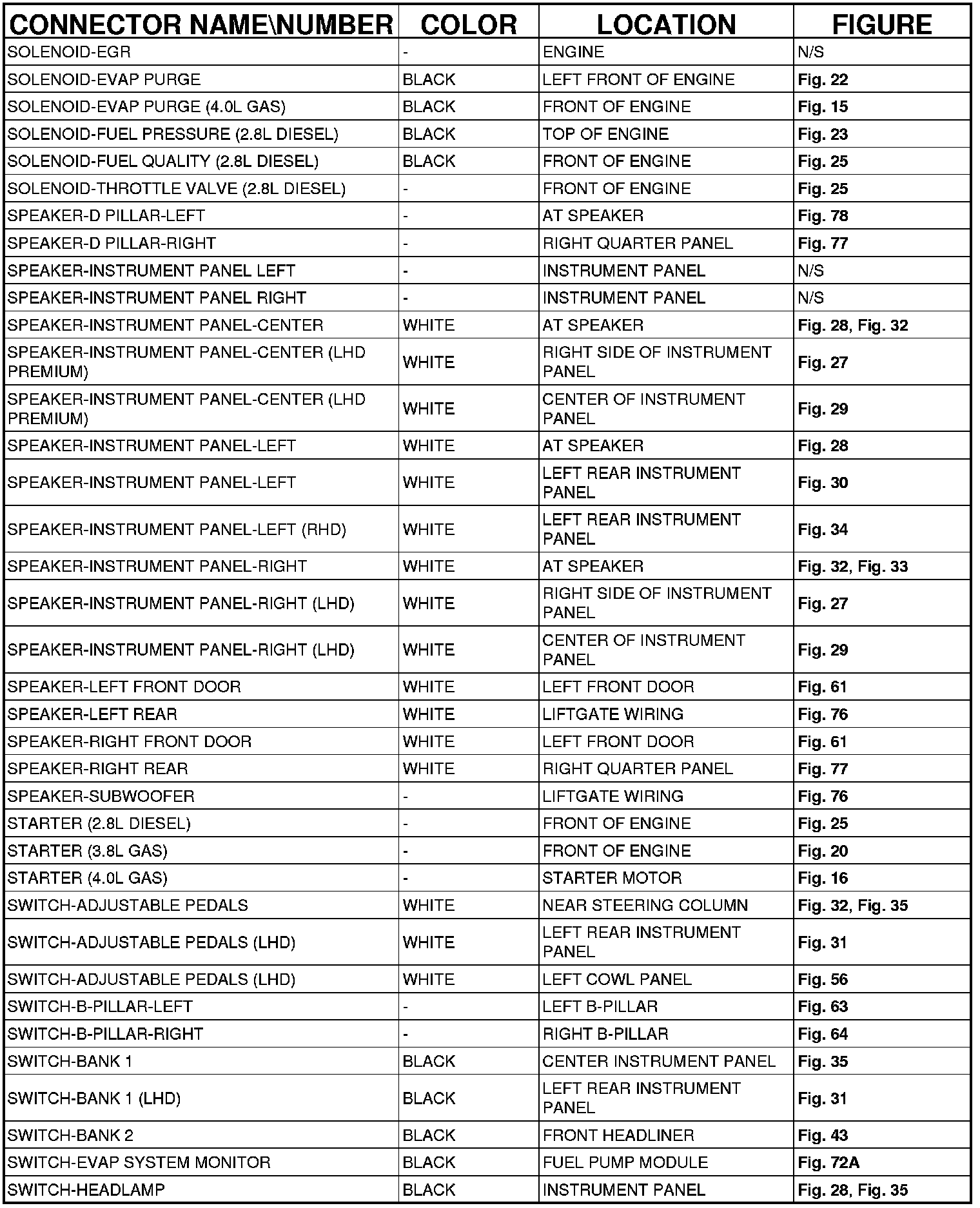

Se-Si:
So-Sw:

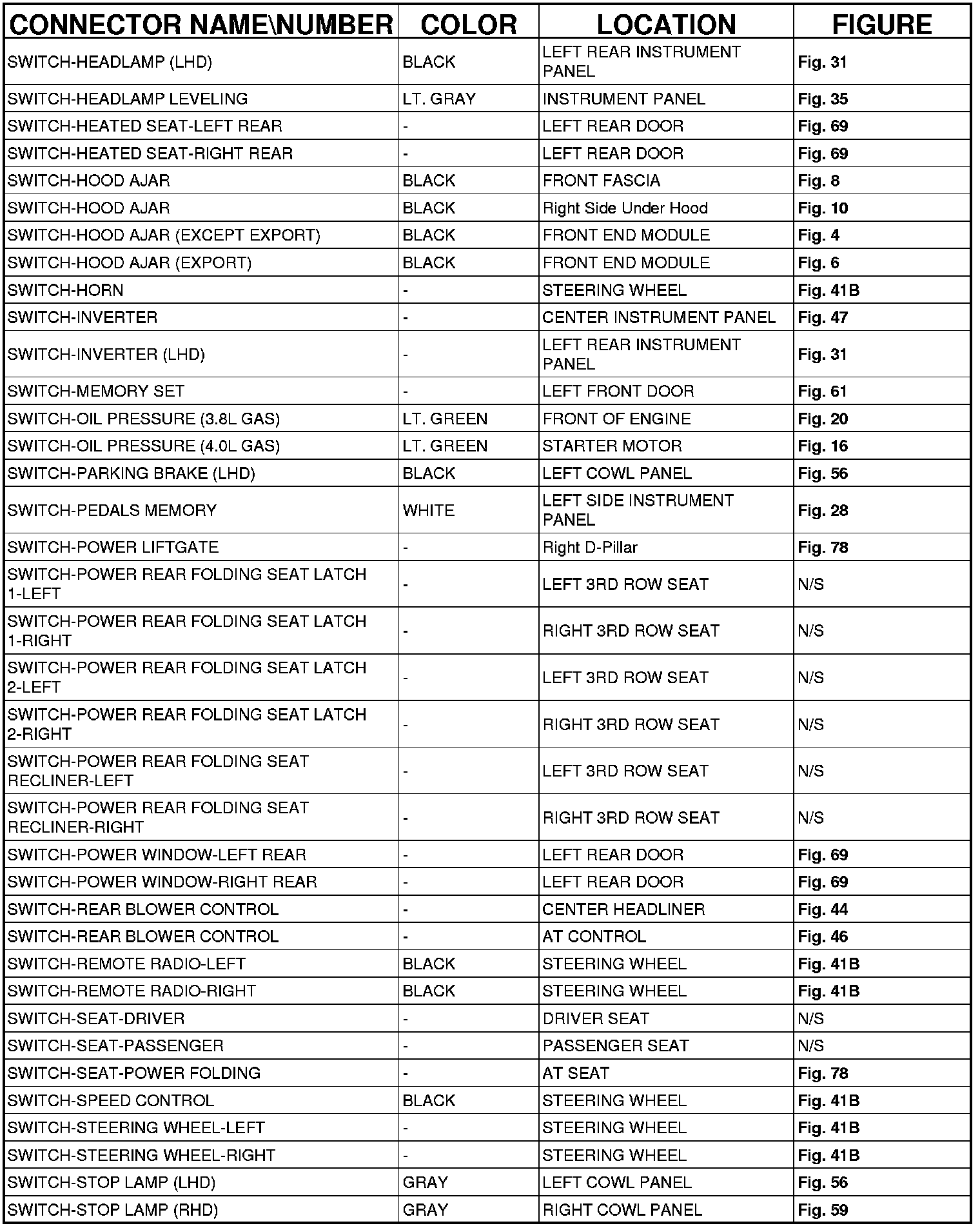

Sw-Sw:

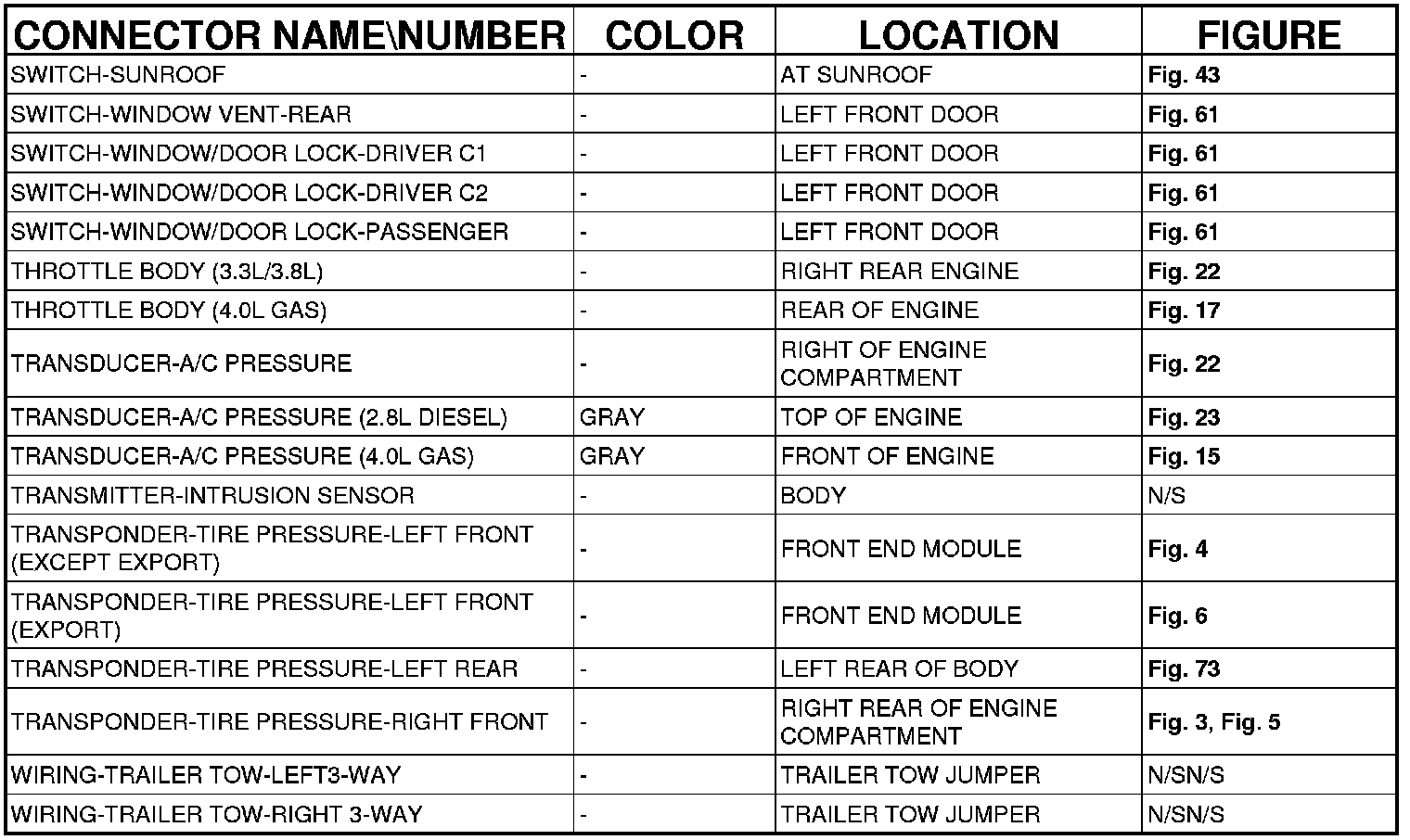

Sw-Wi:
