Spring Link






REMOVAL

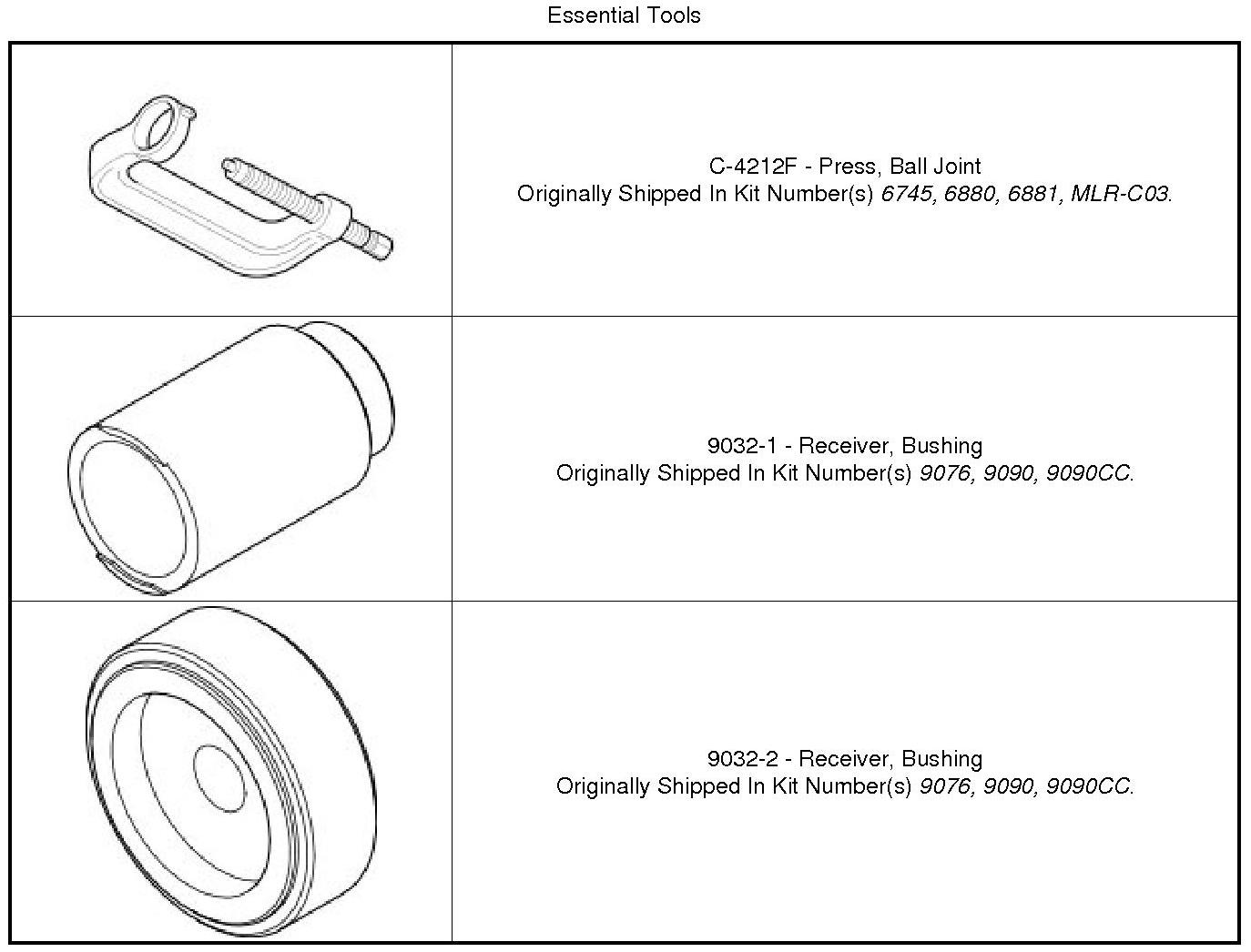

Special Tools:






1. Raise and support vehicle. Maintenance
2. Access and remove rear spring on side of repair. Rear Suspension Coil Spring(s) - Removal





3. Export Only - If servicing right side bushing, disconnect headlamp leveling sensor (1) link at spring link (3).





4. Remove bolt and nut (1) fastening spring link (4) to crossmember.
5. Position spring link downward, away from bushing in crossmember.










NOTE: Prior to using Press (3), Special Tool C-4212F, lubricate screw-drive threads to provide ease of use and promote tool longevity.

6. Assemble tools over bushing as shown (See list). Ensure Receiver, Special Tool 9032-1, sets against crossmember and not welds.
- (2) Remover 9032-2
- (3) Press C-4212F
- (4) Receiver 9032-1

7. Tighten Press screw-drive, pressing bushing out of crossmember.
