Power Seat Switch - Removal






REMOVAL

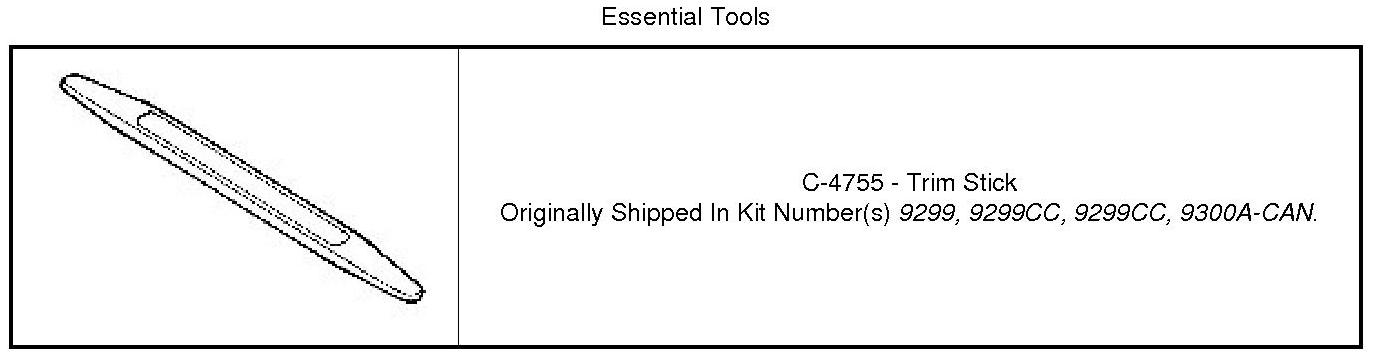

Special Tools:






WARNING: Disable the airbag system before attempting any front seat diagnosis or service. Disconnect and isolate the negative battery (ground) cable and wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE: Driver seat shown. Passenger seat similar.





1. Position the seat being serviced all the way forward.
2. Disconnect and isolate the negative battery cable.

NOTE: It is not necessary to remove the seat belt anchor from the seat when servicing the power seat switch.

3. Remove the outboard seat cushion side trim panel (5) from the sea.
4. Using Trim Stick C-4755 or equivalent, carefully disengage the four tabs (2 and 4) that secure the power seat switch (1) to the seat cushion side trim panel.
5. Disconnect the electric connector (3) from the power seat switch and remove the switch.
