Rear

REAR





1. Disconnect and isolate the battery negative cable.
2. Raise and support the vehicle.

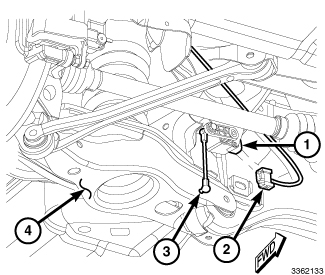

3. Locate the rear axle sensor (1) on a bracket between the rear suspension cradle and the rear suspension lower control arm (4).
4. Disconnect the underbody wire harness connector (2) from the rear axle sensor connector receptacle.
5. Carefully unsnap the lower end of the rear axle sensor link from the ball stud (3) on the forward-facing side of the rear suspension lower control arm.
6. Remove the screw that secures the sensor to the bracket on the rear suspension cradle.
7. Remove the rear axle sensor, bracket and link from the vehicle as a unit.
