Front

FRONT

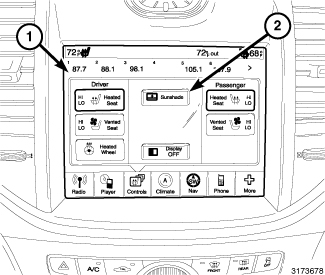

The front switch (2) for the optional rear window sunshade is located in the Integrated Center Stack (ICS) screen module (also known as the U-Connect Touch (TM) screen module) (1), at the center of the instrument panel. The power rear window sunshade system allows the driver, and front seat passenger to raise and lower the rear sunshade for improved passenger comfort. Pressing a sunshade switch once will either raise or lower the shade, depending on position. Pressing the switch a second time will reverse the sunshade motor and return the shade to its original position.
