Rear Window Power Sunshade Switch - Removal

REMOVAL - REAR

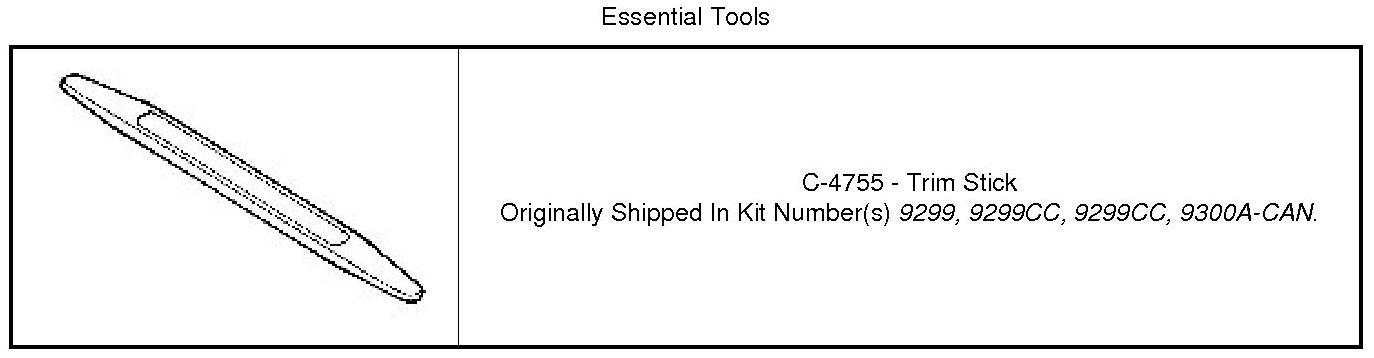

Special Tools:










1. Disconnect and isolate the negative battery cable.
2. Remove the trim panel (2) from the back of the floor console using Trim Stick C-4755 or equivalent.
3. Disconnect the electrical connectors and place the trim panel on a workbench.
4. Using Trim Stick C-4755 or equivalent, gently disengage the two retaining tabs (3) that secure sunshade switch (1) to the rear trim panel.
5. Remove the sunshade switch from the floor console rear trim panel.
