Windshield Washer Hose: Service and Repair

STANDARD PROCEDURE - DISCONNECTING WASHER PLUMBING QUICK-CONNECT FITTINGS

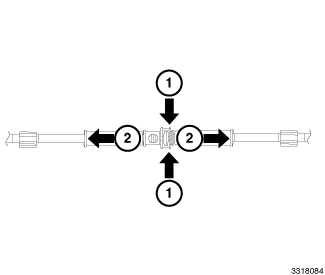

A molded plastic quick-connect fitting joins the front and rear sections of the washer plumbing. To disconnect this fitting:

1.
Squeeze the two solid sides (not the open sides) of the female half of the quick-connect fitting at the outer edge.

2.
While still squeezing the female half of the fitting, pull the two sections of the washer plumbing away from each other.
