Coolant Crossover - Installation

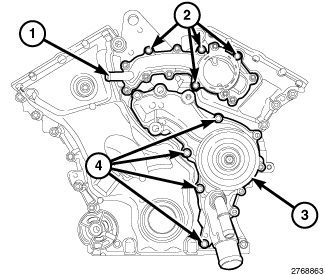

3.6L COOLANT CROSSOVER

1. Clean gasket sealing surfaces.

2. Install new gasket onto the coolant crossover.

NOTE:
The shorter M6 mounting bolts (2), bolt directly to the engine timing cover.

3. Hand tighten the M6 mounting bolts. Tighten the bolts in a criss cross pattern to 12 Nm (106 in. lbs.).

4. Install the heater supply hose to the coolant crossover (1).

5. Install the thermostat housing Engine Coolant Thermostat - Installation.
