Powertrain Control Module - Removal
GAS 1.
Disconnect and isolate the negative battery cable.
2.
Raise and support the vehicle
Service and Repair.
3.

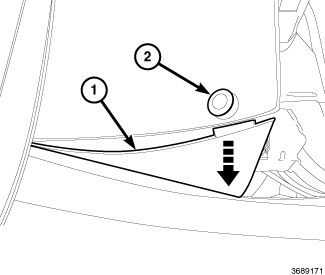

Remove the push pin (2) and reposition the PCM access cover (1).
4.
Unlock and disconnect the electrical connectors (1) from the powertrain control module (PCM).
5.
Remove the three bolts (2) and the PCM (1).
