Crankshaft Position Sensor: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Disconnect the crankshaft position (CKP) sensor connector at the frame bracket.
3. Remove the wiring tie straps as needed.

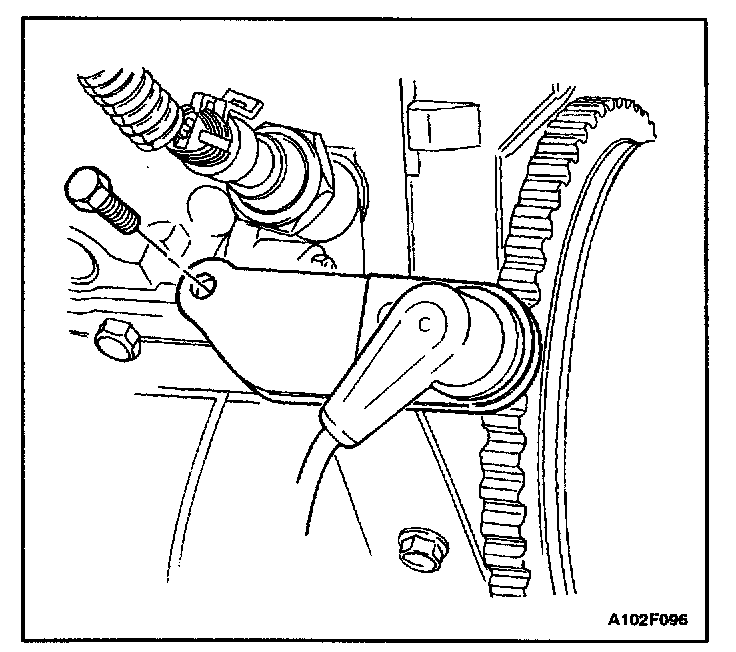

4. Remove the CKP sensor retaining bolt.
5. Remove the CKP sensor.

Installation Procedure

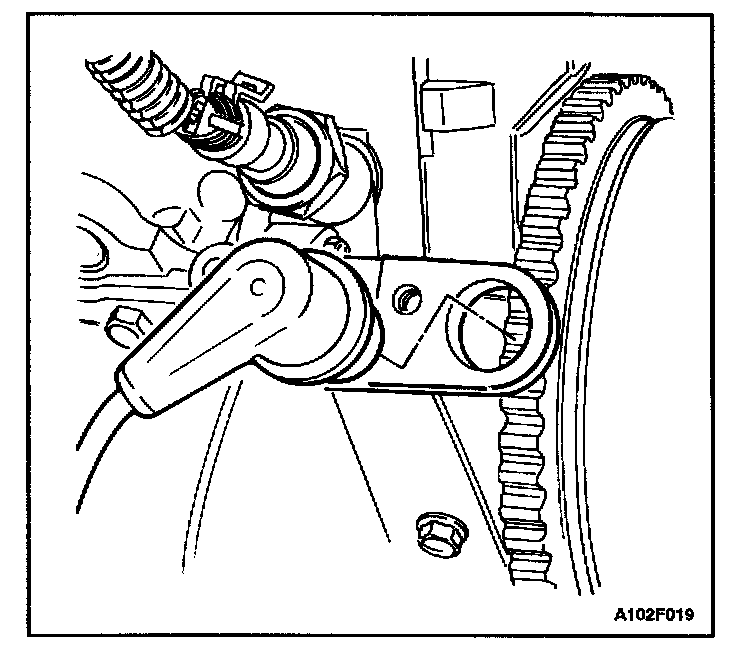

1. Install the CKP sensor with the retaining bolt.
Tighten
Tighten the crankshaft position sensor retaining bolt to 89 lb.in (10 N.m).

2. Connect the CKP sensor connector at the frame bracket.
3. Secure the wire with the tie straps as needed.
4. Connect the negative battery cable.
