Engine Control Module: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the passenger seat.

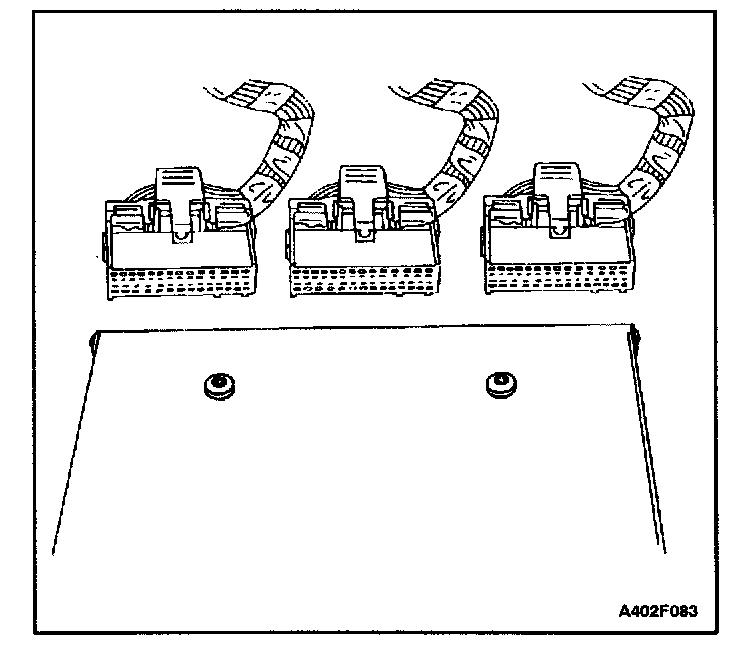

3. Disconnect the powertrain control module (PCM)/engine control module (ECM) connectors.

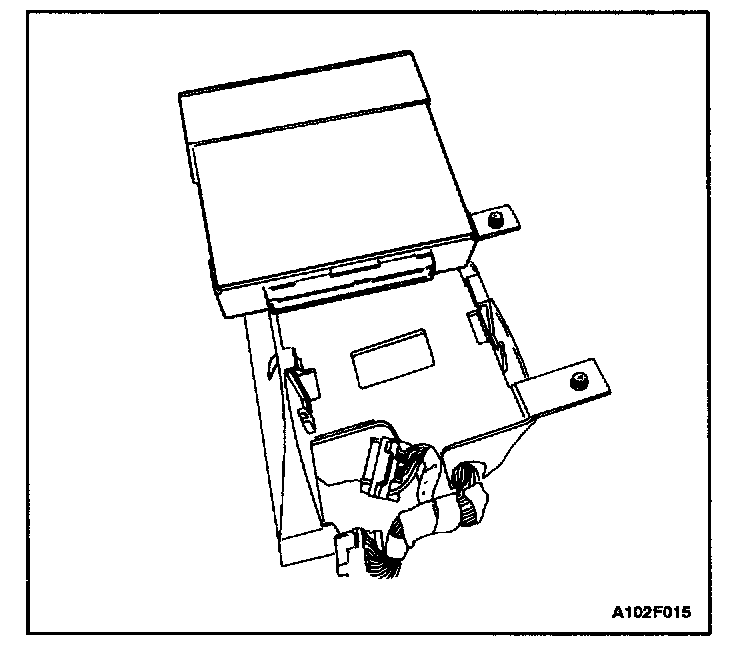

4. Remove the PCM/ECM from the PCM/ECM mount.

Installation Procedure




1. Position the PCM/ECM in place.
2. Install the PCM/ECM to the PCM/ECM mount.
3. Connect the PCM/ECM connectors.
4. Install the passenger seat.
5. Connect the negative battery cable.
6. Perform a crankshaft position system variation learning procedure. Refer to "DTC P1336".
