Vehicle Speed Sensor: Service and Repair


AUTOMATIC TRANSMISSION VEHICLE SPEED SENSOR (A/T VSS)

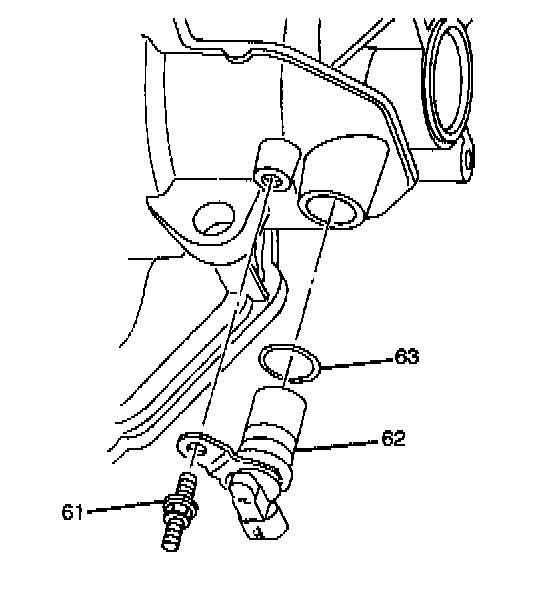

Removal Procedure





1. Disconnect the negative battery cable.
2. Disconnect the A/T VSS electrical connector.
3. Remove the A/T VSS stud (61).

Notice: Be sure to pull the A/T VSS straight out of the transaxle case to prevent damage to the case bore.

4. Pull the A/T VSS (62) straight out of the transaxle case.
5. Remove the O-ring (63) from the A/T VSS (62).

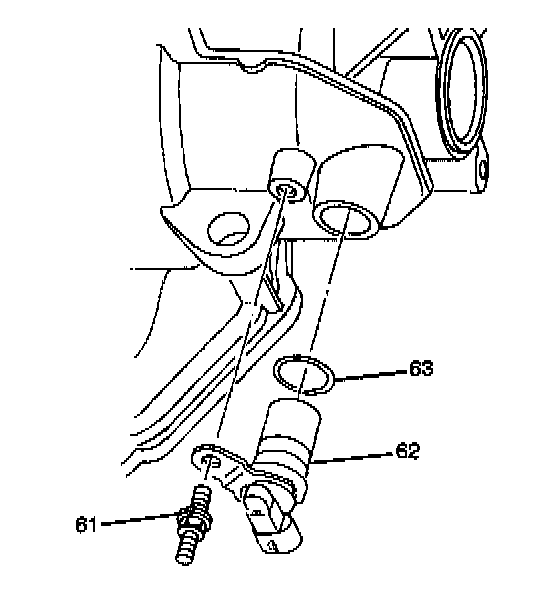

Installation Procedure





1. Inspect the A/T VSS for damage. Clean and dry the A/T VSS. Install the O-ring (63) on the A/T VSS (62).
2. Install the A/T VSS (62) in the transaxle case.
3. Install the A/T VSS stud (61).
- Tighten the A/T VSS stud (61) to 106 inch lbs. (12 Nm).
4. Connect the A/T VSS electrical connector.
5. Connect the negative battery cable.
