Manual Front Window Regulator

Removal Procedure

1. Remove the front door glass.

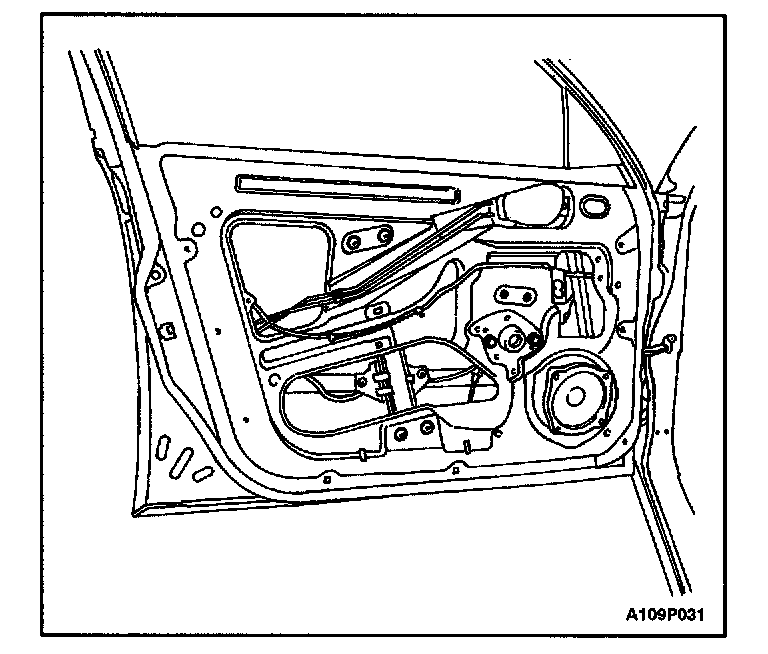

2. Remove the nuts and the window regulator.

Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

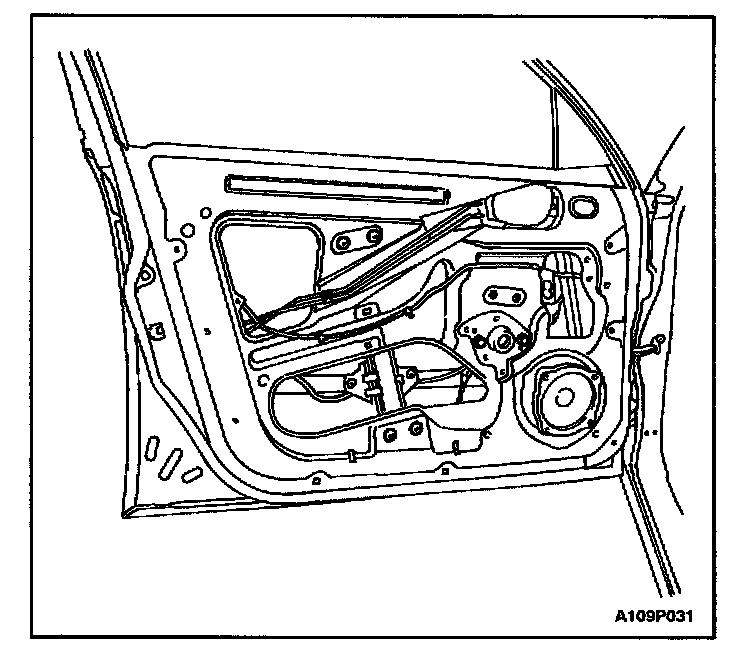

1. Install the window regulator and the nuts.
Tighten
Tighten the window regulator nuts to 7 N.m (62 lb.in).

2. Install the front door glass.
