Ultrasonic Sensor Replacement

Removal Procedure

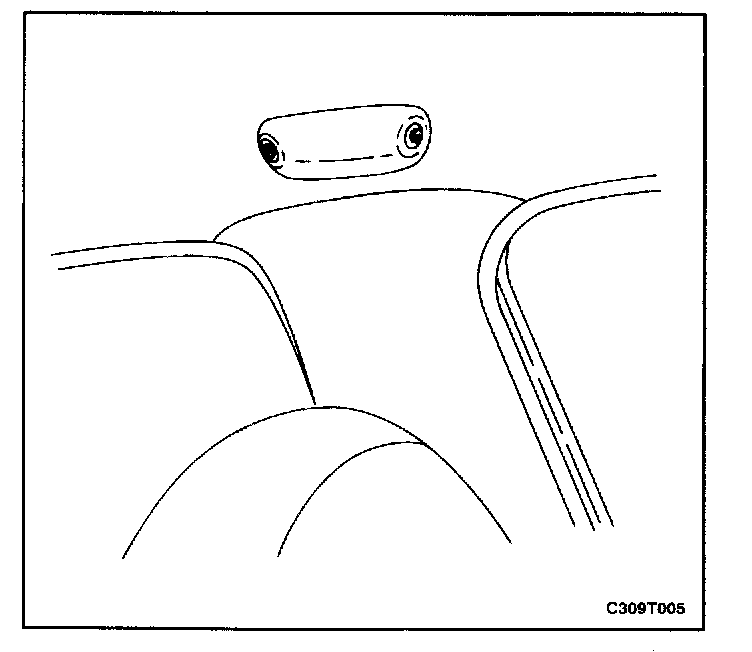

1. Slide the ultrasonic sensor in a sideways direction to loosen the retaining clip while simultaneously pulling the sensor away from the B-pillar.

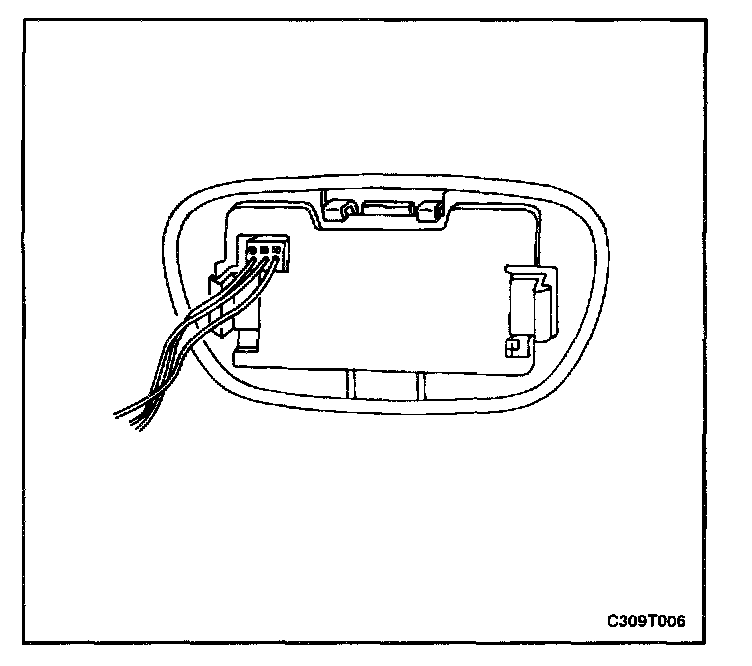

2. Disconnect the electrical connector from the ultrasonic sensor.

Installation Procedure

1. Connect the electrical connector to the ultrasonic sensor.
2. Install the ultrasonic sensor by pushing it into the opening in the B-pillar until the retaining clips lock into place.
