Main Switch

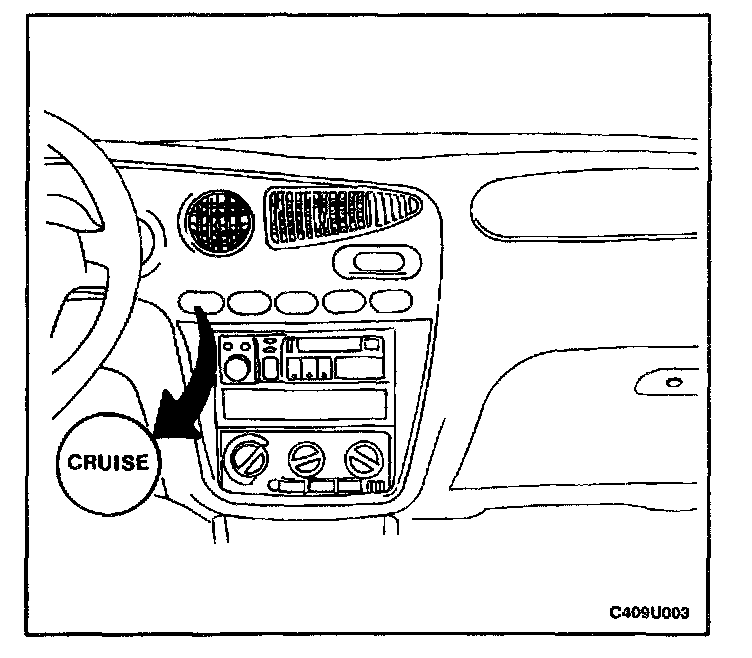

Removal Procedure




1. Remove the instrument cluster trim panel.
2. Disconnect the electrical connector from the cruise control main switch.
3. Press the retaining tabs to release the cruise control main switch, and push it out of the trim panel.

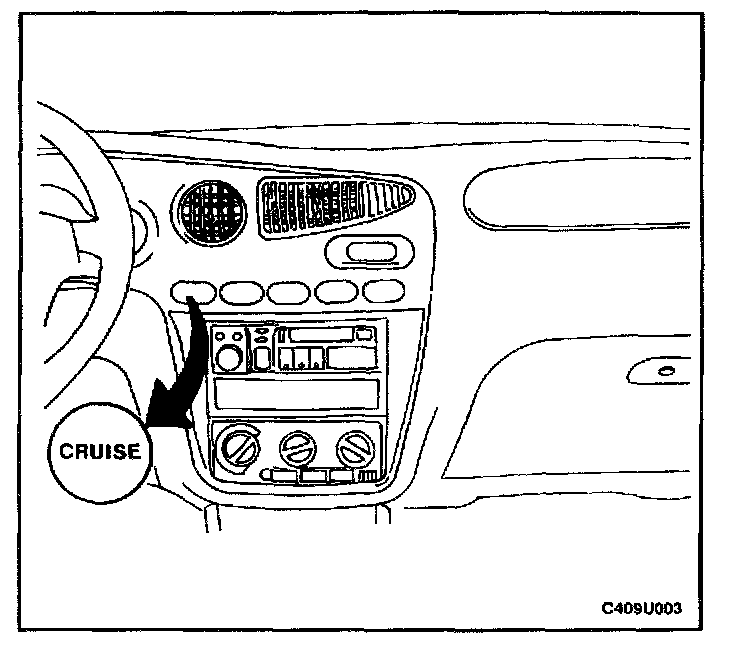

Installation Procedure




1. Push the cruise control main switch into the instrument cluster trim panel until it is locked in place by its retainers.
2. Connect the electrical connector to the cruise control main switch.
3. Reinstall the instrument cluster trim panel.
