Cruise Control: Testing and Inspection
CRUISE CONTROL DIAGNOSISTest DescriptionThe number(s) below refer to step(s) on the diagnostic table.
5.
The electromagnetic clutch in the
cruise control actuator is grounded through the brake lamps.

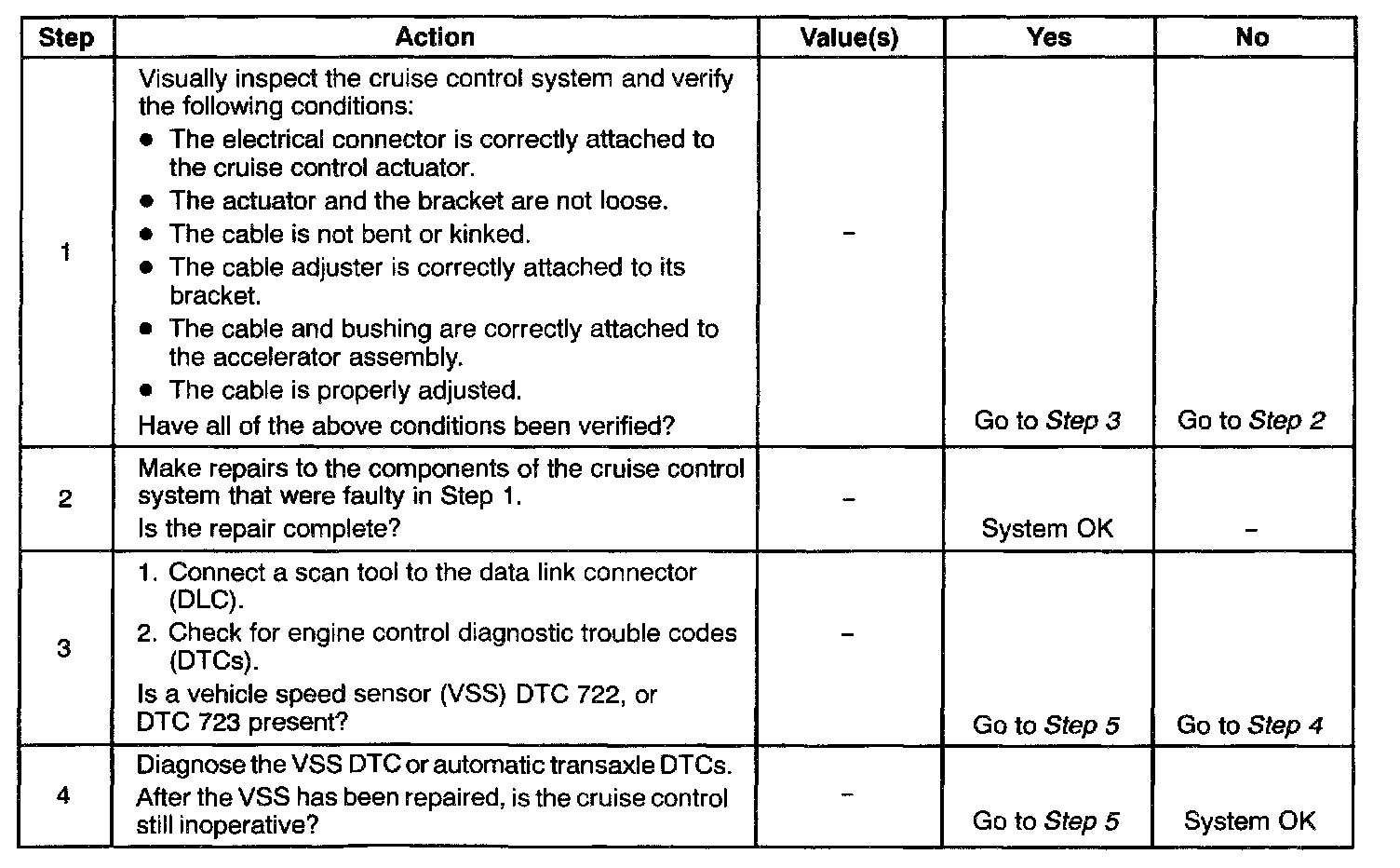

Steps 1 - 4:

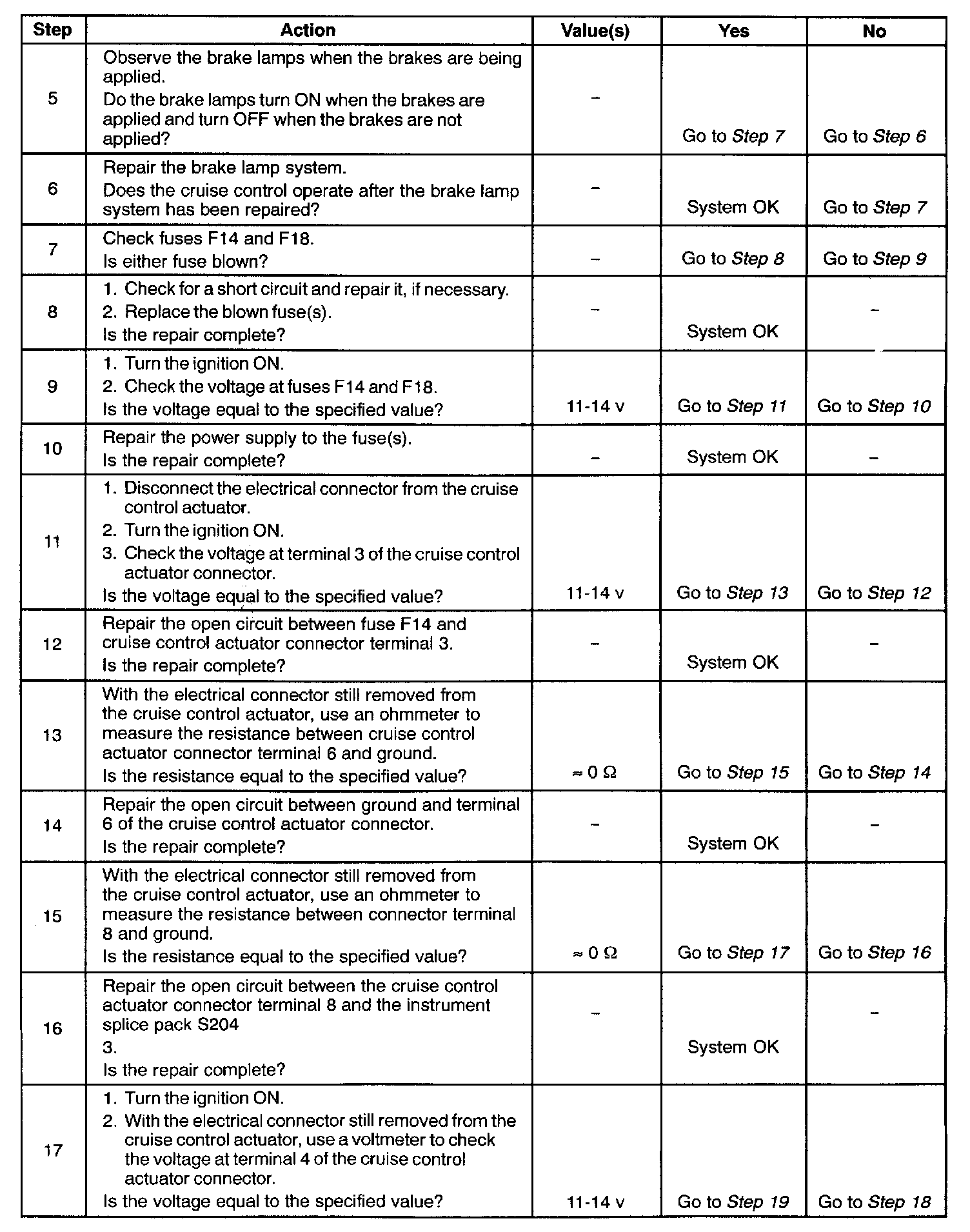

Steps 5 - 17:

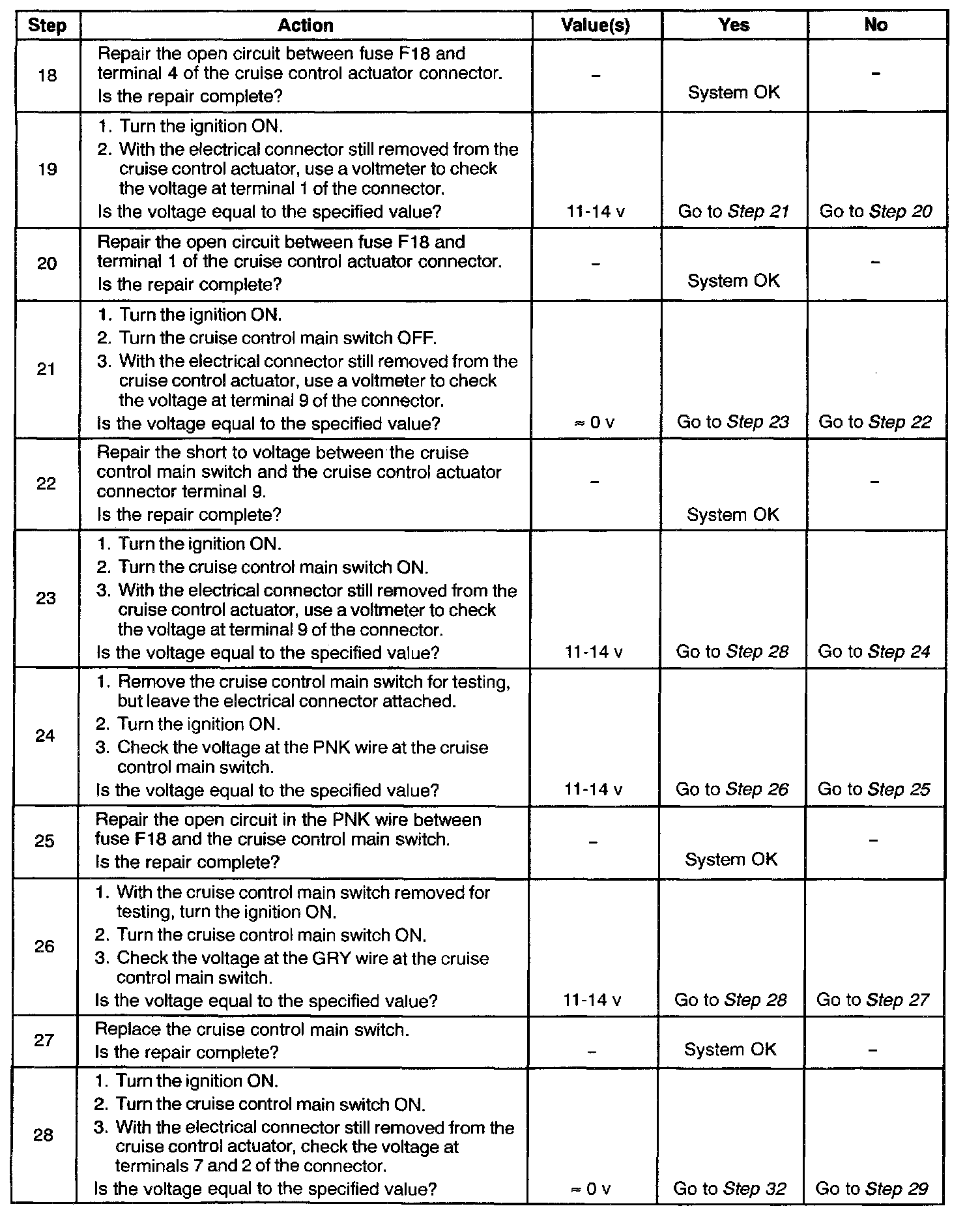

Steps 18 - 28:

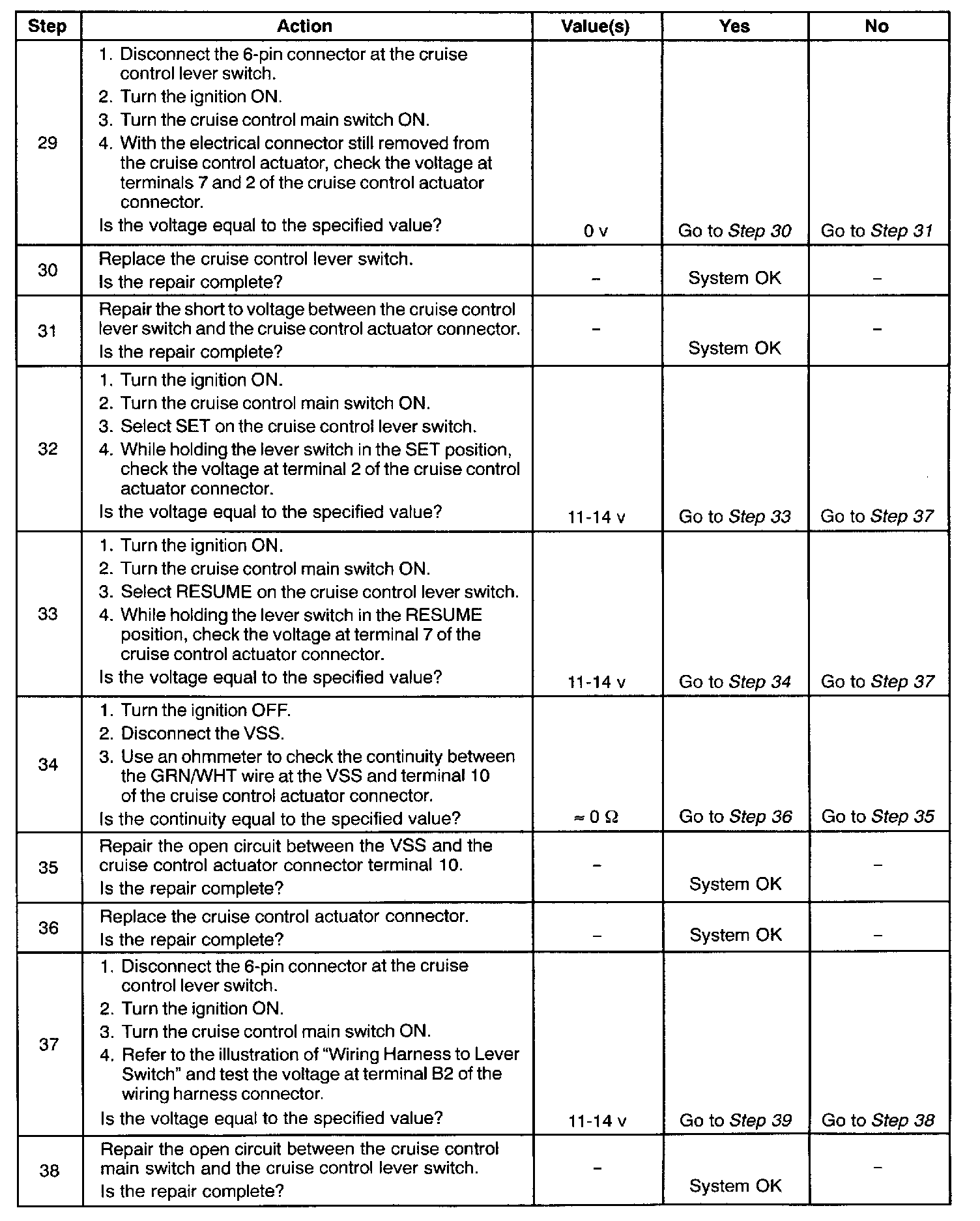

Steps 29 - 38:
Steps 39 - 41:
Cruise Control Does Not Operate
