Speed Sensitive Power Steering Control Module Bracket

Removal Procedure
1. Disconnect negative battery cable.
2. Remove the floor console.

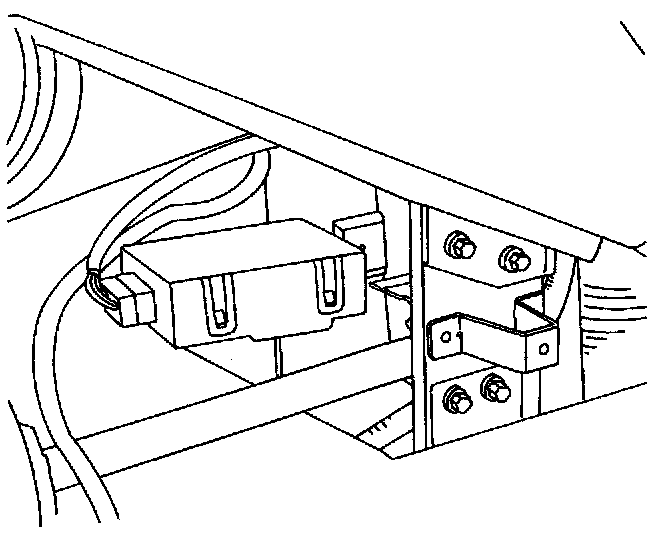

3. Slide the Speed Sensitive Power Steering (SSPS) control module off the control module bracket.

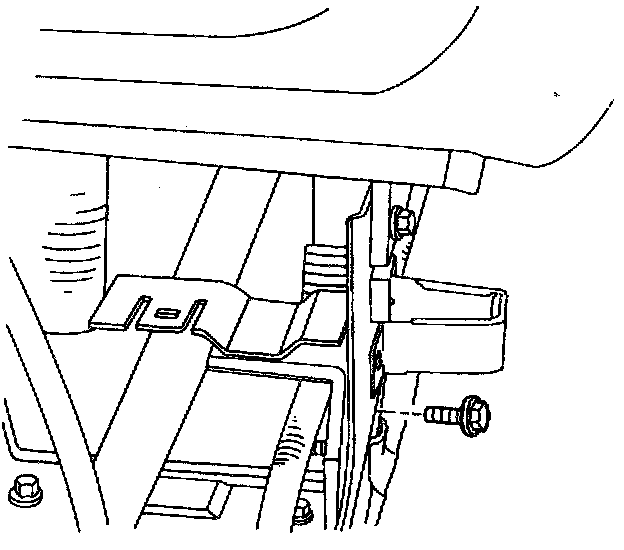

4. Remove the SSPS control module bracket bolts and remove the control module bracket.

Installation Procedure

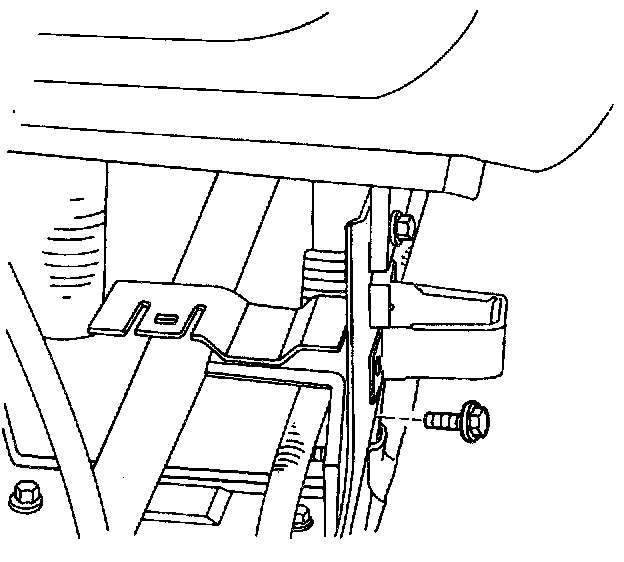

1. Install the SSPS control module bracket and the control module bracket bolts.
Tighten
Tighten the control module bracket bolts to 7 Nm (62 inch lbs.).

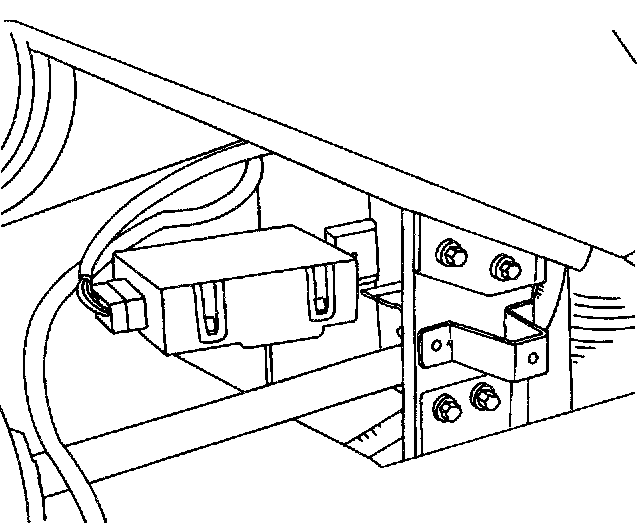

2. Slide the SSPS control module onto the control module bracket.
3. Install the floor console.
4. Connect the negative battery cable.
