Cruise Control: Testing and Inspection

Cruise Control Diagnosis

DIAGNOSIS

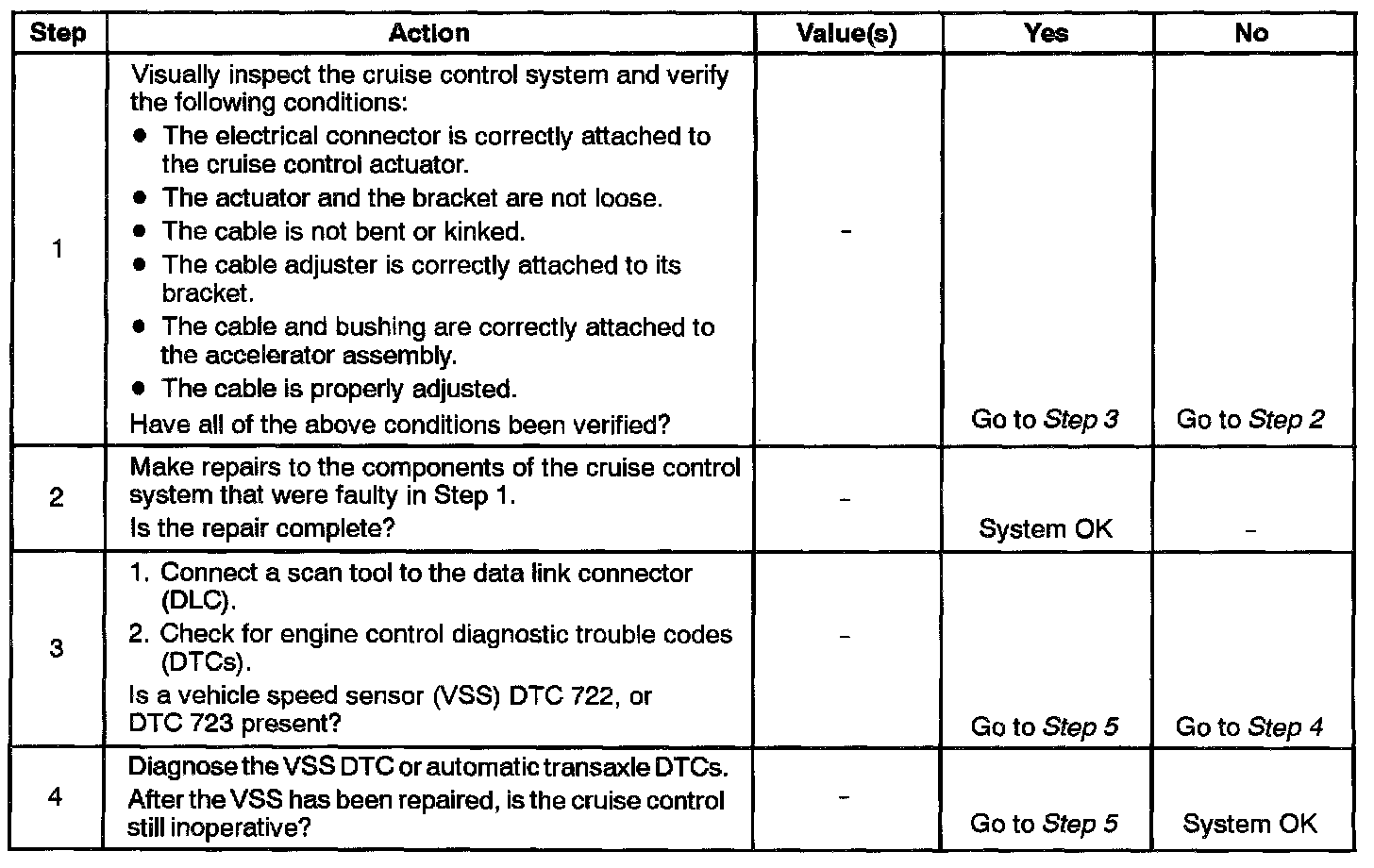

Cruise Control Does Not Operate Step 1 - 4:

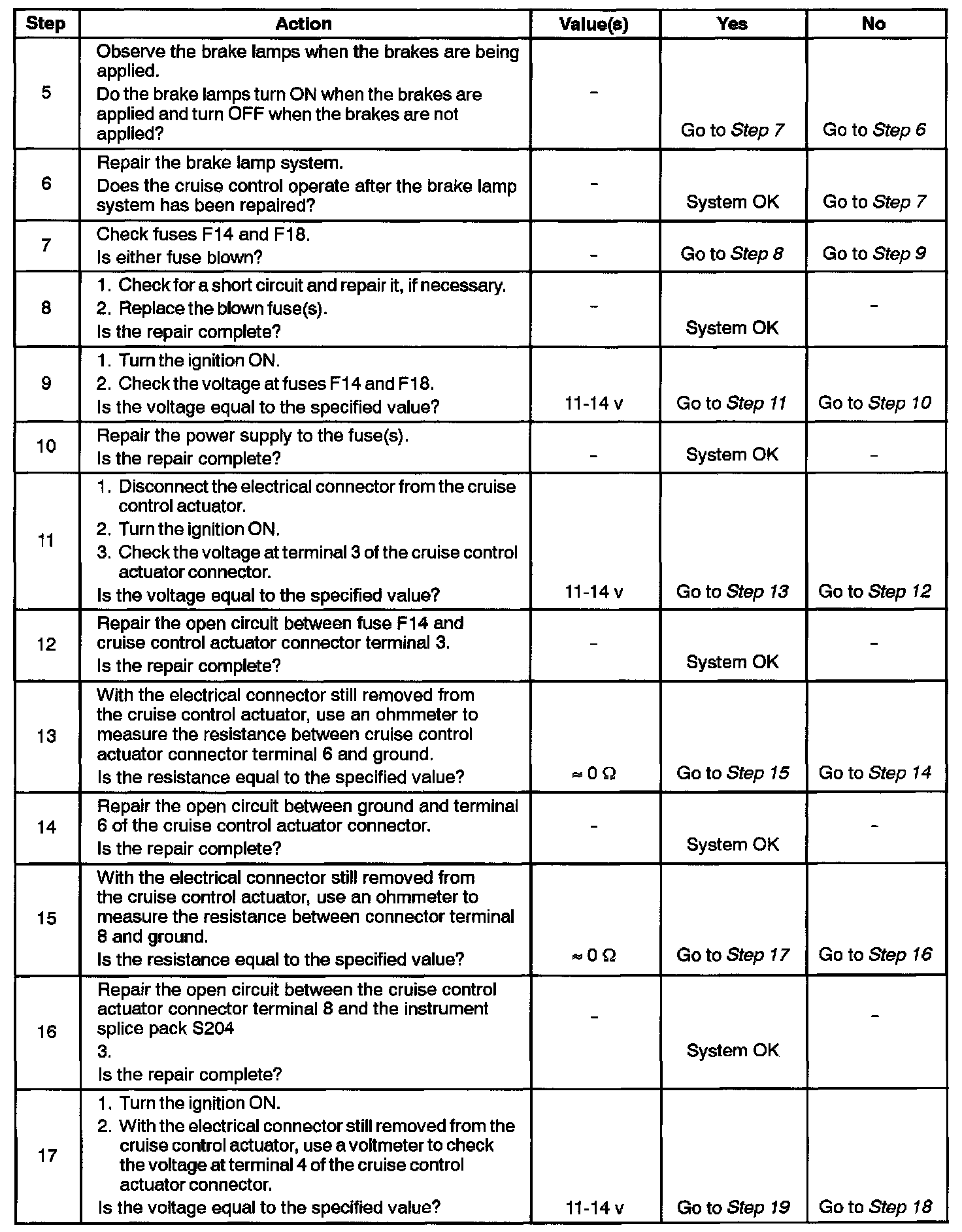

Cruise Control Does Not Operate Step 5 - 17:

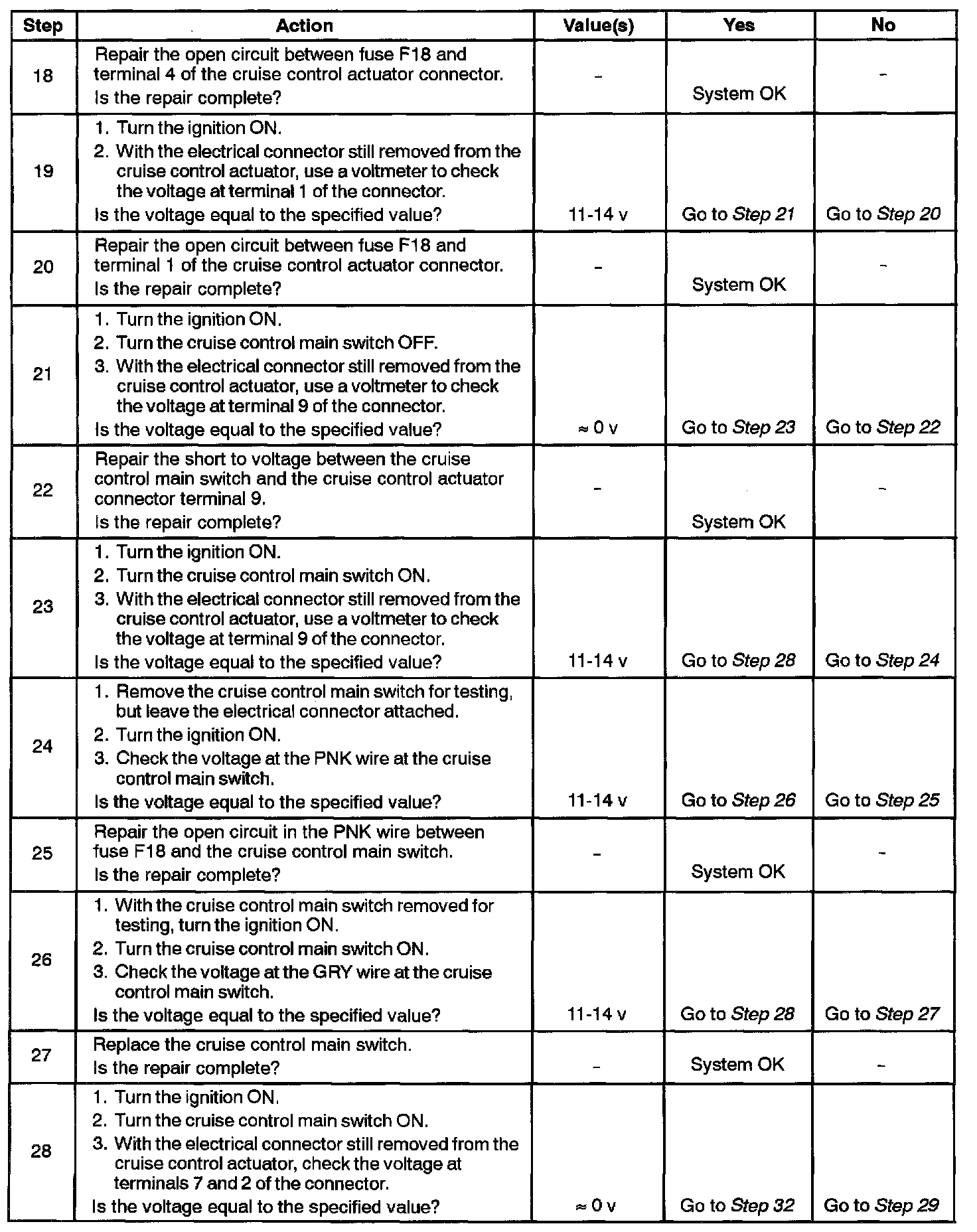

Cruise Control Does Not Operate Step 18 - 28:

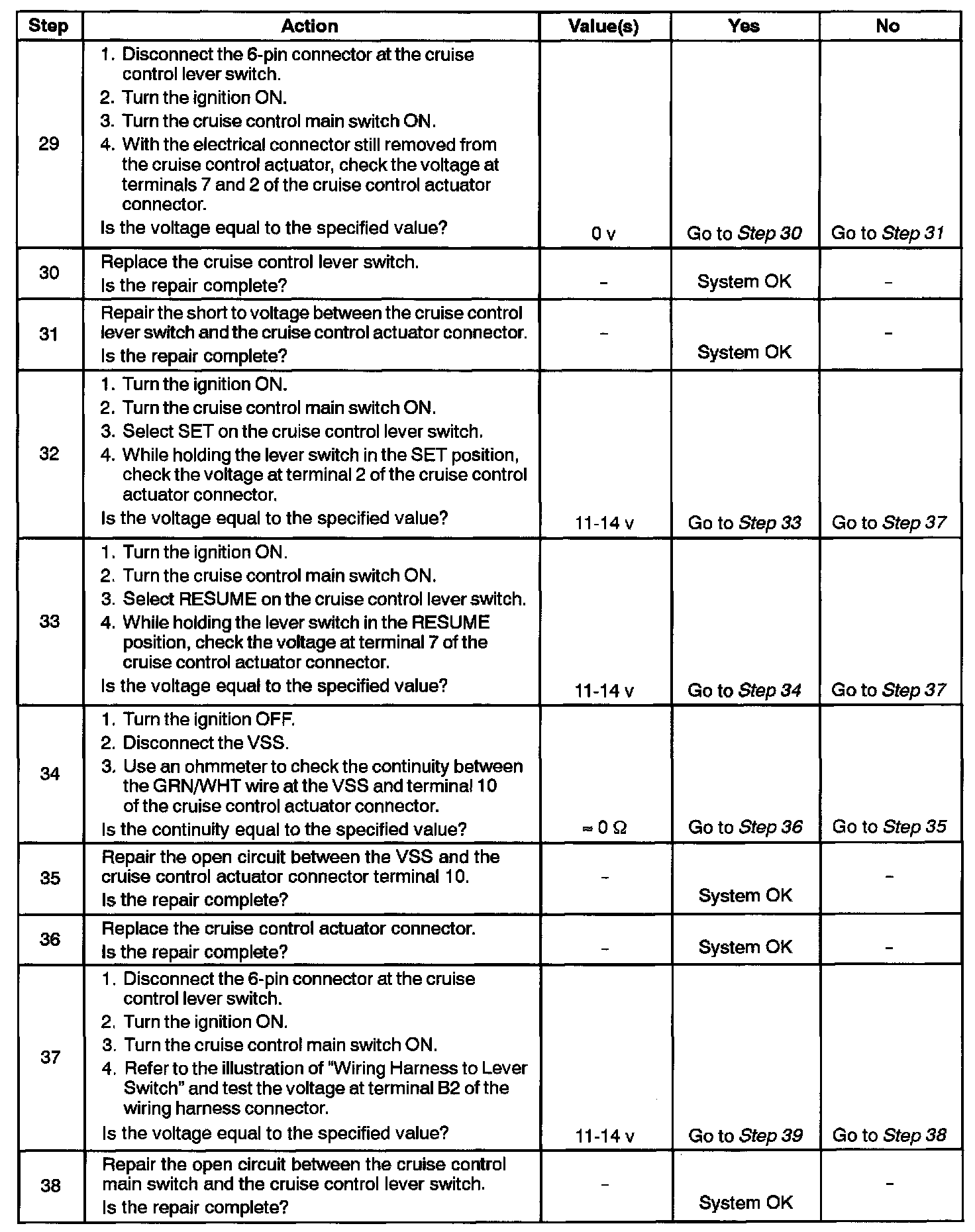

Cruise Control Does Not Operate Step 29 - 38:

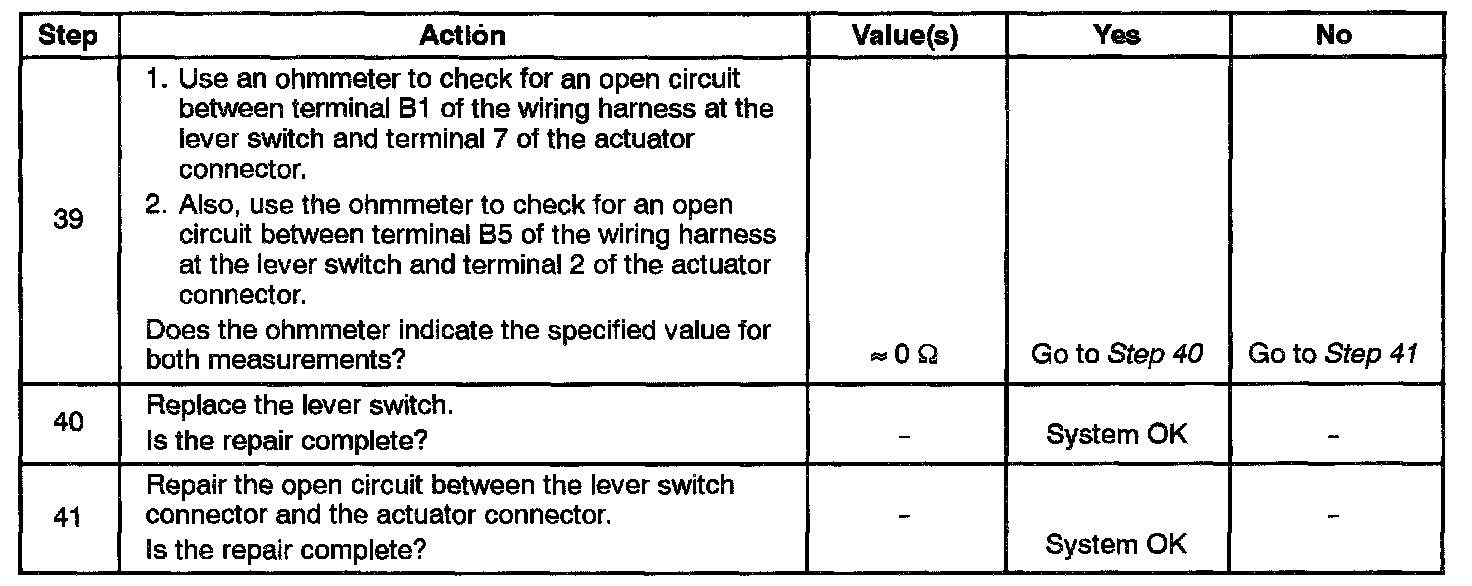

Cruise Control Does Not Operate Step 39 - 41:

Test Description
The number(s) below refer to step(s) on the diagnostic table.
5. The electromagnetic clutch in the cruise control actuator is grounded through the brake lamps.
