Clutch Switch: Service and Repair

Removal Procedure

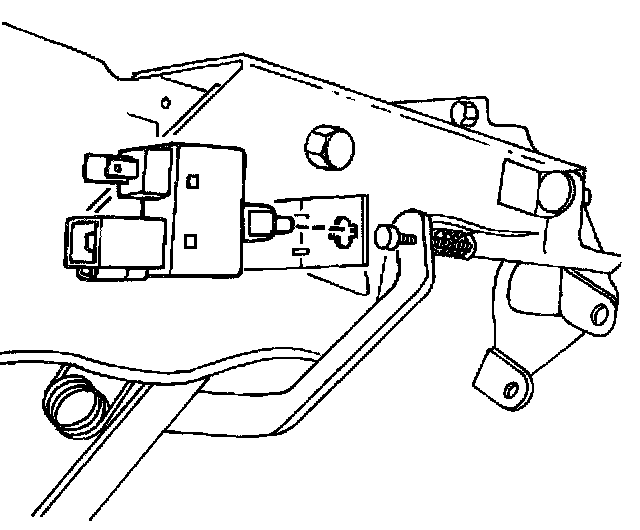

1. Remove the clutch pedal position switch by rotating the switch and pulling it out from the rear of the clutch pedal bracket.
2. Disconnect the electrical connector.

Installation Procedure
1. Connect the electrical connector.

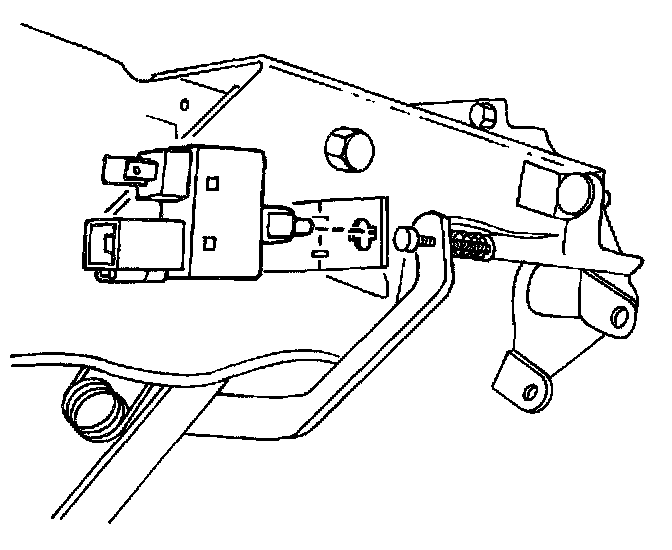

2. Install the clutch pedal position switch by inserting it in from the rear of the clutch pedal bracket and rotating the switch until it locks into position.
