Audible Warning Device Control Module: Service and Repair

Chime Module

Removal Procedure




1. Disconnect the negative battery cable.

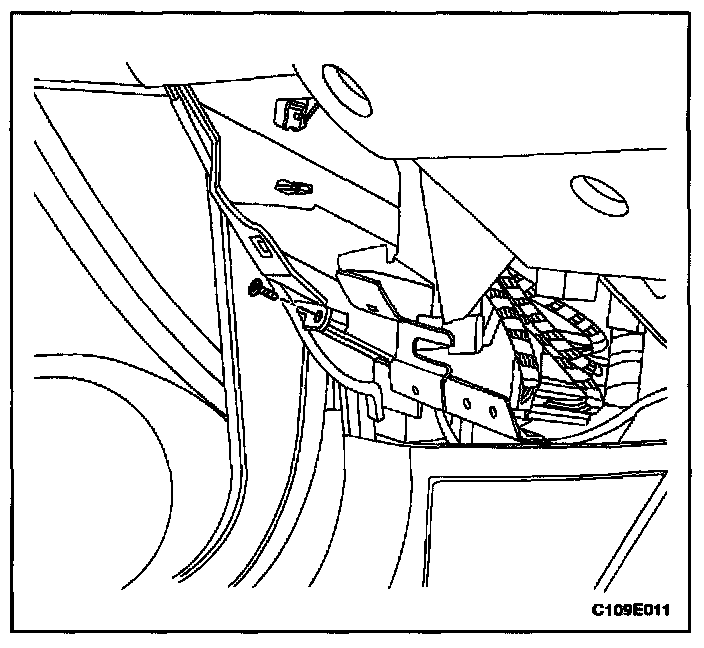

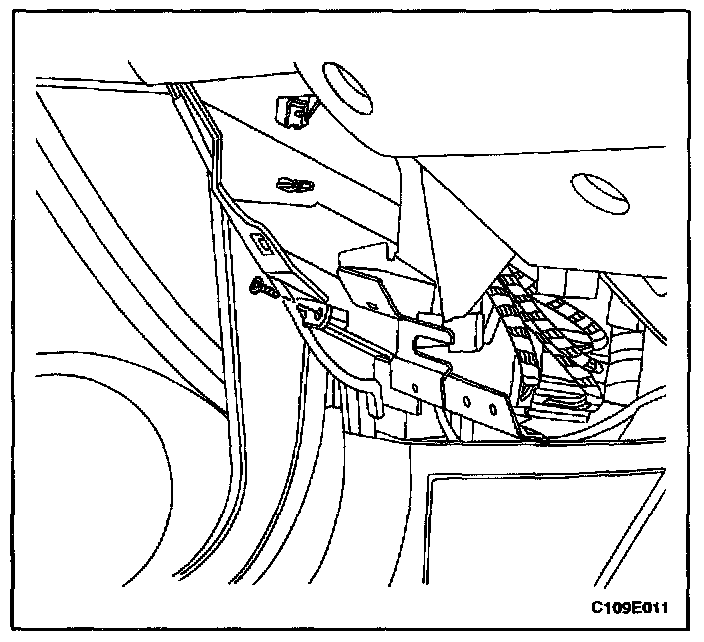

2. Remove the hood release handle screw and the knee bolster trim panel.

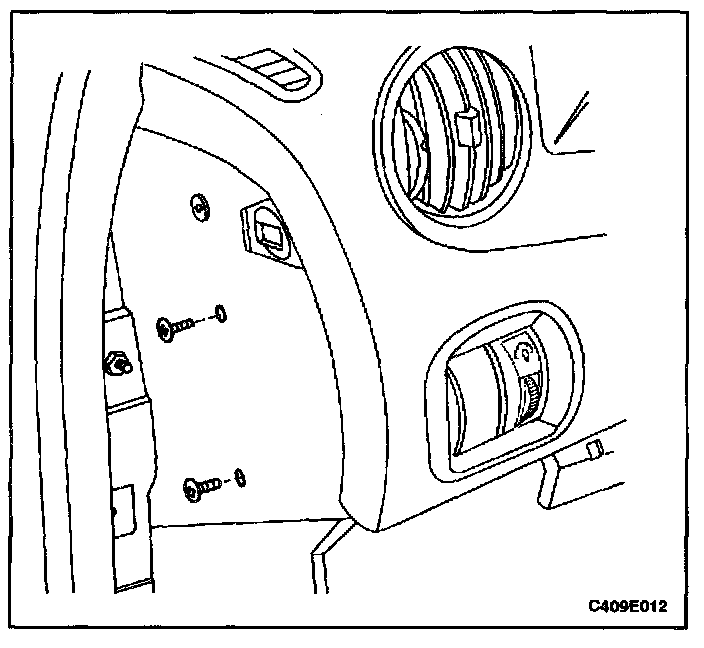

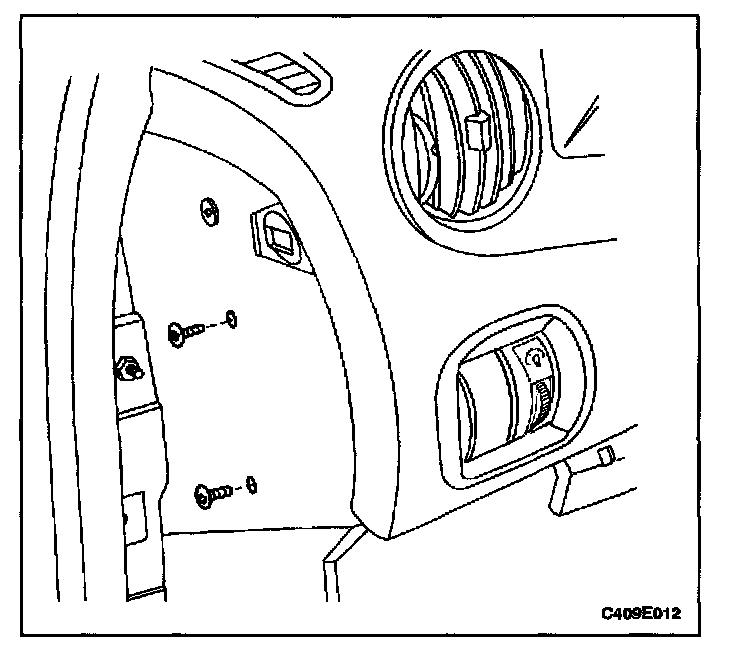

3. Remove the screw and the instrument panel side trim cover.




4. Disconnect the electrical connector.
5. Remove the screws and the chime module.

Installation Procedure




1. Install the chime module with the screws.

Tighten
Tighten the chime module screws to 4 N.m (35 lb-in).




2. Connect the electrical connector.
3. Install the instrument panel side trim cover with the screw.

Tighten
Tighten the instrument panel side trim cover screw to 2.5 N.m (22 lb-in).

4. Install the knee bolster trim panel with the hood release handle screw.

Tighten
Tighten the hood release handle screw to 2.5 N.m (22 lb-in).

5. Connect the negative battery cable.
