Pinout Values and Diagnostic Parameters
Refer to
Figs. 36 through 37b for ECU wiring/connector conditions and operating voltages.

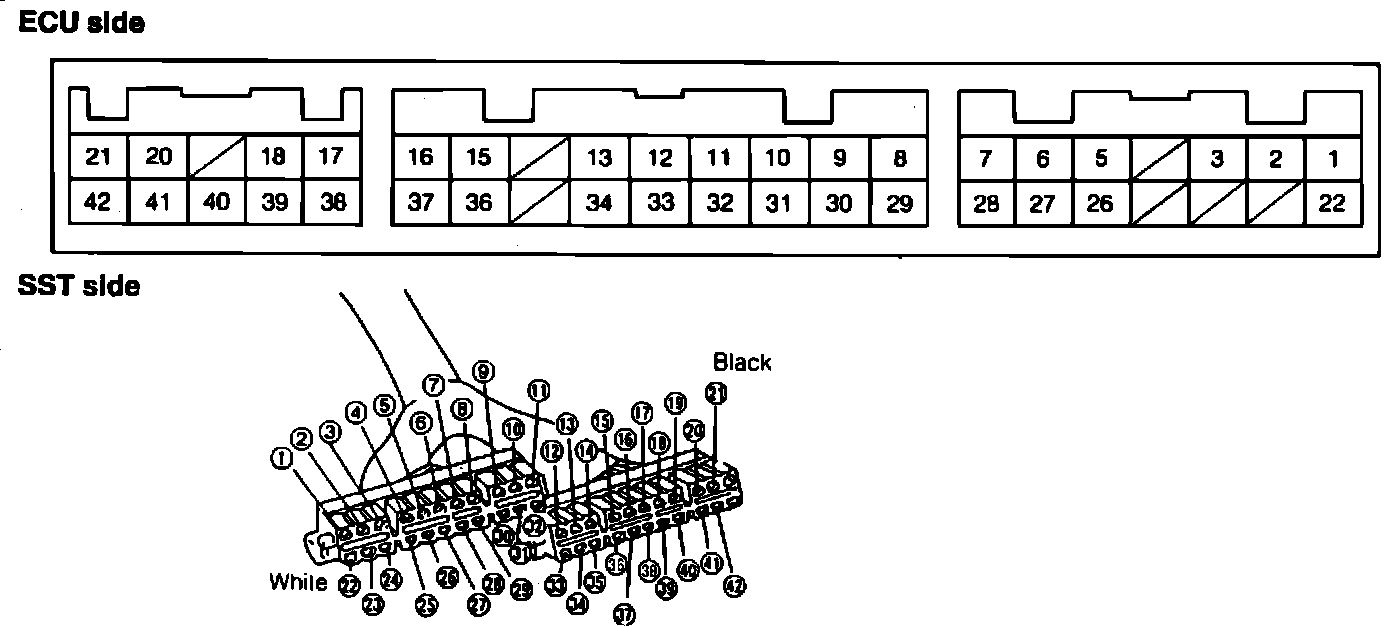

Fig. 36 ECU TEST HARNESS TERMINAL LOCATIONS:Fig. 36 ECU Test Harness Terminal Locations:

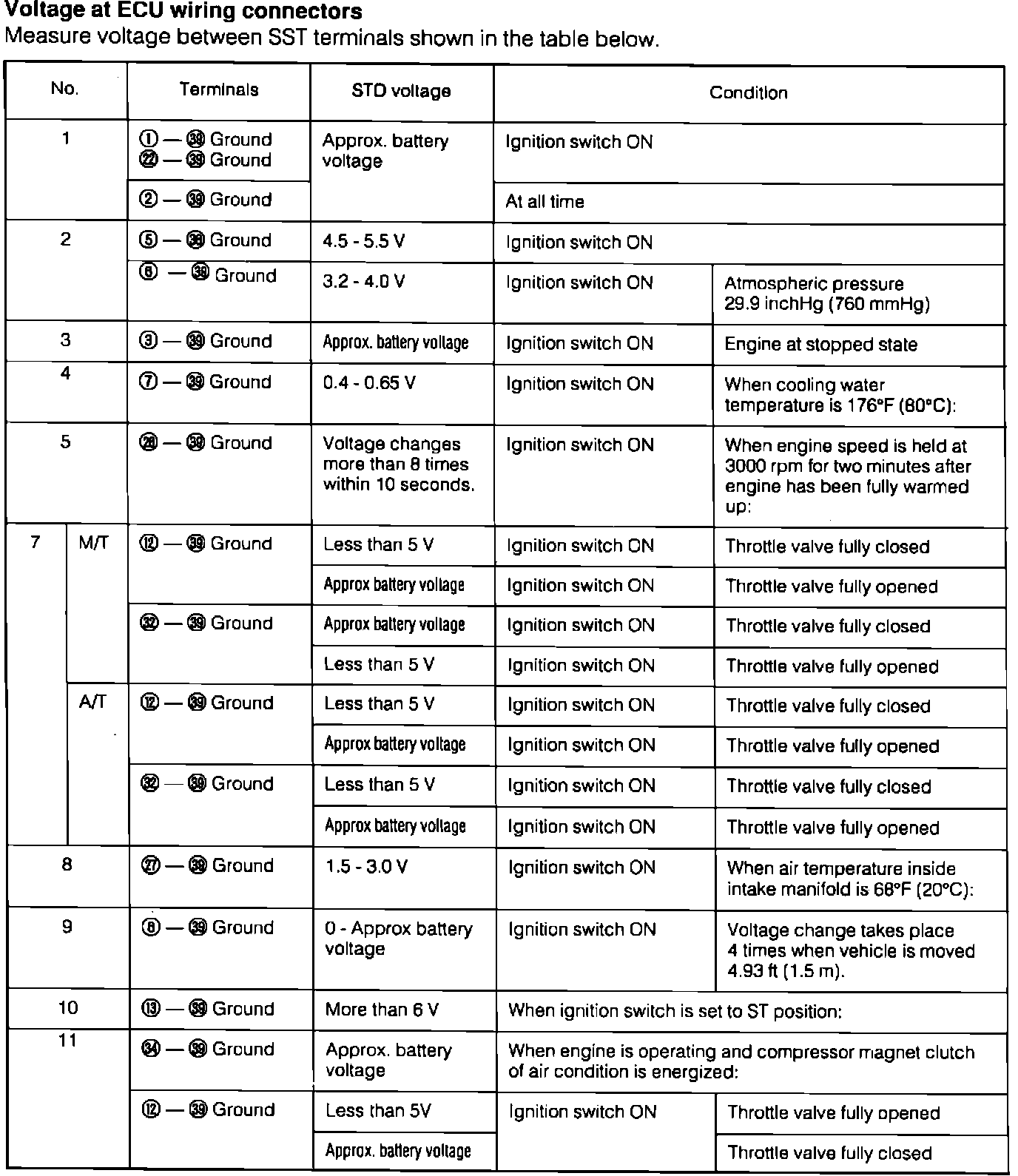

Fig. 37a ECU TERMINALS STANDARD VOLTAGE:Fig. 37 ECU Terminals Standard Voltage (Part 1 Of 2):

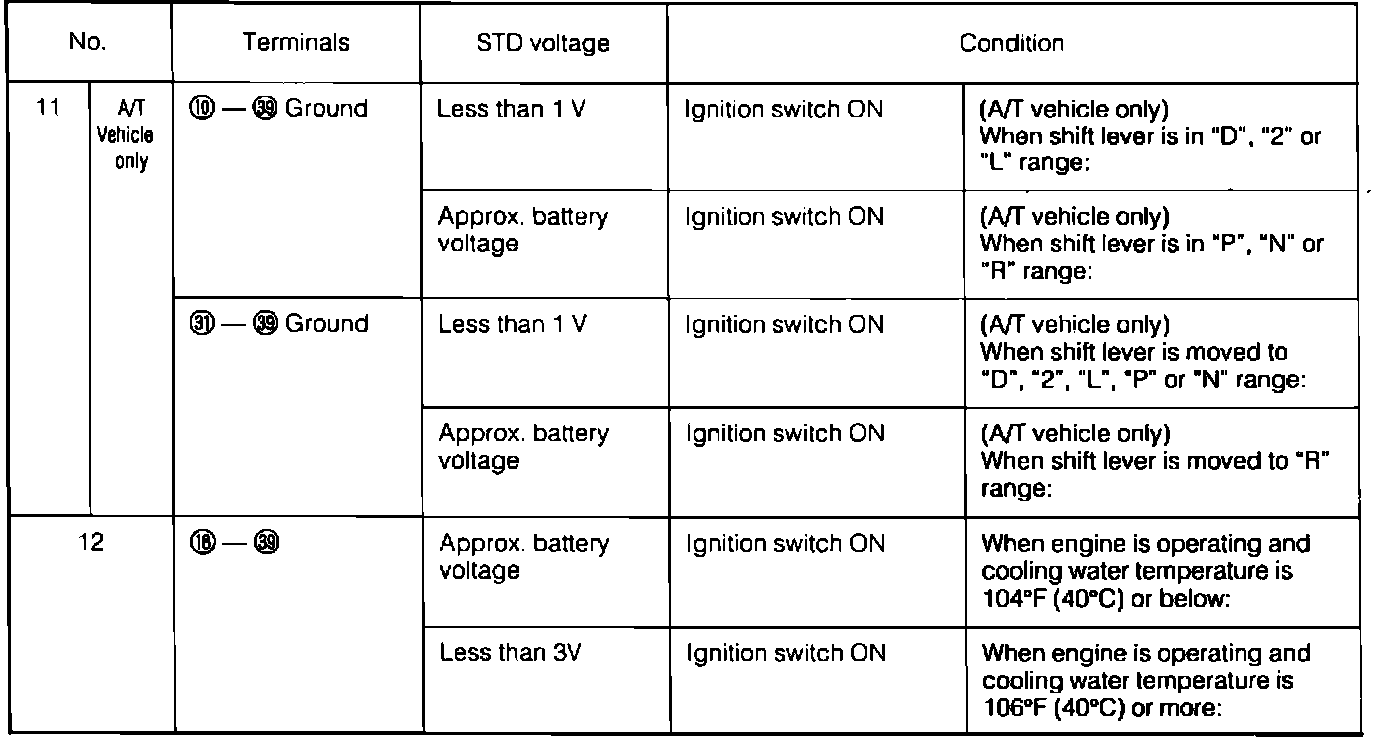

Fig. 37b ECU TERMINALS STANDARD VOLTAGE:Fig. 37 ECU Terminals Standard Voltage (Part 2 Of 2):
