Repair and Diagnosis: Application and ID
To identify any engine by the manufacturer's code, follow the four steps designated by the numbered blocks.
V.I.N. PLATE LOCATION: Left side of instrument panel visible through
windshield.

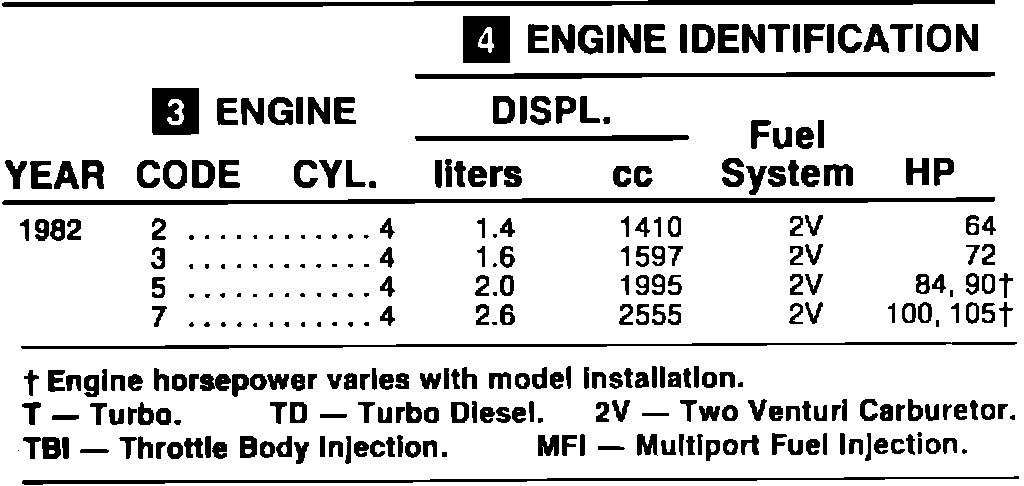

Engine Identification 1982:
1 MODEL YEAR IDENTIFICATION: 10th character of V.I.N.
1982 - C
2 ENGINE CODE LOCATION: 8th character of V.I.N.
