Ignition Switch: Service and Repair

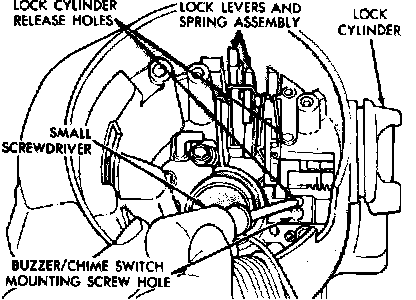

Fig. 1 Ignition lock removal. Model less tilt column:

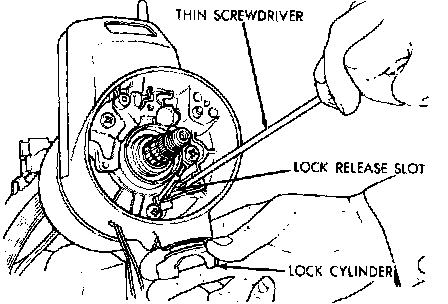

Fig. 2 Ignition lock removal. Models w/tilt column:

1. Disconnect battery ground cable and remove turn signal switch as outlined elsewhere in this chapter.
2. Remove ignition key lamp assembly retaining screw and the assembly.
3. Remove snap ring from upper end of steering shaft.
4. Remove bearing housing to lock housing retaining screws, then the bearing housing from shaft.
5. Remove bearing lower snap ring from shaft.
6. Pry sleeve from steering shaft lock plate hub, then, using a suitable punch, drive lock plate groove pin from lock plate. Drive pin from end without grooves.
7. Remove lock plate from shaft, then the shaft through lower end of column.
8. Remove shift indicator pointer screw, if equipped.
9. Remove buzzer switch retaining screw and the switch.
10. Remove lock lever guide plate retaining screws and the guide plate.
11. Place lock cylinder in the "Lock" position and remove key. With a suitable tool, depress spring loaded lock retainer and pull lock cylinder from housing bore.
12. Remove ignition switch retaining screws and the ignition switch.
13. Reverse procedure to install.
