Disassembly

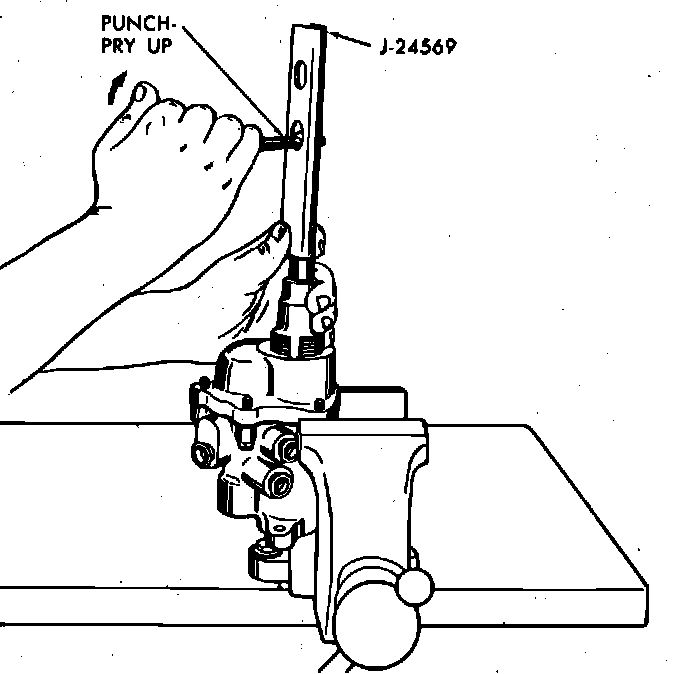

Fig. 3 Removing booster pedal rod. 1980-84:

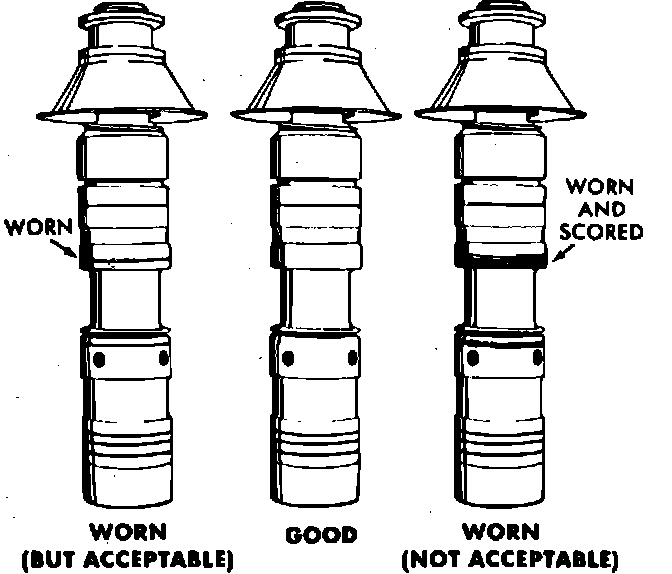

Fig. 4 Spool valve inspection:

1. Secure booster assembly in vise.
2. On 1980-84 models, proceed as follows:
a. Using a chisel and hammer, cut the bracket nut that secures the mounting bracket to the power section. Be careful to avoid damage to the threads on the booster hub.
b. Remove pedal rod boot, if equipped.
c. Place tool No. J-24569 around pedal rod as shown, then using a suitable punch, shear pedal rod retainer and remove pedal rod.
d. Remove rubber grommet from groove near end of pedal rod and from groove inside input rod end.
3. On 1985-87 models, proceed as follows:
a. Remove pedal rod boot, if equipped.
b. Remove mounting bracket retaining ring and nut, then saw off pedal rod eyelet and separate the input rod, lever and piston assembly from booster cover.
4. On all models, pry plastic guide out of the output pushrod retainer, then disengage tabs of spring retainer from ledge inside opening near master cylinder mounting flange of booster.
5. Remove retainer, piston return spring and output rod.
6. Position drain pan under booster housing, then remove five housing to cover attaching screws.
7. Remove cover from housing, using caution not to damage cover bore, then the housing seal from housing cover.
8. Remove input rod, lever and piston assembly, then the spool valve assembly and spool return spring from the booster housing. Inspect spool valve. If spool valve is found to be defective, the valve assembly must be replaced.
9. Remove power piston seal.

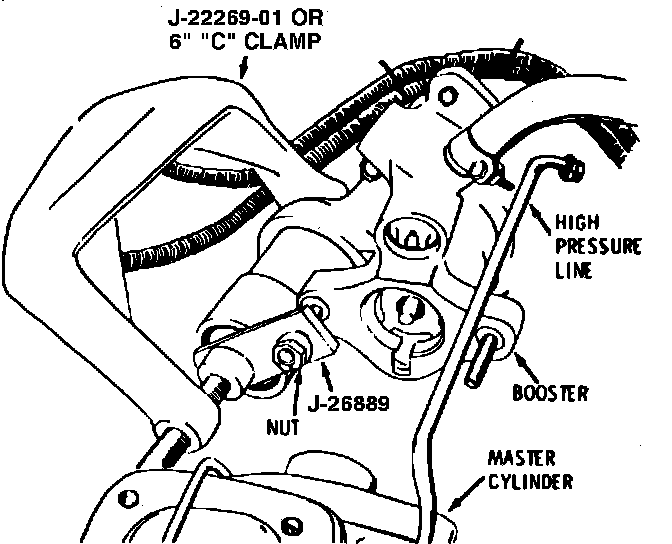

Fig. 5 Removing accumulator:

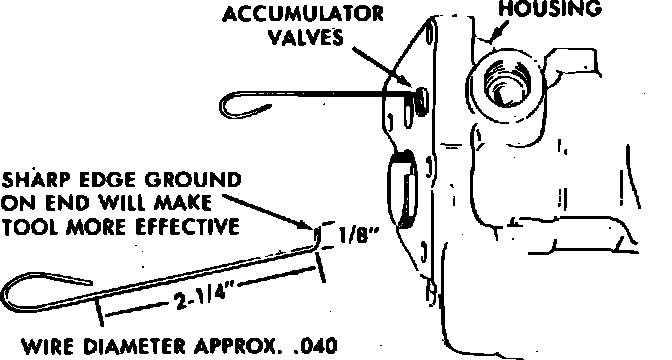

Fig. 6 Removing accumulator valves:

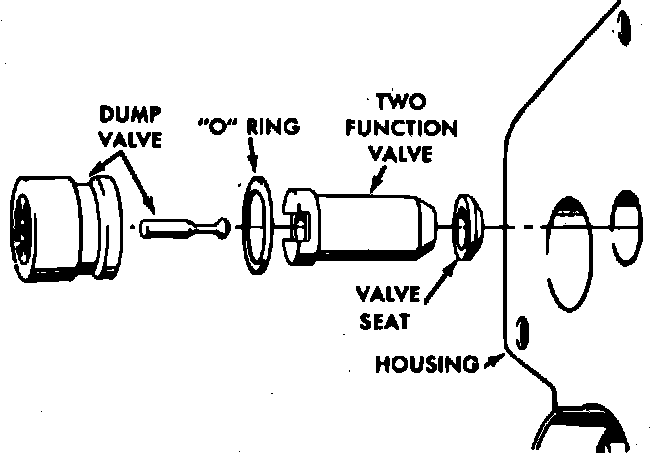

Fig. 7 Accumulator valves:

10. Install accumulator retaining cap tool No. J-26889 over master cylinder stud and install nut as shown.
11. Depress accumulator, using a suitable C-clamp, then insert a punch into hole in housing and remove retaining ring with a suitable screwdriver.
12. Slowly back off C-clamp until tension on the accumulator is released, then remove accumulator and O-ring.
13. If accumulator valve is to be removed, fabricate tool from 0.040 inch diameter wire as shown. Remove dump valve by catching tool under pin guide near center of valve, then remove check valve assembly and seat.
14. Remove hose fitting O-ring, if necessary.
15. Remove spool plug retaining ring, then the spool plug and O-ring.
