Clearance and Design Specifications
SpecificationsRear Axle, SPICER 60 and 60 HD

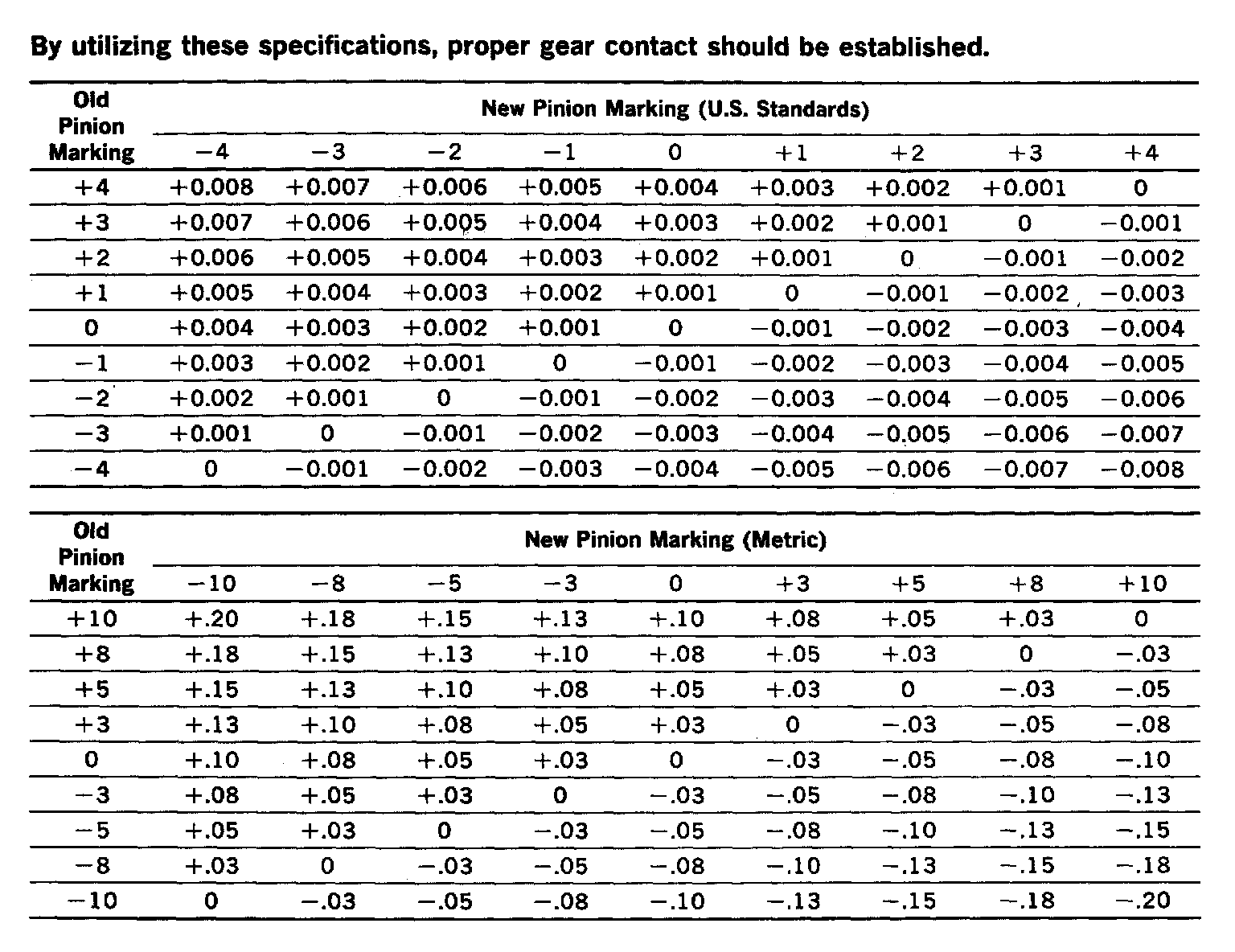

Pinion Setting Chart, (U.S And Metric):
Rear Axle SPICER 70
Component Identification And Vehicle Usage Chart:

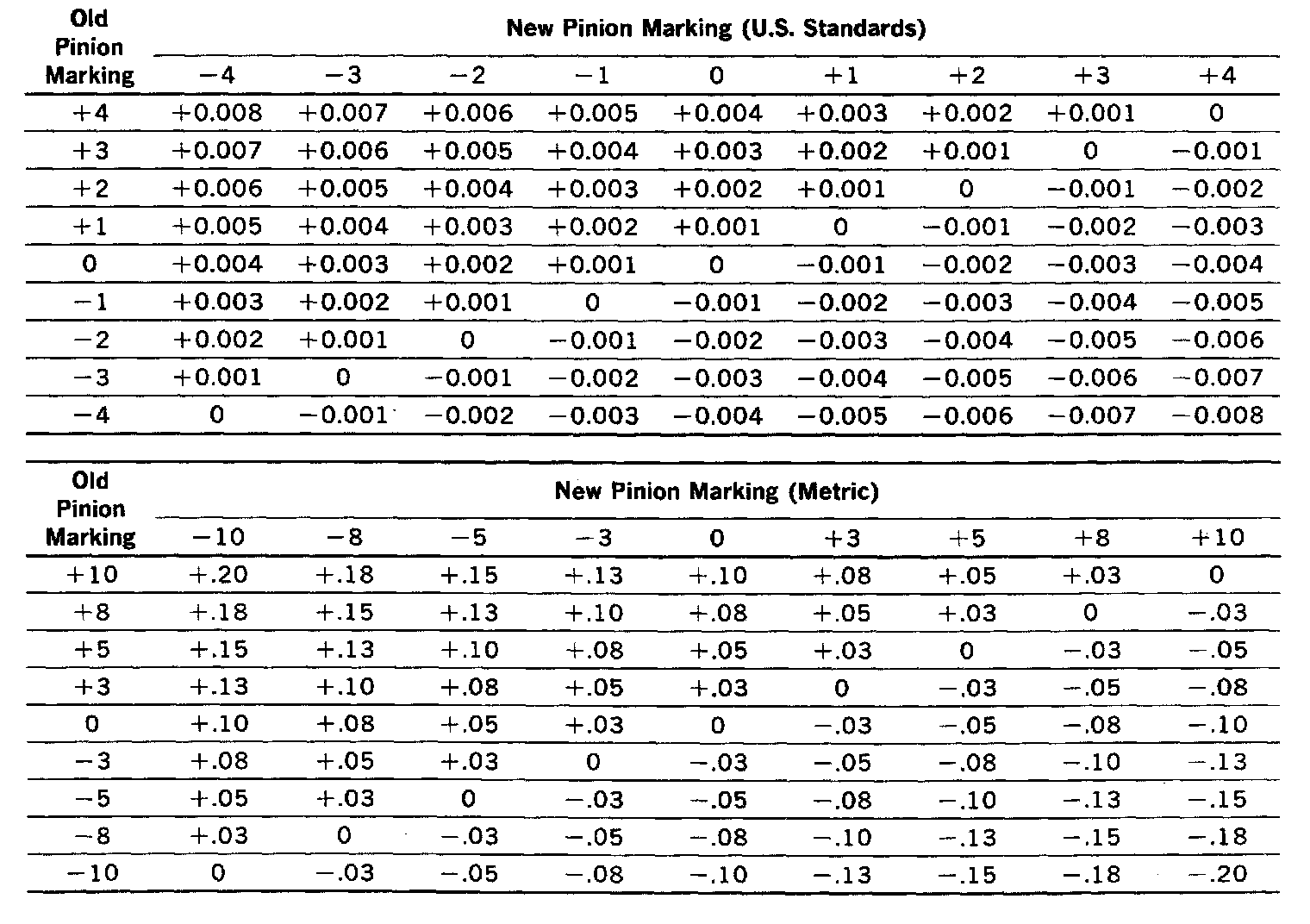

Pinion Setting Chart, (U.S And Metric):
Differential Backlash Specifications:
