Fast Idle Cam Position

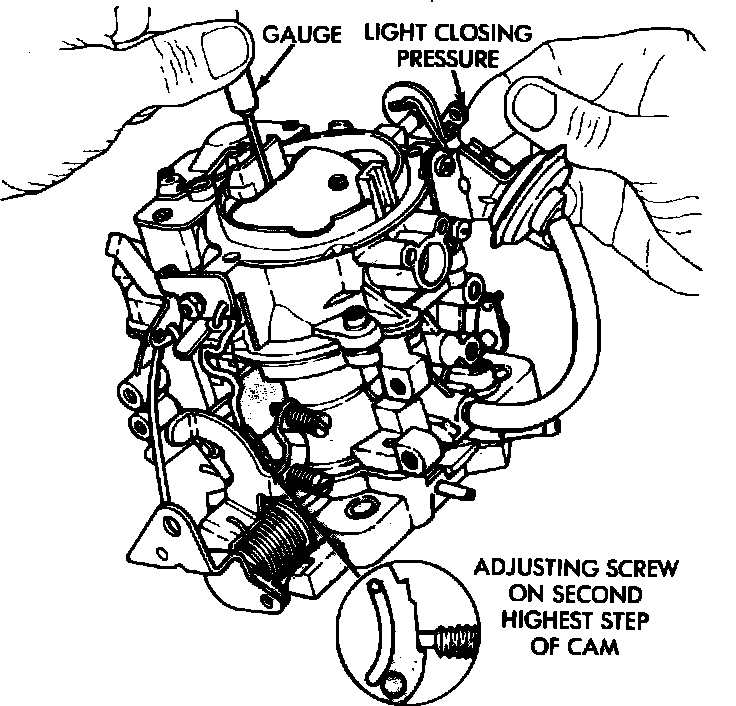

Fig. 7 Fast idle cam position adjustment:

With fast idle speed adjusting screw contacting second highest step of fast idle cam, move choke valve toward closed position with light pressure on choke shaft lever. Insert specified gauge between top of choke valve and air horn wall, Fig. 7. To adjust, bend the U-bend in fast idle connector link to obtain proper setting.
