Ball Joint: Testing and Inspection

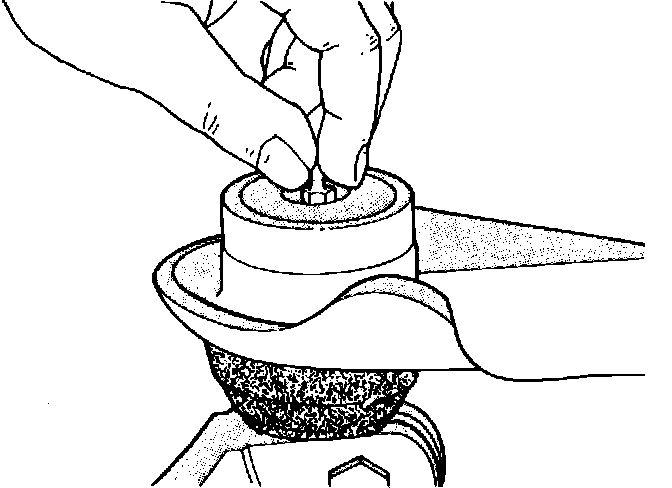

Fig. 7 Checking ball joint for wear:

With weight of vehicle resting on wheel and tire assembly, attempt to move grease fitting with fingers. Do not use tool or added force to attempt to move grease fitting. If grease fitting moves freely, ball joint is worn and should be replaced.
