Choke Coil Lever

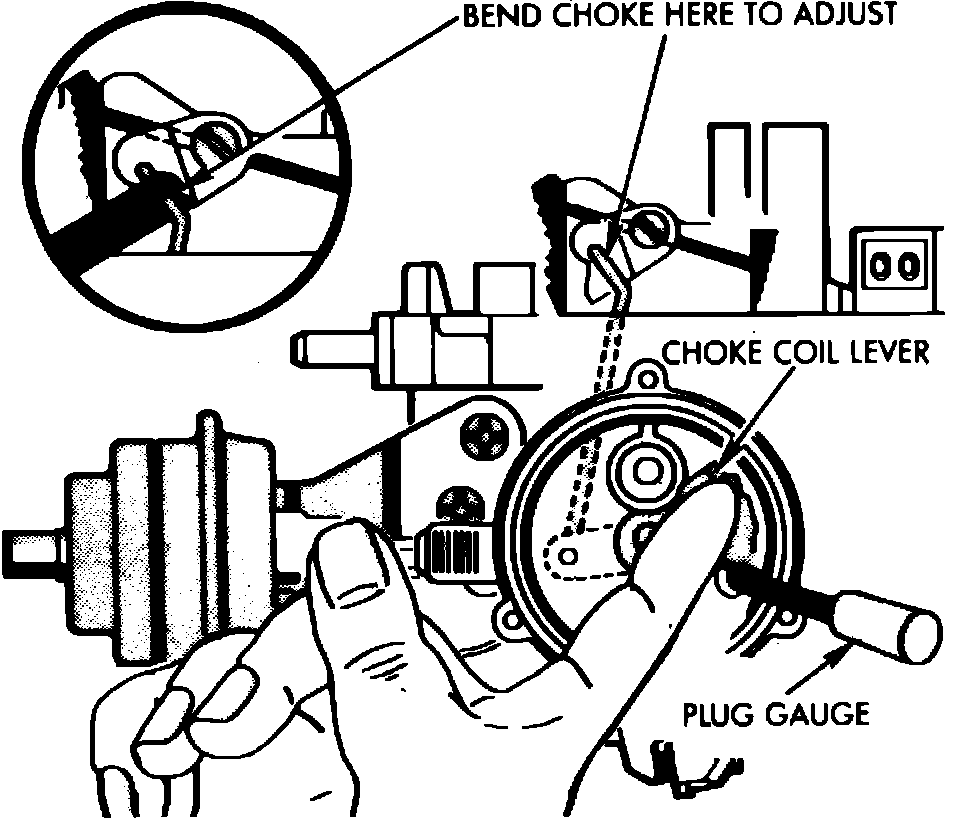

Fig. 9 Adjusting choke coil lever:

1. Remove choke cover.
2. Place fast idle cam follower on highest step of fast idle cam.
3. Push up on choke coil lever to close choke valve.
4. Insert .12 inch plug gauge, Fig. 9.
5. Bend choke rod as necessary so lower edge of lever just contacts gauge.
