Test Description
For the following tests, refer to
Speed Control Wiring Diagrams. Prior to performing any tests, ensure servo or valve body and electronic module are properly tested.

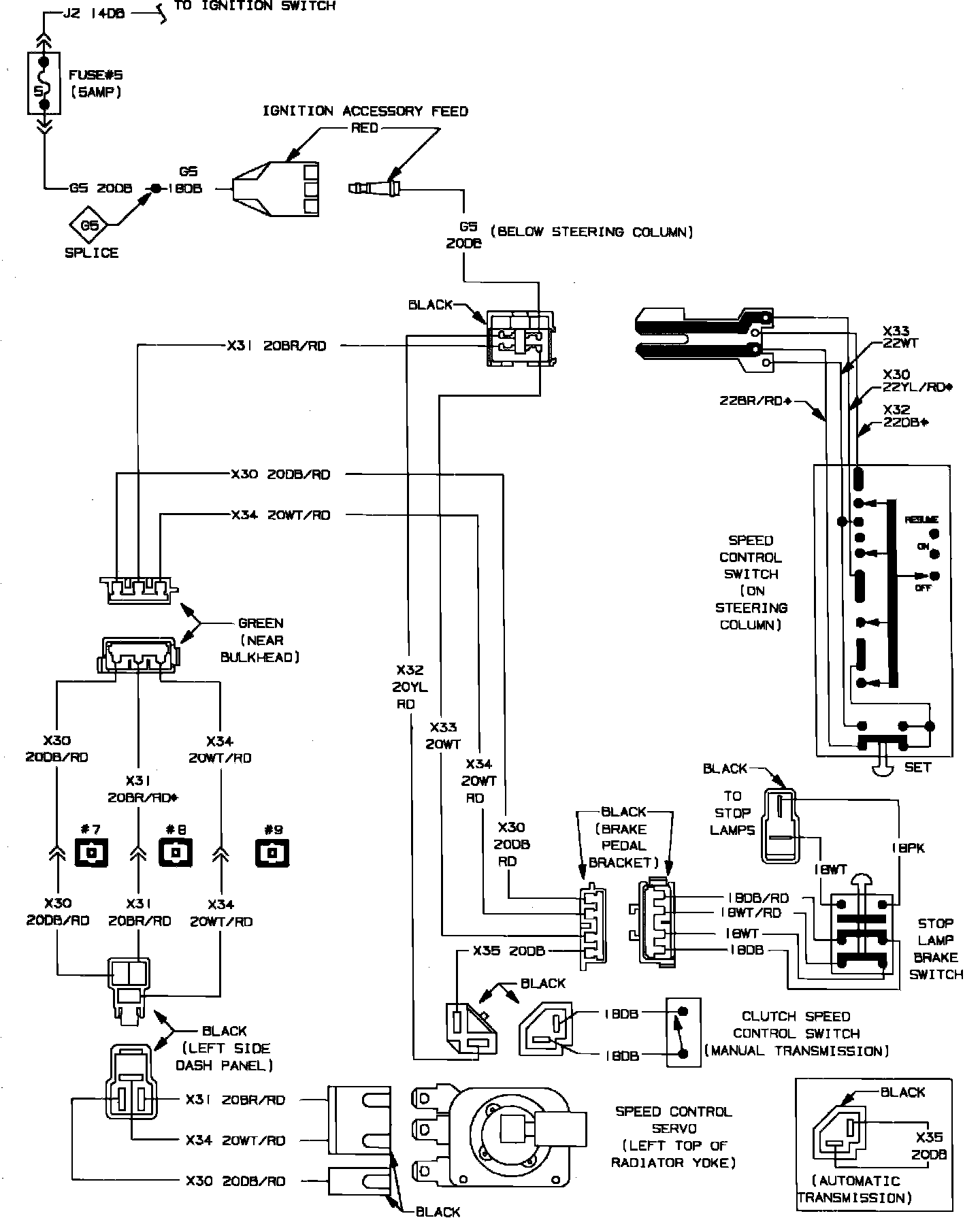

Fig. 11 Speed control wiring diagram. 1987 rear wheel drive Ram Van & Wagons:
