Front End Alignment - Specification Correction

88chrysler10

The caster specification shown in the 1987 and 1988 Ram 50 Pickup Service Manual is incorrect. The correct specification for caster is 2~ 30" +/- 1~. Please make a note of the correct * specification in your manuals as indicated in the charts below:
Asterisks specify changes


Manual Pub. No. Applicable page

1987 IMPORT SERVICE MANUAL
81-370-7015 Page 2-5, 2-14
RAM50 Vol. 1

1988 IMPORT SERVICE MANUAL
81-370-8017 Page 2-5, 2-14
RAM50 Vol. 1

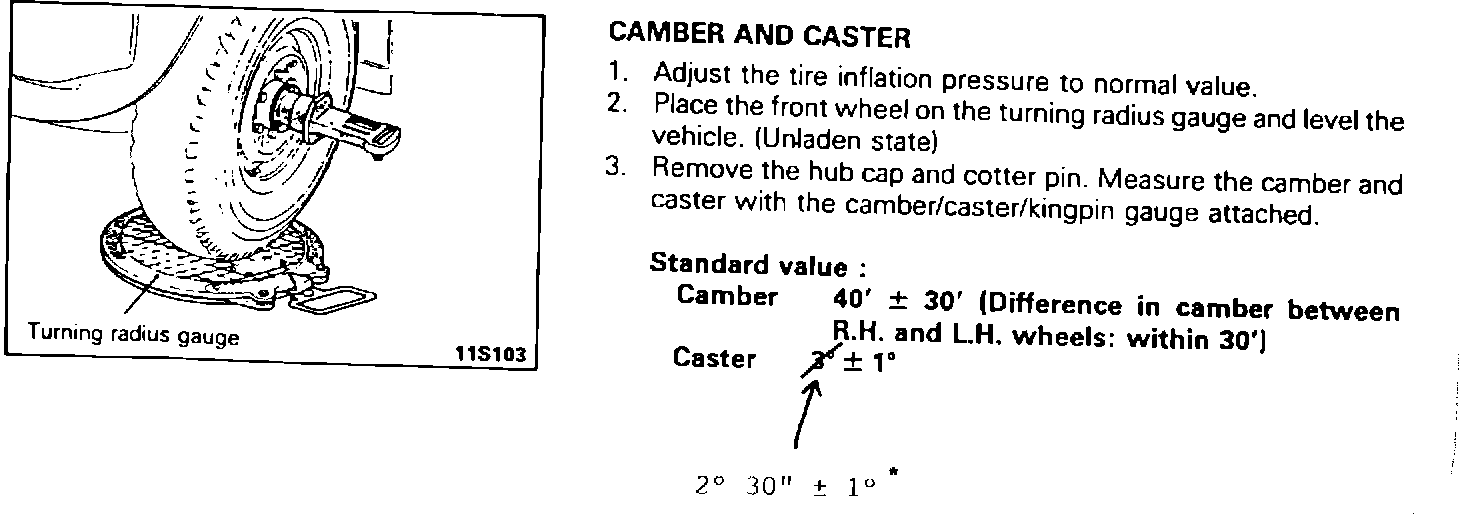

Page 2-5 of 1987 Ram 50 Service Manual (81-370-7015)*
Models


1987-88 "SP" Pickup Trucks


Subject


Front End Alignment Caster specification - Service Manual Correction


Index -


FRONT SUSPENSION


Date

August 15, 1988

No.


02-01-88

P-3252

(C02-02)

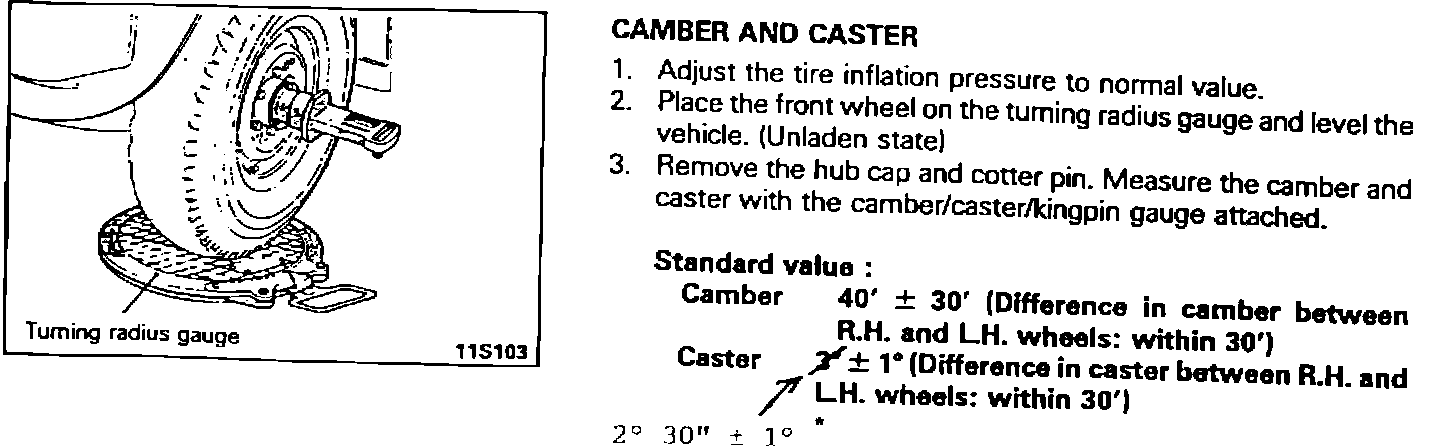

Page 2-5 0f 1988 Ram 50 Service Manual (81-370-8017)*



Page 2-14 of 1987 Ram 50 Service Manual (81-370-7015)*



Page 2-14 of 1988 Ram 50 Service Manual (81-370-8017)*
POLICY: Information only
