Distributor Cap: Service and Repair

DISTRIBUTOR CAP

Removal

Pick-Up Lead Connector And Splash Shield:

1. Remove splash shield retaining screws.

Splash Shield:

2. Remove splash shield.

Distributor Cap Retaining Screws:

3. Loosen distributor cap retaining screws.

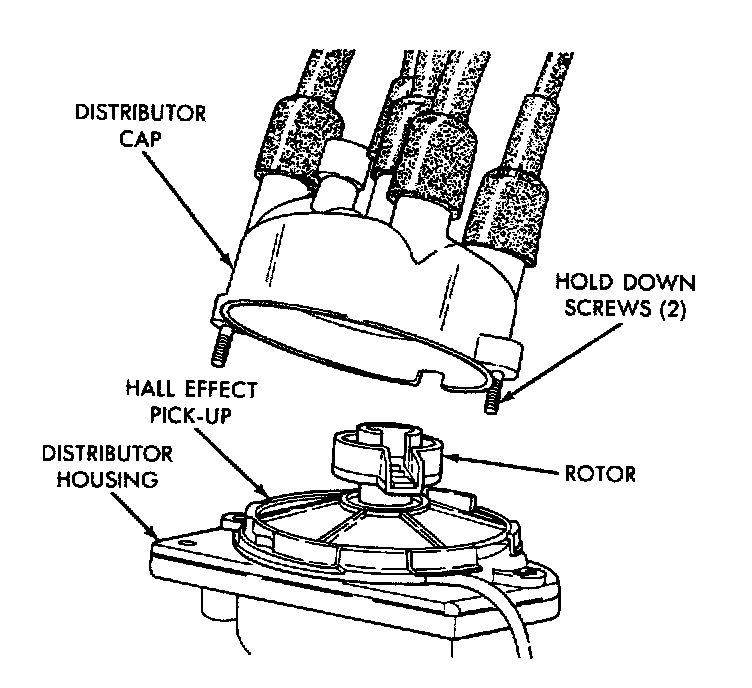

Distributor Cap:

4. Lift off distributor cap.

Installation

Distributor Cap:

1. Install the distributor cap (make sure all high tension wires snap firmly in the cap towers).

Distributor Hold Down 2.2L Engine:

2. Install hold-down arm screw and tighten finger tight.

Splash Shield:

Pick-Up Lead Connector And Splash Shield:

3. Install splash shield.
