Hall Effect Pick-Up Assembly

HALL EFFECT PICK-UP ASSEMBLY REPLACEMENT (2.2L Engine)

REMOVAL

1. Remove shield and cap. See Distributor Removal 2.2L Engine.
Removal and Installation

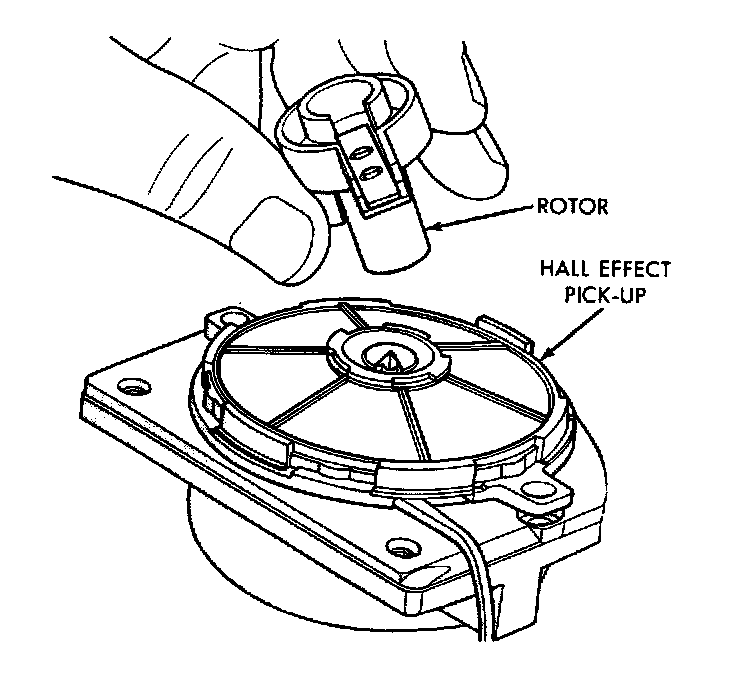

Ignition Rotor - 2.2L Engine:





2. Remove rotor from shaft.

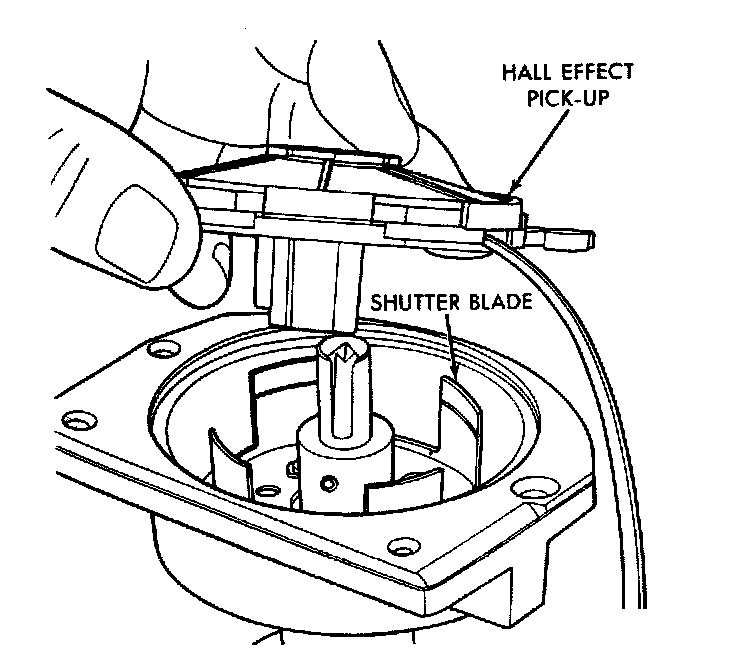

Hall Effect Pick-Up Assembly - 2.2L Engine:





3. Remove Hall effect pick-up assembly.

INSTALLATION

Hall Effect Pick-Up Assembly - 2.2L Engine:





1. Place Hall Effect Pick-up Assembly into disbutor housing.

Hall effect pick-up assembly leads may be damaged if not properly reinstalled.

Ignition Rotor - 2.2L Engine:





2. Install rotor.

3. Install cap and shield. See Distributor Installation 2.2L Engine.
Removal and Installation
