Subframe: Service and Repair

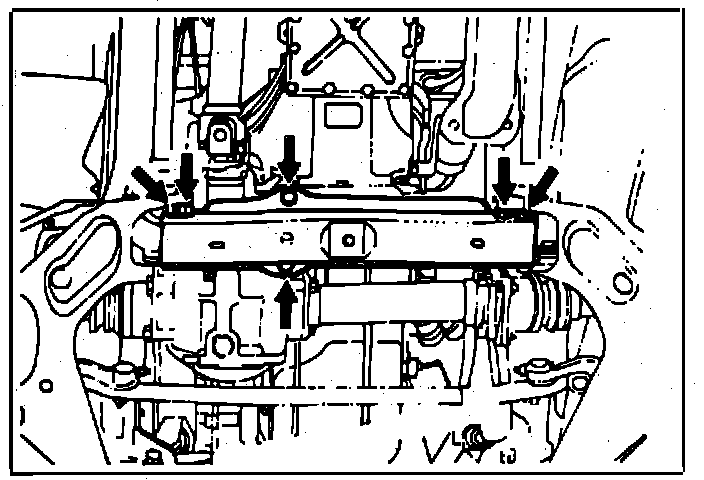

Fig. 4 Location of Front Suspension Crossmember Bolts:

4WD Models

1. Install suitable jack under differential carrier.
2. Remove front suspension crossmember from differential carrier assembly and from support bracket of side frame.
3. Reverse procedure to install. Tighten front suspension crossmember to support bracket of side frame bolt and front suspension crossmember to bracket bolt to specification.
