Transmission Specifications - Service Manual Corrections
87chrysler9Models
1987 SJ (Raider)
Subject
Transmission Specifications - Service Manual Corrections
Index
TRANSMISSION
Date
March 30, 1987
No.
21-07-87 (C8-21)
P-1070
Incorrect specifications in the 1987 Ram Raider Service Manual, Volume 1 (publication #81-370-7016) require correction. The three pages involved are as follows:
Group 21 - Transmission - Page 21-10
Step 5, Quantity, should read: "2.2 Lit." instead of "12.2 Lit."
Group 21 - Transmission - Page 21-93
Selector hand mounting screw torque should read: "1.4 Ft.Lbs.." instead of "0.4 Ft.Lbs."
Group 21 - Transmission - Page 21-109

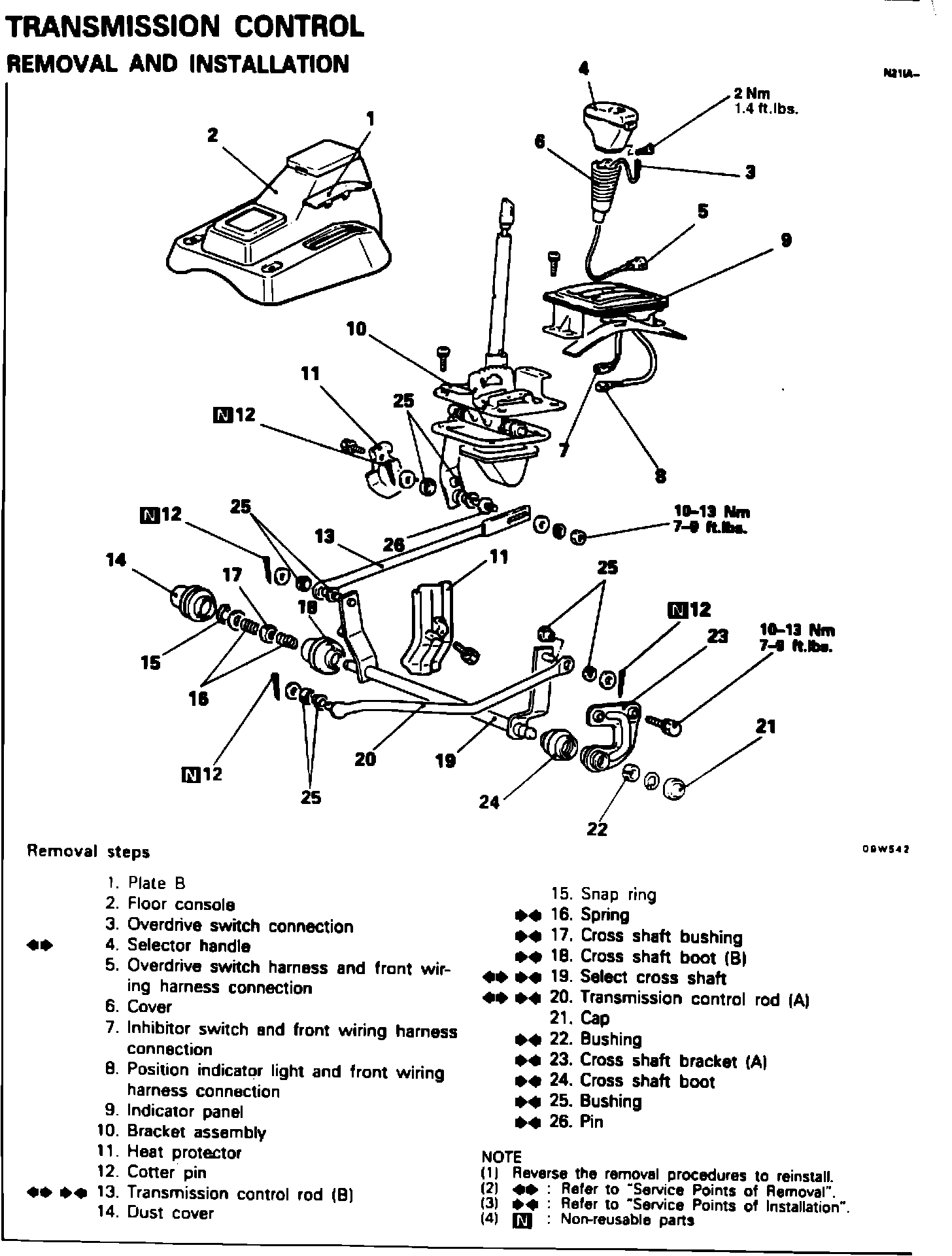

^ Transmission Control - removal and installation (illustration). Item should read: "1.4 Ft.Lbs." instead of ".4 Ft.Lbs."
NOTE: PLEASE PASTE, STAPLE, OR TAPE NEW PAGES IN PROPER PLACE.
POLICY: Information only
Revised TSB 21-07-87
March 30, 1987
21 -10 MANUAL TRANSMISSION - Service Adjustment Procedures
SERVICE ADJUSTMENT PROCEDURES N21FFAA
CHANGING AND INSPECTION OF TRANSMISSION AND TRANSFER OIL
1. Raise vehicle on hoist
2. Remove the filler plug from the transmission or transfer and check that the transmission oil is up to the oil level. If it is lower, replenish specified transmission oil to the oil level and if it is higher, drain transmission oil as described below.
3. Remove drain plug to let oil drain.
4. Tighten the drain plug completely.
5. Replenish the specified transmission oil to the level.
Specified transmission oil : MOPAR Hypoid Gear Oil Part No. 3744994 or equivalent
Quantity :
Transmission 2.2 lit. (4.7 U.S.pints., 3.9 Imp.pints.) Transfer case 2.2 lit. (4.7 U.S.pints., 3.9 Imp.pints.)
6. Tighten the filler plug.
REPLACEMENT OF PROPELLER SHAFT OIL SEALS N21PGAA
(1) Using a screwdriver or a similar tool, remove the oil seals.
(2) Install the oil seals.
Caution Use a new oil seal.
(3) Apply a coating of the specified grease to the lip of the oil seals.
Specified grease : MOPAR Multi-Mileage Lubricant Part No. 2525035 or equivalent
Revised TSB 21-07-87
March 30, 1987
AUTOMATIC TRANSMISSION - Transmission Control 21-109
Revised TSB 21-07-87
March 30, 1987
AUTOMATIC TRANSMISSION - Specifications 21-93
TORQUE SPECIFICATIONS N21CC
Items N-m Ft.lbs.
Transmission
Converter housing installation bolt
10 mm (.39 in.) dia. bolt 27-42 20-30
12 mm (.47 in.) dia. bolt 48-68 35-49
Oil pump assembly installation bolt 18-25 13-18
Oil pump body and cover-tightening bolt 6-9 4.3-6.5
Center support installation bolt 24-28 17-20
Adapter installation bolt 27-42 20-30
Cover plate installation screw 6-9 4.3-6.5
All bolts of valve body 5-6 3.6-4.3
Throttle cam installation bolt 6-9 4.3-6.5
Valve body assembly installation bolt 8-12 5.8-9
Oil screen installation bolt 5-6 3.6-4.3
Parking cam plate installation bolt 6-9 4.3-6.5
Oil pan installation bolt 4-5 2.9-3.6
Union 20-30 14-22
Elbow connector 20-30 14-22
Plug (for hydraulic test) 6-9 4.3-6.5
Oil pan drain plug 18-23 13-17
Overdrive solenoid valve installation bolt 10-16 7-12
Plug 10-16 7-12
Manual lever installation nut 14-18 10-13
Transmission control rod (B) to pin 10-13 7-9
Cross shaft bracket (A) to body 10-13 7-9
Transmission control arm to bracket 18-24 13-17
Transmission oil cooler eye bolts 30-35 22-25
Oil filler tube to transmission 20-27 14-20
Rear propeller shaft to rear differential 50-60 36-43
Front exhaust pipe mounting bolt 20-30 15-22
Bell housing cover to transmission 10-12 7-9
No. 2 crossmember to body 55-75 40-54
Rear engine support member to body 10-13 7-9
No. 2 crossmember to transmission 18-25 13-18
Transmission to starter motor 43-55 31-40
Transmission to engine A, B 43-55 31-40
D 20-27 14-20
Torque converter to drive plate 35-42 25-30
Selector handle mounting screw 2 1.4
Transmission oil cooler tube flare nut 40-50 29-36
