Window Regulator: Service and Repair

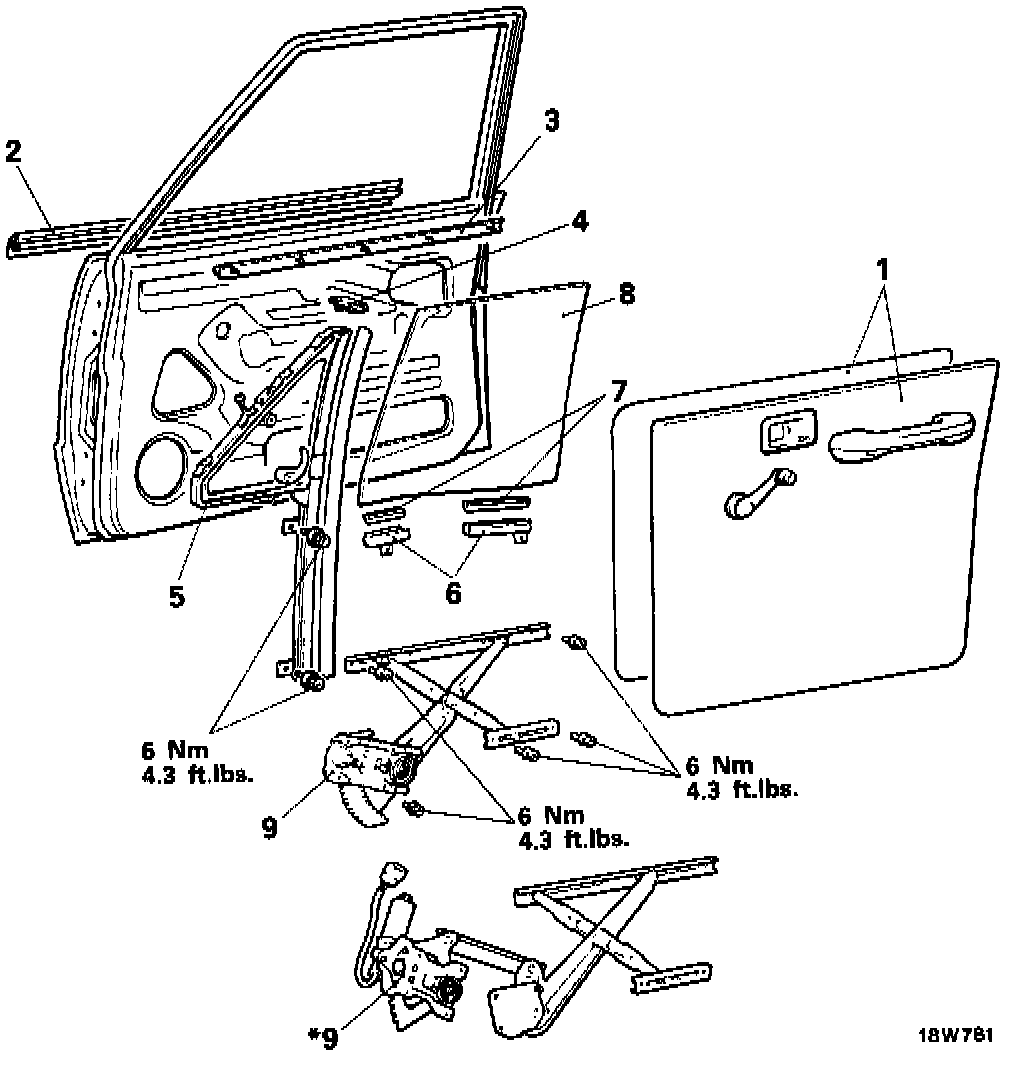

REMOVAL STEPS
1. Door trim and waterproof film Adjustment of door window glass
2. Outer weatherstrip
3. Inner weatherstrip
4. Center sash protector Adjustment of ventilator window assembly
5. Ventilator window assembly
6. Glass holder
7. Door glass pad
8. Door window glass
9. Window regulator

NOTES:
1. Reverse the removal procedures to reinstall.
2. * - Vehicles with a power window.

SERVICE POINTS OF REMOVAL
1. Removal Of Door Trim And Waterproof Film
Refer to Door Panel/Service and Repair





2. Removal Of Outer Weatherstrip
a. Remove the outer weatherstrip from the fixing clips by prying upward with a screwdriver.
b. Remove the outer weatherstrip rearward.

9. Removal Of Window Regulator
Vehicles with a Power Window





CAUTION: Because the force of the regulator spring may cause the regulator arm to jump up when the screws attaching the motor to the window regulator are removed, remove the regulator spring before removing the screws.

SERVICE POINTS OF INSTALLATION

9. Installation Of Window Regulator
Vehicles without a Power Window Apply a coating of multipurpose grease to the sliding parts and rotating parts of the window regulator. Vehicles with a Power Window

When assembling the window regulator and power window motor, first install the regulator spring, and then proceed with assembly.





8. Installation Of Door Window Glass
When the door glass has been removed from the glass holder, install to the position shown in illustration.

Standard value:
Distance X 466.5-67.5 mm (18.36-18.4O6 in.)
Distance V 76.5-77.5 mm (3.012-3.051 in.)
