Step A

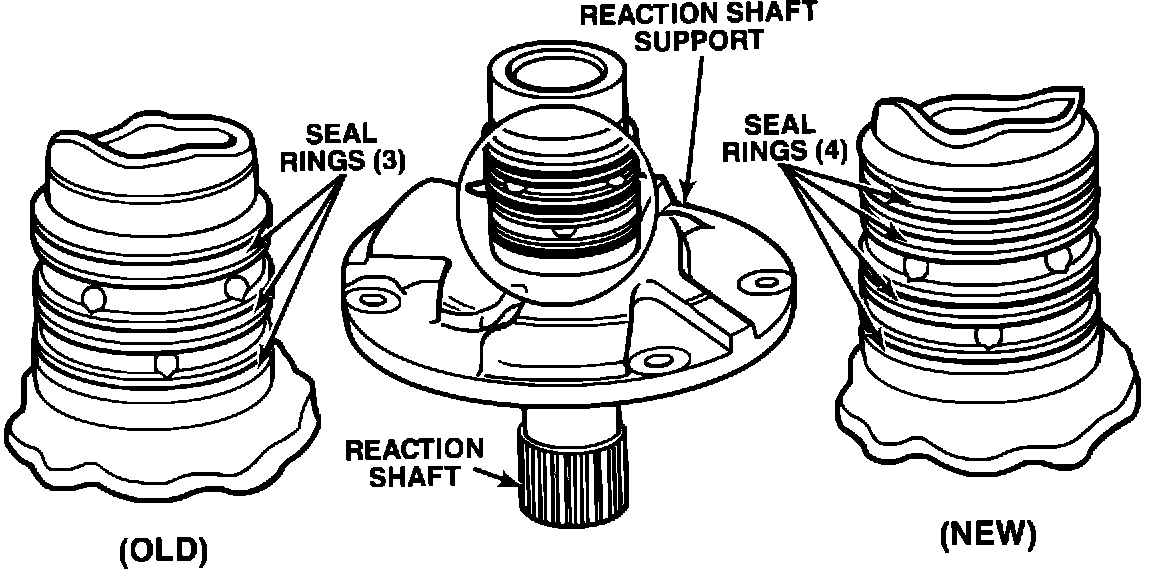

FIGURE 1 - FRONT PUMP REACTION SHAFT:
1.
Inspect the front pump reaction shaft support. If the reaction support has three ring grooves, replace it with the four ring reaction support supplied in the repair package (Figure 1). If the reaction support that is removed from the transaxle has four ring grooves, the repair package is not needed.
