Cruise Control Module: Service and Repair

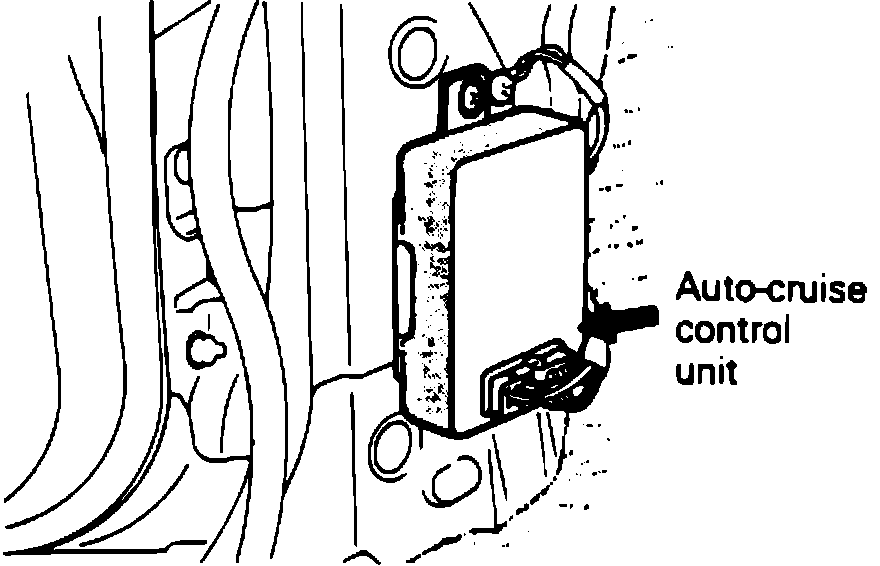

Fig. 10 Auto-cruise Control Relay Replace:
1.
Disconnect battery ground cable.
2.
Locate auto-cruise control unit below lefthand side of instrument panel.
3.
Disconnect electrical connector from unit.
4.
Remove mounting screw with grounding strap from top of unit.
5.
Slide auto-cruise control unit from mount.
