Power Window Regulator Replacement

*** THIS ARTICLE HAS BEEN UPDATED BY TSB # 23-29-93 DATED JUNE 4, 1993

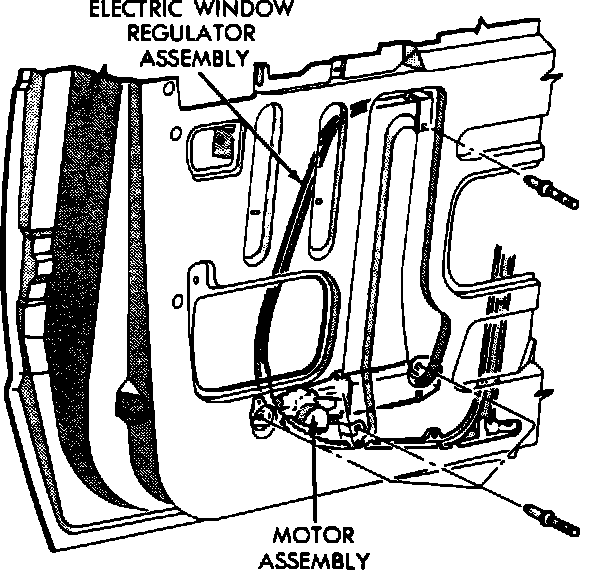

Power Window Regulator Assembly:





REMOVAL
1. Remove trim panel and door liner. Service and Repair
2. Remove the front door glass. Service and Repair
3. Drill out the five (5) rivets holding the power door regulator to the door.
4. Remove two (2) screws at the door sill.
5. Remove the power window regulator by rotating it out of the door.



INSTALLATION
1. Install the power window regulator by rotating it as it is installed.
2. Install the two (2) screws at the door sill.

Window Regulator Tightening Sequence:




3. Install five (5) 1/4-20 X 1/2 screws in place of the rivets that were drilled out for removal. Using the sequence shown, torque the screws to 90 lb-in (11 Nm).
4. Install the front door glass. Service and Repair
5. Install the door liner and door trim panel. Service and Repair
