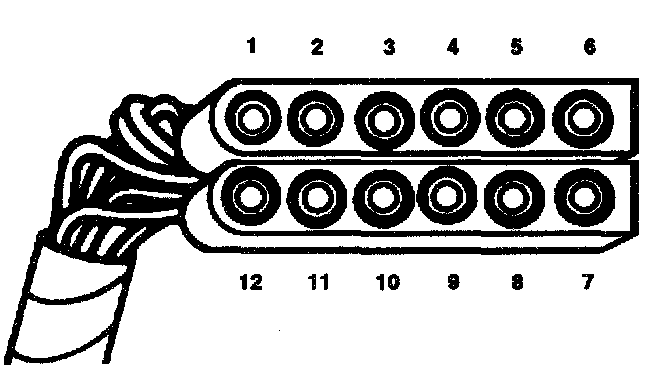

EVIC (Engine Node) 12 Way Connector
CAV CIRCUIT FUNCTION1
Z02 BK/LG
Electronic Ground
2
Not Used
3
G15 GY/RD
Low Brake Fluid Level Sensor
4
C27 DB/PK
Cooling Fan Relay
5
Not Used
6
G18 PK/BK
Low Engine Coolant Level Switch
7
DO1 VT/BR
Serial Data Bus (+)
8
D02 WT/BK
Serial Data Bus (-)
9
Not Used
10
G36 BR/GY
Low Engine Oil Level Switch
11
F12 DB/WT
Engine Node Power Feed
12
Not Used
