System Specifications


ELECTRONIC SPARK ADVANCE

Transmission RPM Degrees of Total Advance

Manual 2000 33~ +/- 4~


IGNITION TIMING

Basic Timing 12~ BTDC +/- 2~ @ 900 RPM



RESISTANCE VALUES

Ignition Coil Primary Resistance:

21-27~C (70-80~F) 0.52-0.63 ohms

Ignition Coil Secondary Resistance:
21-27~C (70-80~F) 11,600-15,800 ohms


Ignition Cables:
Per Inch Min. 250 ohms, Max. 600 ohms
Per Foot Min. 3000 ohms, Max. 7200 ohms



SPARK PLUGS

Gap .035 in. (0.9 mm)






FIRING ORDER

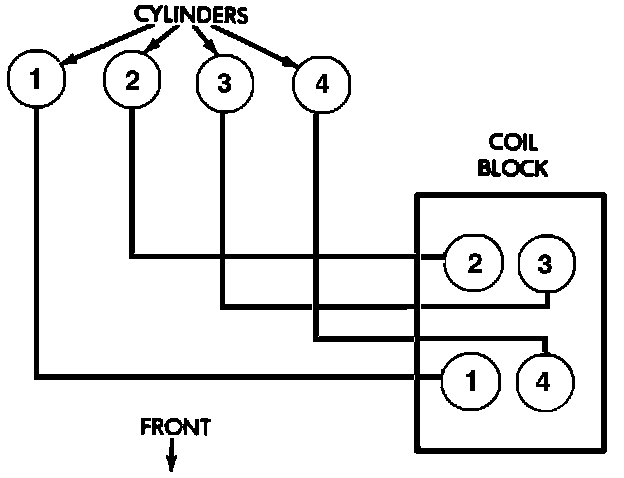

Spark Plug Wire Routing:
