Manifold Pressure/Vacuum Sensor: Service and Repair

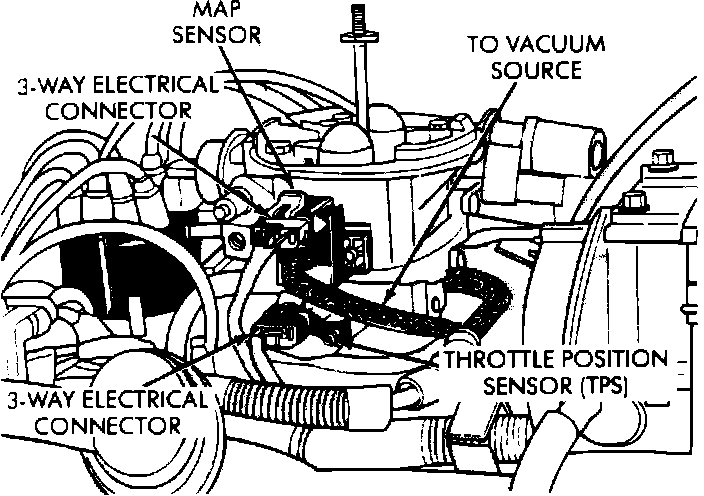

Manifold Absolute Pressure (MAP) Sensor:
REMOVAL/INSTALLATION 1.
Remove air cleaner.
2.
Remove vacuum hose and electrical connector from sensor.
3.
Remove sensor mounting screws and remove sensor.
4.
Reverse the above procedure for installation. Check the vacuum hose and electrical connections to the sensor.
