Generator Replacement
1.
Disconnect and isolate battery ground cable.
2.
Proceed as follows:
a.
Remove A/C suction hose clamp nut, then position hose out of the way.
b.
Remove righthand bank catalytic converter.

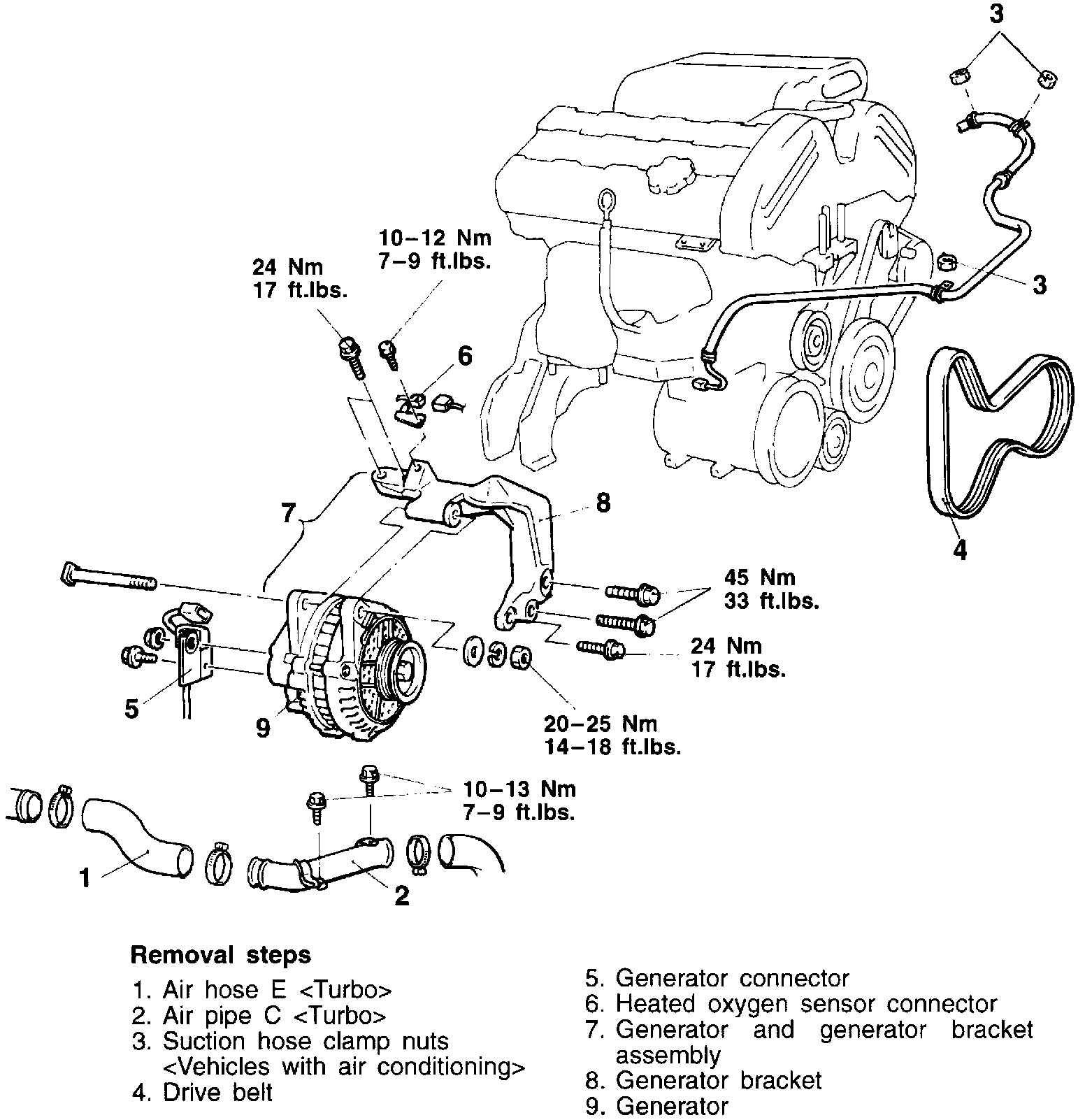

Fig. 1 Alternator Removal:
c.
Remove or disconnect all items shown.
3.
Take out the generator from behind the surge tank at the center of the vehicle.
4.
Reverse procedure to install
