Adjust rear toe-in after rear camber has been adjusted. On models equipped with 4WS, disconnect 4WS tie rod end from trailing arm prior to making adjustments.

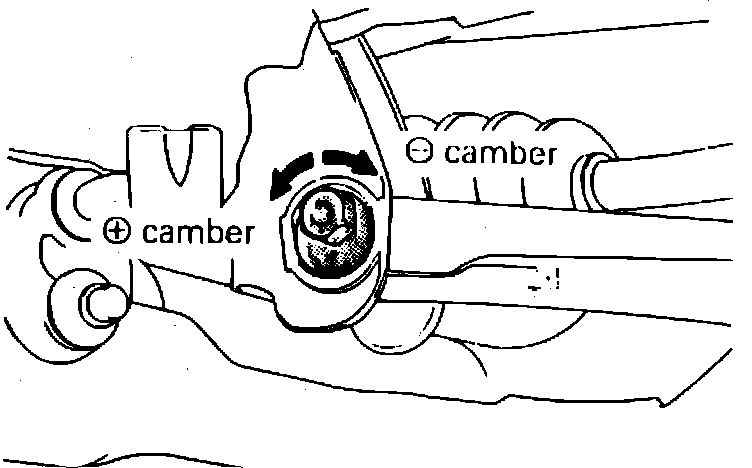

Fig. 2 Rear Camber Adjustment:

Camber

To adjust camber, turn lower control arm mounting bolt on the crossmember side. At the left wheel turn the mounting bolt clockwise to indicate negative camber, at the right wheel turn the mounting bolt right to indicate positive camber. One graduation changes camber by about 0.2°. Adjust eccentric cam bolt within 90° from central position.

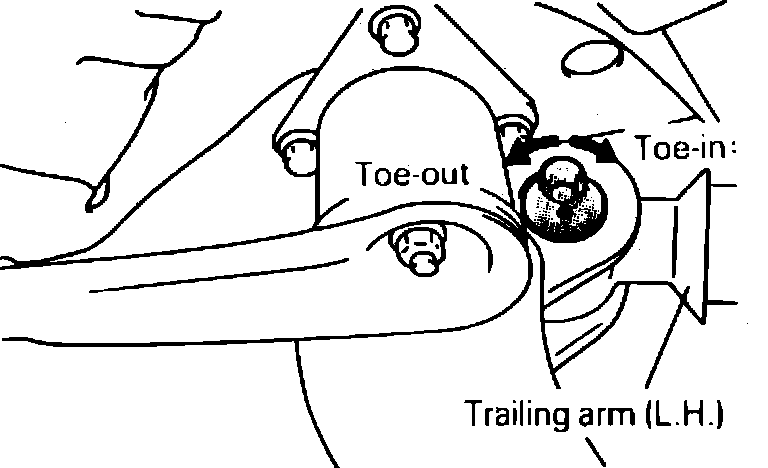

Fig. 3 Rear Toe-in Adjustment:

Toe-In

To adjust toe-in, turn right and left trailing arm mounting bolts on the crossmember side, the same amount. At the left wheel turn the mounting bolt clockwise to indicate toe-in, at the right wheel turn the mounting bolt clockwise to indicate toe-out. One graduation changes toe by about 0.08 inch.
