Scan Tool Testing and Procedures

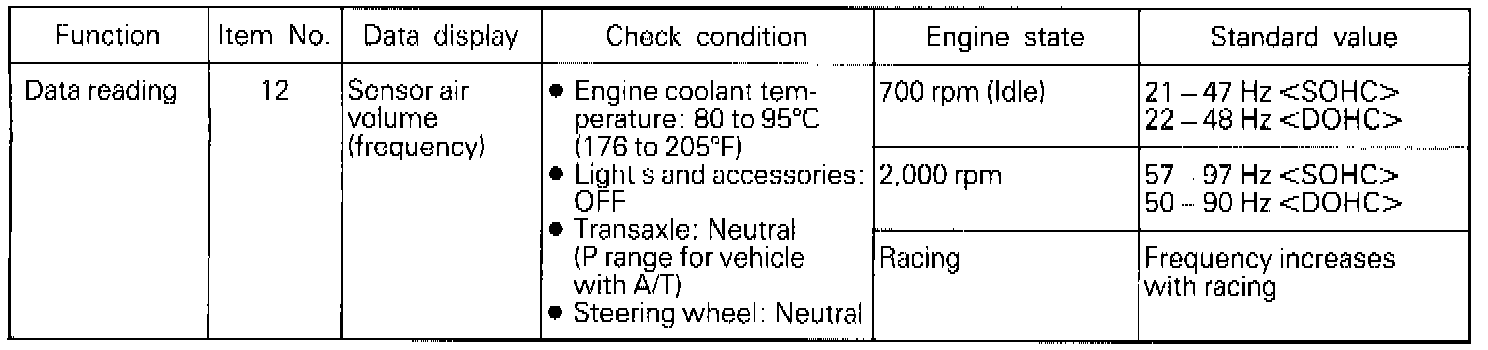

VOLUME AIR FLOW SENSOR NOTE: When the vehicle is new [within initial operation of about 500 km (300 miles)], the volume air flow sensor output frequency may be about 10% higher.

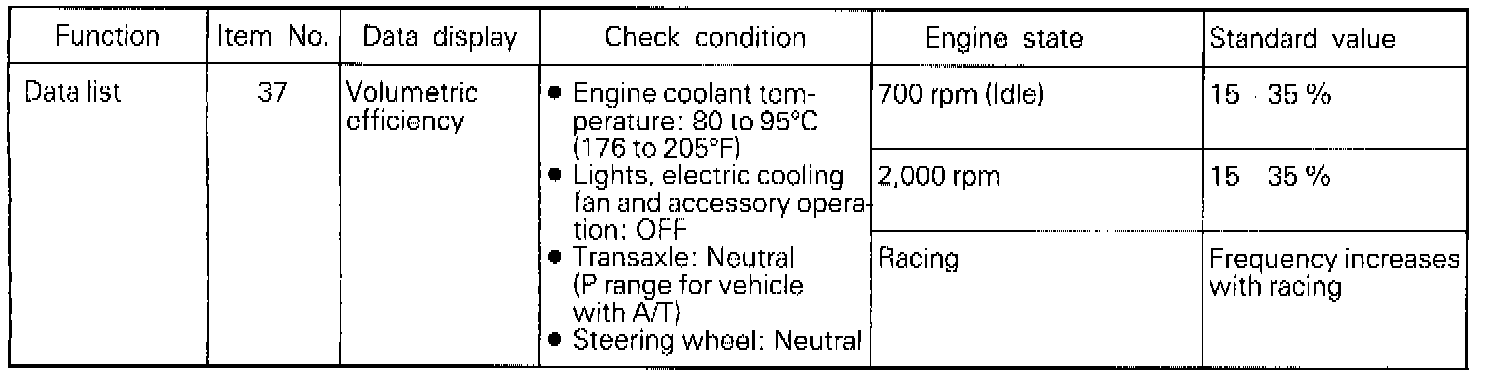

VOLUME AIR FLOW SENSOR RESET SIGNALVOLUMETRIC EFFICIENCY
