Component Tests and General Diagnostics

ECU Ground Circuit:





OPERATION
Grounds the Engine Control Module (ECM).

TROUBLESHOOTING HINTS
If the ground wire of the ECM is not securely connected to ground, the module will not operate correctly.

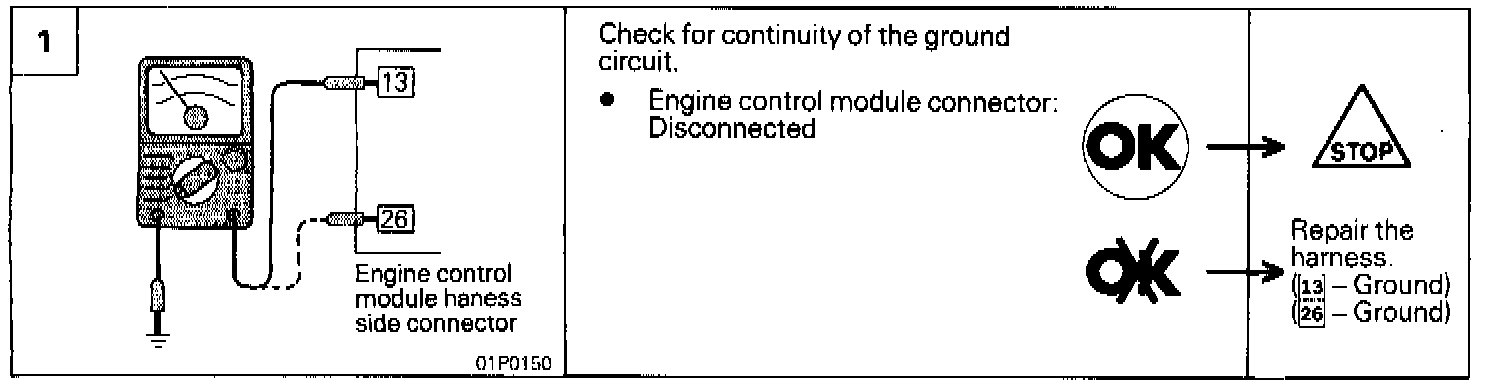

HARNESS INSPECTION
