Vehicle Speed Sensor Inspection
Vehicle Speed Sensor Inspection:
1.

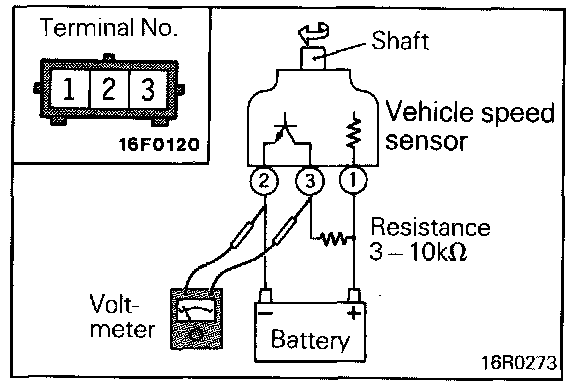

Remove the vehicles
speed sensor and connect as shown in the illustration, using a
3 - 10 kOhms resistance.
2.
Use a voltmeter to check for voltage at terminals 2 and 3 when the
pulse generator shaft is turning. (One revolution is four pulses.)
