Distributor Installation

Installation Of Distributor:

Installation Of Spark Plug Cable:

1. Turn the crankshaft so that the No.1 cylinder is at compression top dead center.
CAUTION:
Be careful not to turn it to the No.4 cylinder compression top dead center by mistake.

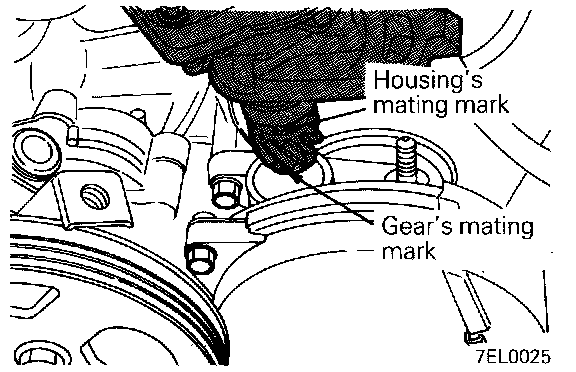

2. Align the distributor housing and gear mating marks.

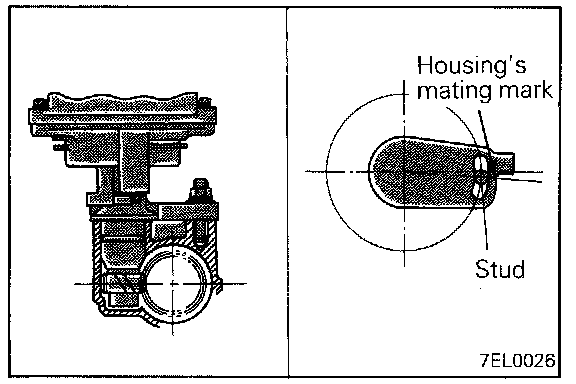

3 Install the distributor to the engine while aligning the distributor's installation flange with the center of the distributor installation stud.
