Window Regulator: Service and Repair

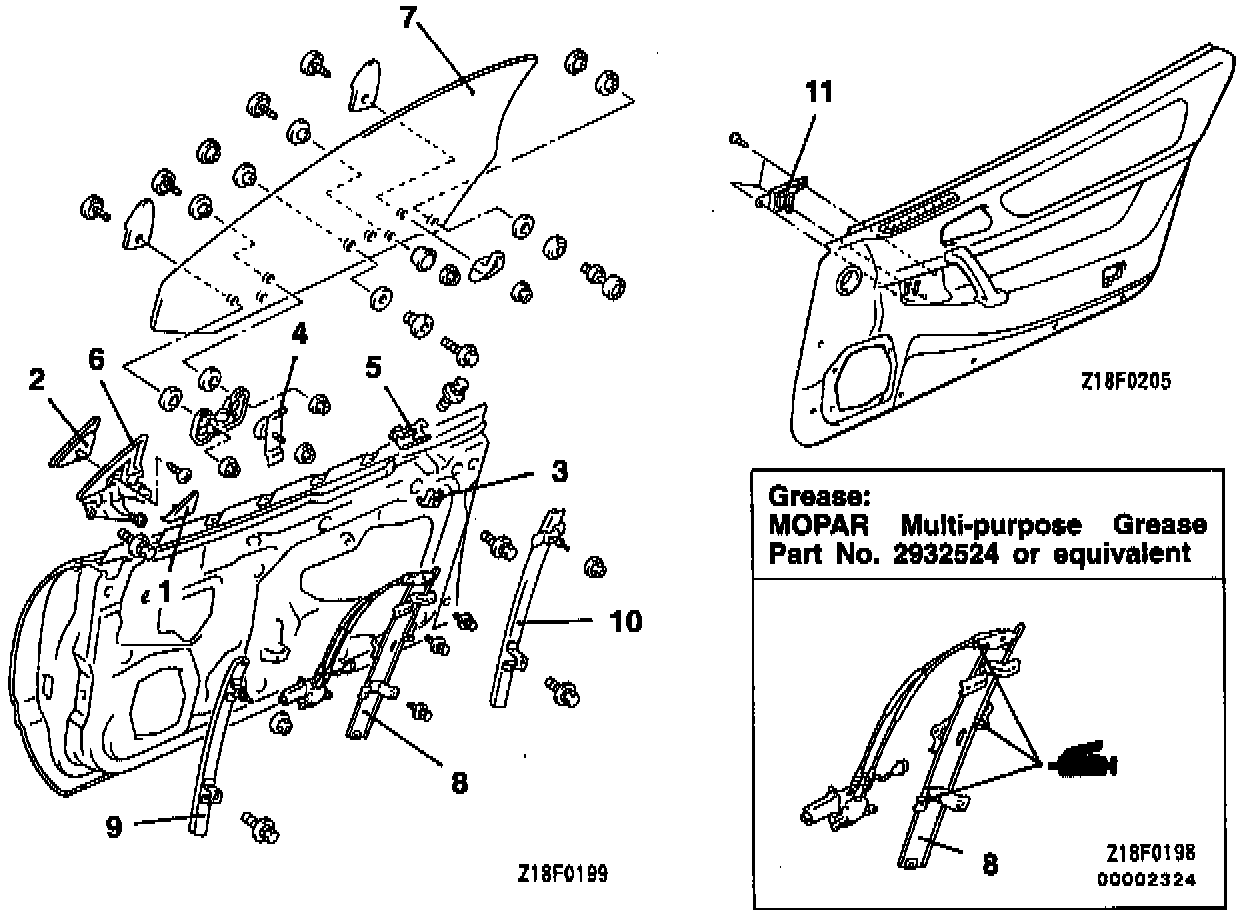

DOOR WINDOW REGULATOR ASSEMBLY REMOVAL STEPS
- Door trim
- Waterproof film
1. Delta cover inner
2. Delta cover outer
- Door belt line outer weatherstrip
3. Up stop
4. Stabilizer inner front
5. Stabilizer inner rear
6. Delta sash
7. Door window glass
8. Door window regulator assembly
9. Door glass guide track front
10. Door glass guide track rear

POWER WINDOW SWITCH ASSEMBLY REMOVAL STEPS
- Door trim
11. Power window switch assembly
