Sensor Read Tests Reference Table

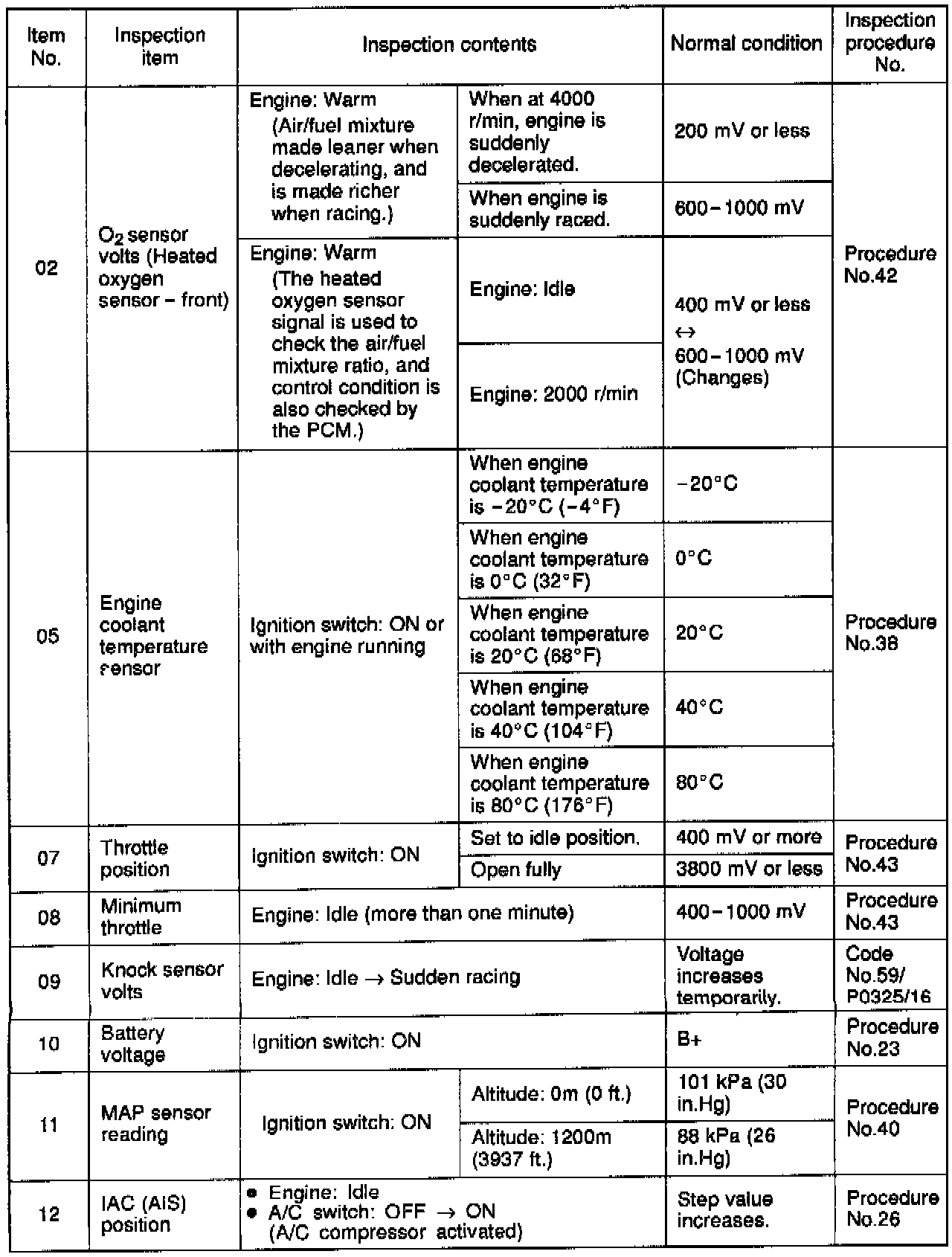

Part 1 Of 3:

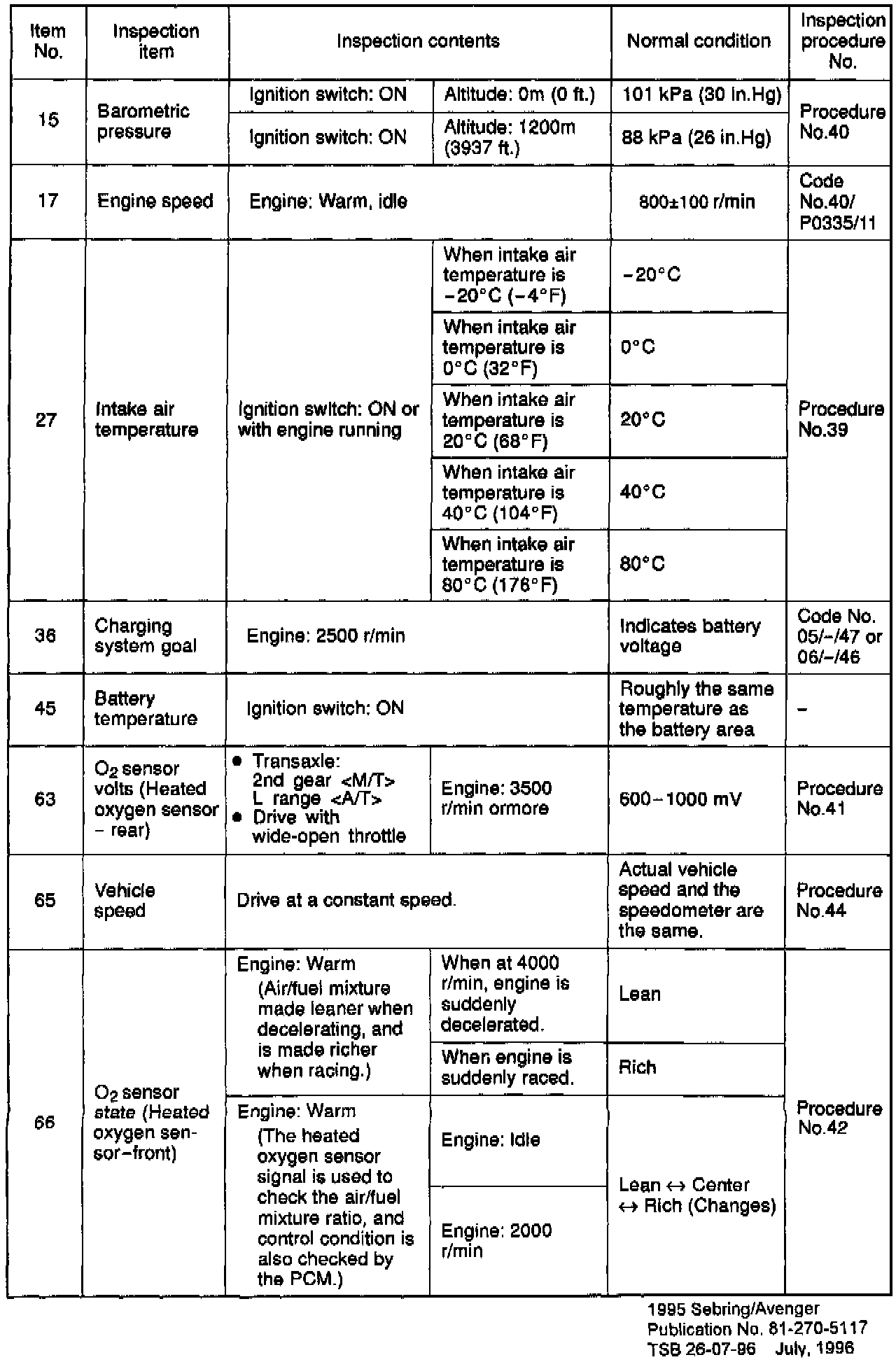

Part 2 Of 3:

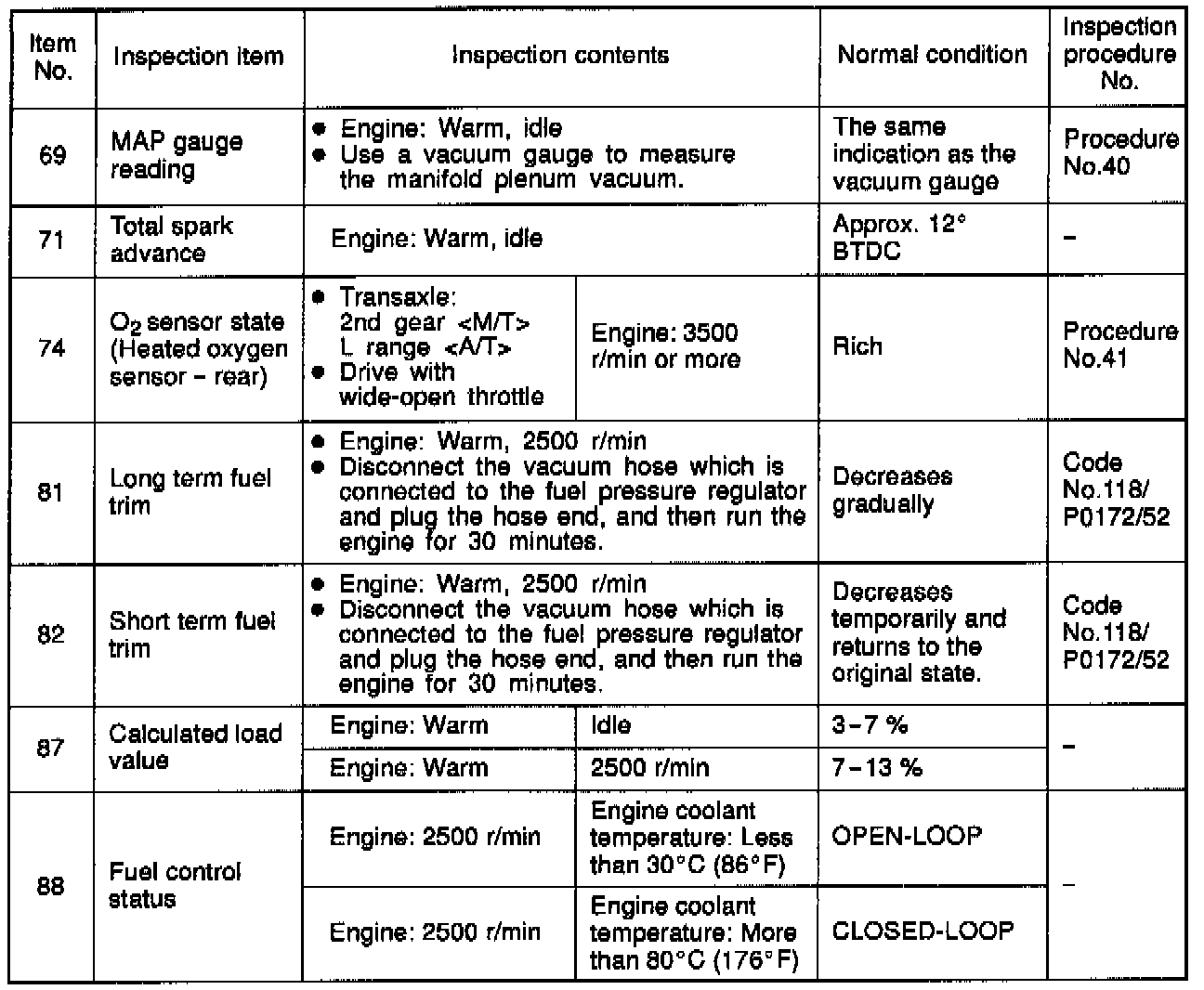

Part 3 Of 3:






CAUTION:
- When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
- When checking while driving the vehicle, always be sure to have two people riding in the vehicle.
