Seats: Service and Repair
1.
From under vehicle, remove nuts holding front seat risers to the floor.

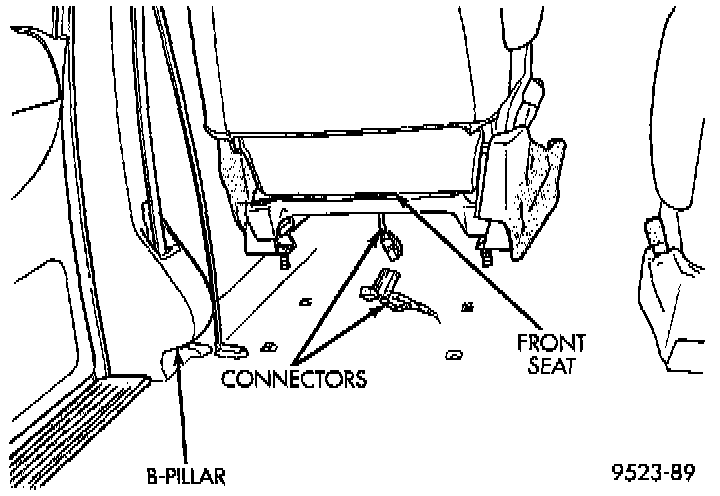

Front Seat:
2.
Separate seat and riser from floor.
3.
Tip seat rearward and disengage wire connectors from body harness, if equipped.
4.
Separate seat from vehicle.
5.
Reverse the preceding operation.
